| Fabricante | Diodes |
| Descripción | Flexible 0-10V Dimming Signal Interface Controller |
| Páginas / Página | 13 / 3 — AL8116. Functional Block Diagram. VCC. CLAMP. ISET. DIM. OUT. GND. Figure … |
| Formato / tamaño de archivo | PDF / 745 Kb |
| Idioma del documento | Inglés |
AL8116. Functional Block Diagram. VCC. CLAMP. ISET. DIM. OUT. GND. Figure 2. AL8116 Functional Block Diagram. www.diodes.com
Línea de modelo para esta hoja de datos
Versión de texto del documento

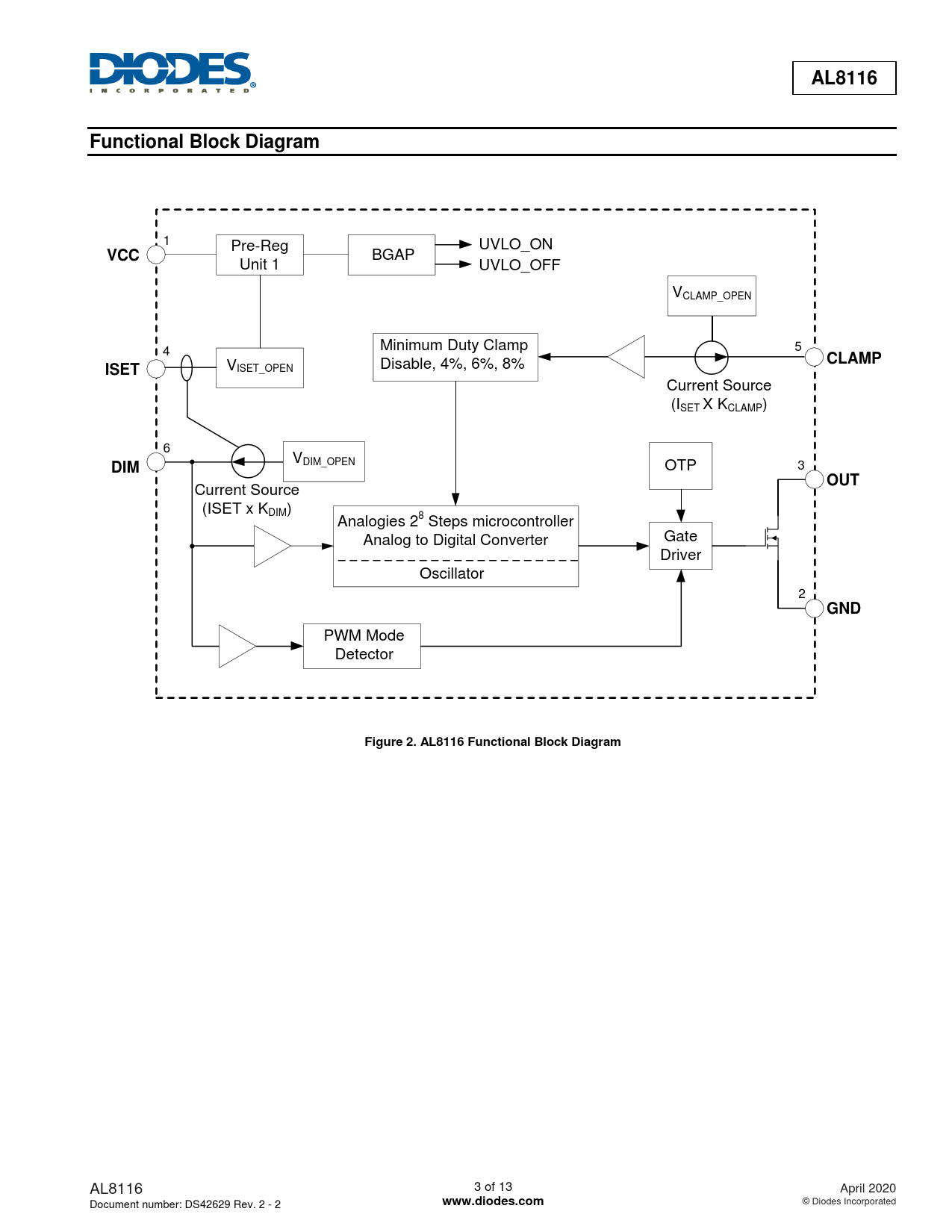

AL8116 Functional Block Diagram
1 Pre-Reg UVLO_ON
VCC
BGAP Unit 1 UVLO_OFF VCLAMP_OPEN Minimum Duty Clamp 4 5
CLAMP ISET
V Disable, 4%, 6%, 8% ISET_OPEN Current Source (ISET X KCLAMP) 6 V
DIM
DIM_OPEN OTP 3
OUT
Current Source (ISET x KDIM) Analogies 28 Steps microcontroller Gate Analog to Digital Converter Driver Oscillator 2
GND
PWM Mode Detector
Figure 2. AL8116 Functional Block Diagram
