Datasheet AL8116 (Diodes) - 2
| Fabricante | Diodes |
| Descripción | Flexible 0-10V Dimming Signal Interface Controller |
| Páginas / Página | 13 / 2 — AL8116. Typical Applications Circuit. AL1665. AL1666. Figure 1. AL8116 … |
| Formato / tamaño de archivo | PDF / 745 Kb |
| Idioma del documento | Inglés |
AL8116. Typical Applications Circuit. AL1665. AL1666. Figure 1. AL8116 Typical Application Circuit. Pin Descriptions. Pin Number
Línea de modelo para esta hoja de datos
Versión de texto del documento

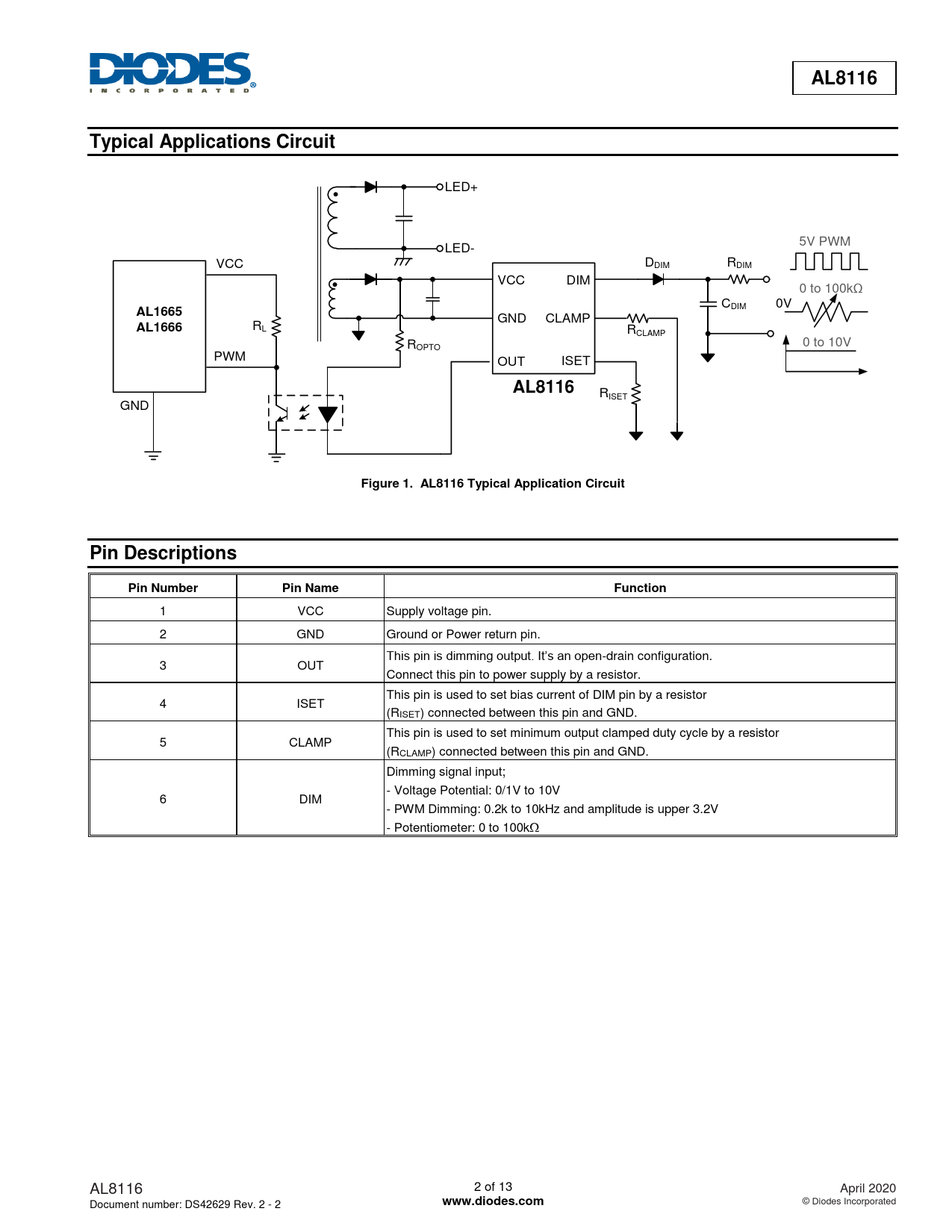

AL8116 Typical Applications Circuit
LED+ 5V PWM LED- VCC DDIM RDIM VCC DIM 0 to 100kΩ C 0V
AL1665
DIM GND CLAMP
AL1666
RL RCLAMP R 0 to 10V OPTO PWM OUT ISET
AL8116
RISET GND
Figure 1. AL8116 Typical Application Circuit Pin Descriptions Pin Number Pin Name Function
1 VCC Supply voltage pin. 2 GND Ground or Power return pin. This pin is dimming output. It’s an open-drain configuration. 3 OUT Connect this pin to power supply by a resistor. This pin is used to set bias current of DIM pin by a resistor 4 ISET (RISET) connected between this pin and GND. This pin is used to set minimum output clamped duty cycle by a resistor 5 CLAMP (RCLAMP) connected between this pin and GND. Dimming signal input; - Voltage Potential: 0/1V to 10V 6 DIM - PWM Dimming: 0.2k to 10kHz and amplitude is upper 3.2V - Potentiometer: 0 to 100k AL8116 2 of 13 April 2020 Document number: DS42629 Rev. 2 - 2
www.diodes.com
© Diodes Incorporated
