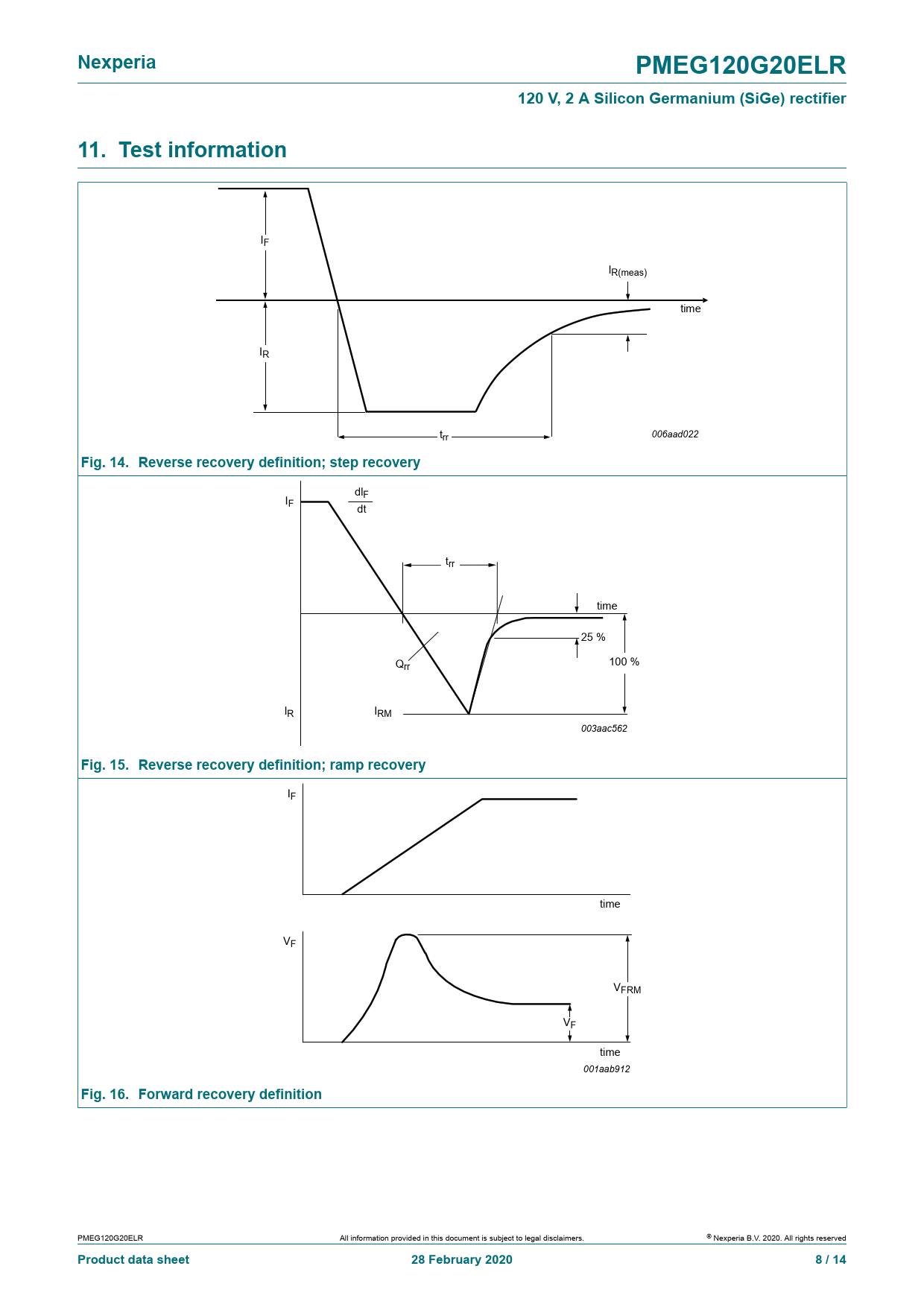

Nexperia PMEG120G20ELR 120 V, 2 A Silicon Germanium (SiGe) rectifier 11. Test information
IF IR(meas) time IR trr 006aad022
Fig. 14. Reverse recovery definition; step recovery
dl I F F dt trr time 25 % Q 100 % rr IR IRM 003aac562
Fig. 15. Reverse recovery definition; ramp recovery
IF time VF VFRM VF time 001aab912
Fig. 16. Forward recovery definition
