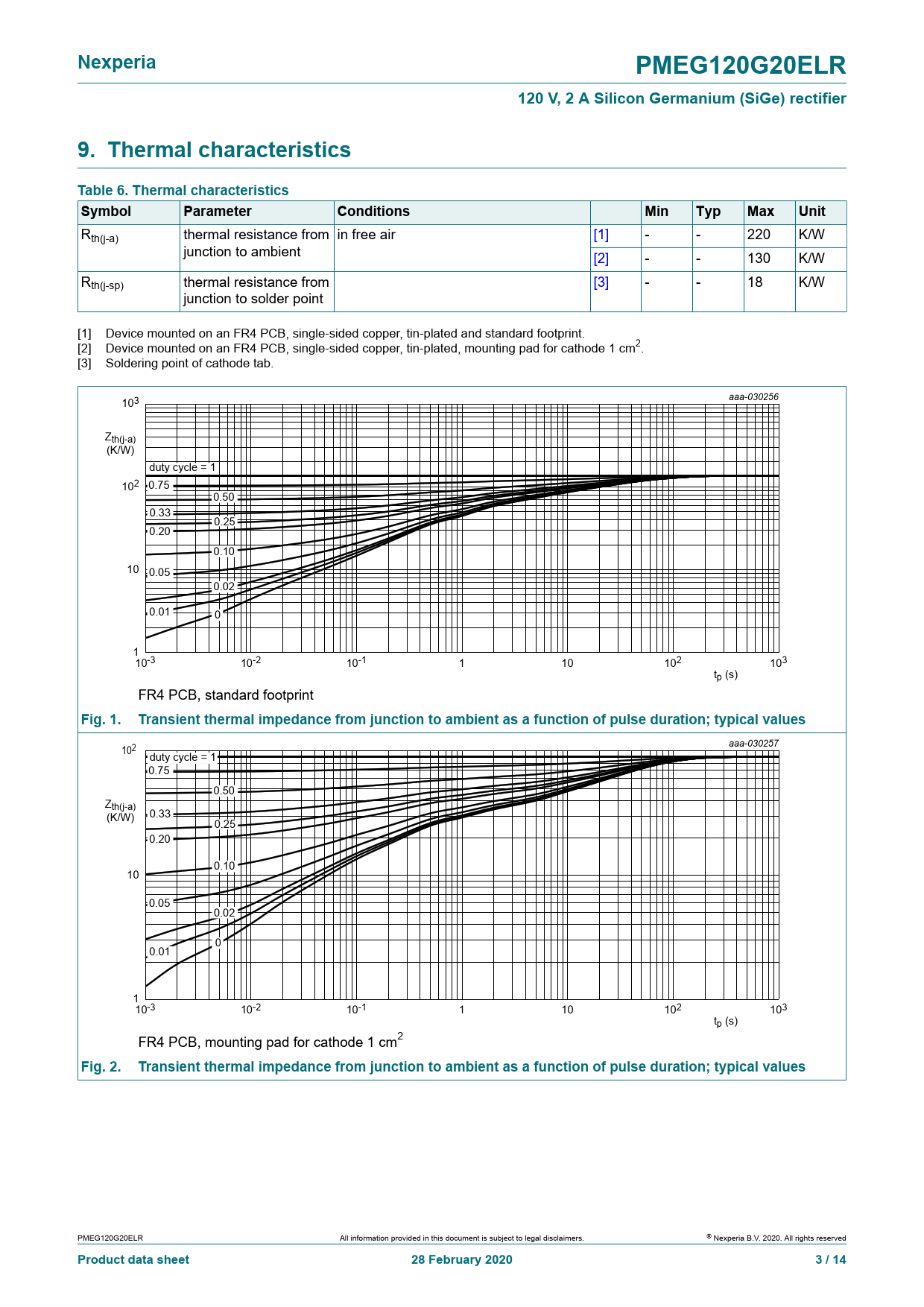

Nexperia PMEG120G20ELR 120 V, 2 A Silicon Germanium (SiGe) rectifier 9. Thermal characteristics Table 6. Thermal characteristics Symbol Parameter Conditions Min Typ Max Unit
Rth(j-a) thermal resistance from in free air [1] - - 220 K/W junction to ambient [2] - - 130 K/W Rth(j-sp) thermal resistance from [3] - - 18 K/W junction to solder point [1] Device mounted on an FR4 PCB, single-sided copper, tin-plated and standard footprint. [2] Device mounted on an FR4 PCB, single-sided copper, tin-plated, mounting pad for cathode 1 cm2. [3] Soldering point of cathode tab. aaa-030256 103 Zth(j-a) (K/W) duty cycle = 1 102 0.75 0.50 0.33 0.25 0.20 0.10 10 0.05 0.02 0.01 0 110-3 10-2 10-1 1 102 103 10 tp (s) FR4 PCB, standard footprint
Fig. 1. Transient thermal impedance from junction to ambient as a function of pulse duration; typical values
aaa-030257 102 duty cycle = 1 0.75 0.50 Zth(j-a) (K/W) 0.33 0.25 0.20 0.10 10 0.05 0.02 0 0.01 110-3 10-2 10-1 1 102 103 10 tp (s) FR4 PCB, mounting pad for cathode 1 cm2
Fig. 2. Transient thermal impedance from junction to ambient as a function of pulse duration; typical values
