Datasheet TIP31C (STMicroelectronics) - 3
| Fabricante | STMicroelectronics |
| Descripción | Power transistors |
| Páginas / Página | 10 / 3 — TIP31C. Absolute maximim ratings. Table 1. Symbol. Parameter. Value. Unit |
| Formato / tamaño de archivo | PDF / 140 Kb |
| Idioma del documento | Inglés |

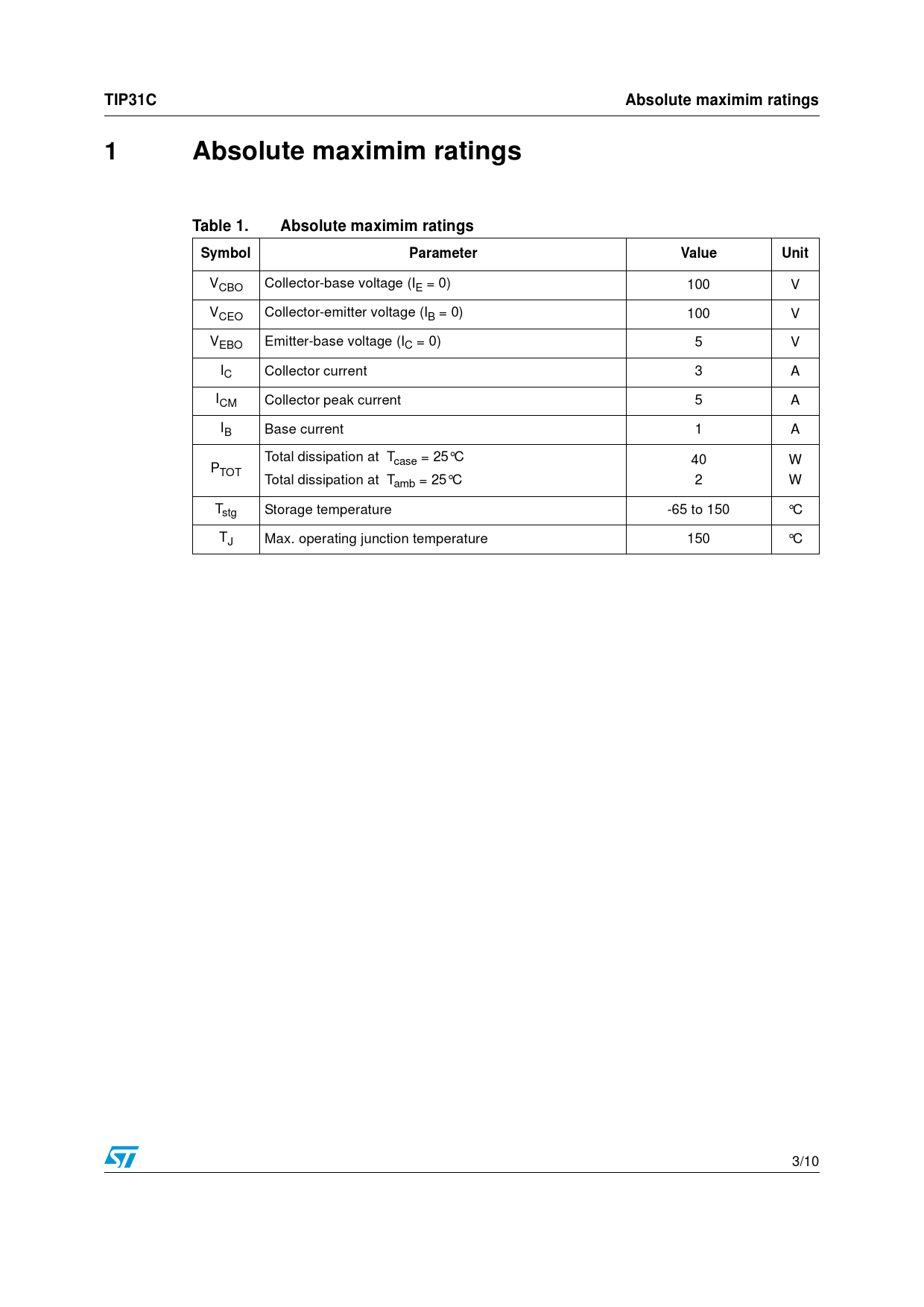

TIP31C. Absolute maximim ratings. Table 1. Symbol. Parameter. Value. Unit
Línea de modelo para esta hoja de datos
Versión de texto del documento
TIP31C Absolute maximim ratings 1 Absolute maximim ratings Table 1. Absolute maximim ratings Symbol Parameter Value Unit
VCBO Collector-base voltage (IE = 0) 100 V VCEO Collector-emitter voltage (IB = 0) 100 V VEBO Emitter-base voltage (IC = 0) 5 V IC Collector current 3 A ICM Collector peak current 5 A IB Base current 1 A Total dissipation at Tcase = 25°C 40 W PTOT Total dissipation at Tamb = 25°C 2 W Tstg Storage temperature -65 to 150 °C TJ Max. operating junction temperature 150 °C 3/10
