Data Sheet. ADuM5020/. ADuM5028

Data Sheet ADuM5020/ ADuM5028

Línea de modelo para esta hoja de datos

Versión de texto del documento

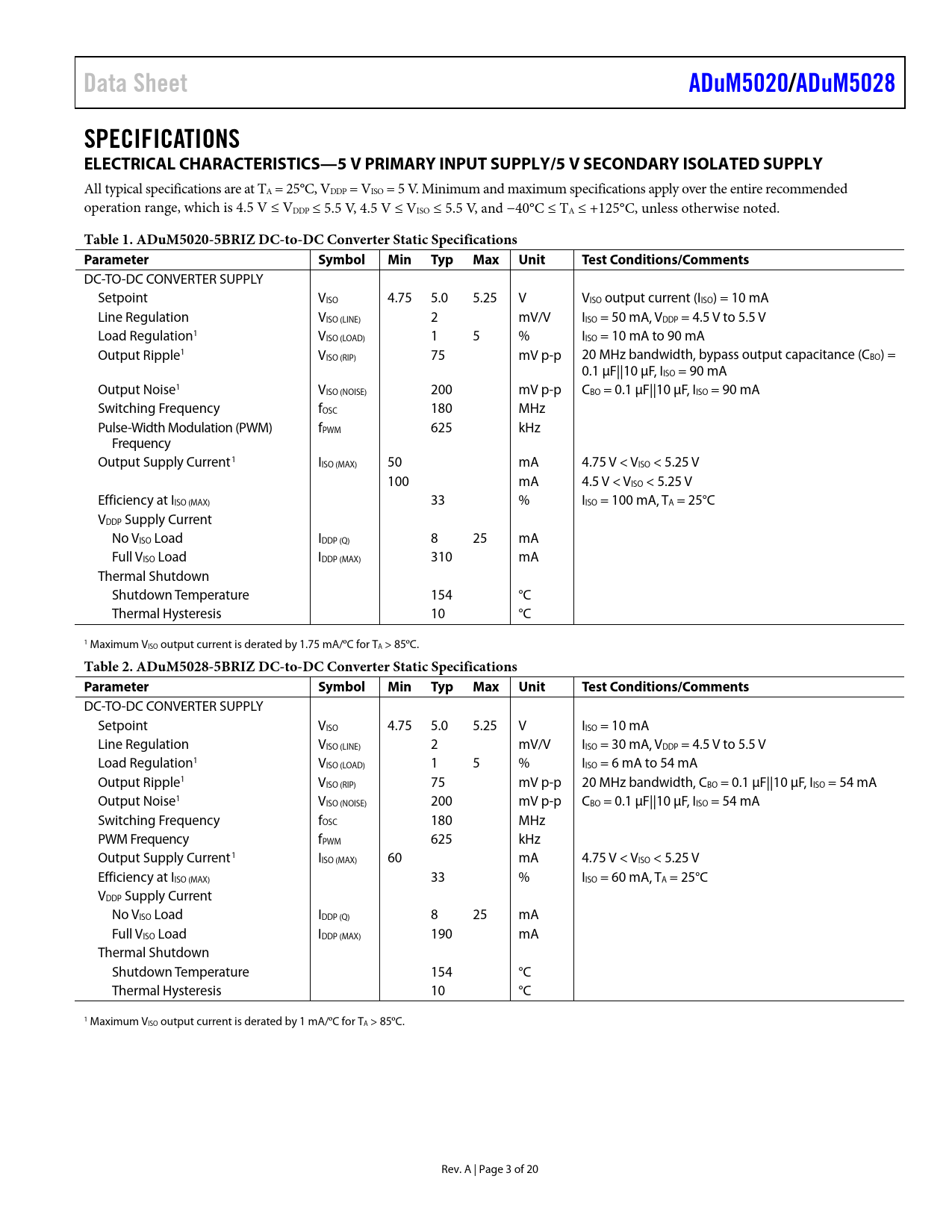

Data Sheet ADuM5020/ ADuM5028 SPECIFICATIONS ELECTRICAL CHARACTERISTICS—5 V PRIMARY INPUT SUPPLY/5 V SECONDARY ISOLATED SUPPLY
All typical specifications are at TA = 25°C, VDDP = VISO = 5 V. Minimum and maximum specifications apply over the entire recommended operation range, which is 4.5 V ≤ VDDP ≤ 5.5 V, 4.5 V ≤ VISO ≤ 5.5 V, and −40°C ≤ TA ≤ +125°C, unless otherwise noted.
Table 1. ADuM5020-5BRIZ DC-to-DC Converter Static Specifications Parameter Symbol Min Typ Max Unit Test Conditions/Comments
DC-TO-DC CONVERTER SUPPLY Setpoint VISO 4.75 5.0 5.25 V VISO output current (IISO) = 10 mA Line Regulation VISO (LINE) 2 mV/V IISO = 50 mA, VDDP = 4.5 V to 5.5 V Load Regulation1 VISO (LOAD) 1 5 % IISO = 10 mA to 90 mA Output Ripple1 VISO (RIP) 75 mV p-p 20 MHz bandwidth, bypass output capacitance (CBO) = 0.1 µF||10 µF, IISO = 90 mA Output Noise1 VISO (NOISE) 200 mV p-p CBO = 0.1 µF||10 µF, IISO = 90 mA Switching Frequency fOSC 180 MHz Pulse-Width Modulation (PWM) fPWM 625 kHz Frequency Output Supply Current1 IISO (MAX) 50 mA 4.75 V < VISO < 5.25 V 100 mA 4.5 V < VISO < 5.25 V Efficiency at IISO (MAX) 33 % IISO = 100 mA, TA = 25°C VDDP Supply Current No VISO Load IDDP (Q) 8 25 mA Full VISO Load IDDP (MAX) 310 mA Thermal Shutdown Shutdown Temperature 154 °C Thermal Hysteresis 10 °C 1 Maximum VISO output current is derated by 1.75 mA/ºC for TA > 85ºC.
