HMC644ALC5. GaAs MMIC 5-BIT DIGITAL. PHASE SHIFTER, 15 - 18.5 GHz. Application Circuit
Línea de modelo para esta hoja de datos
Versión de texto del documento
HMC644ALC5
v00.0216

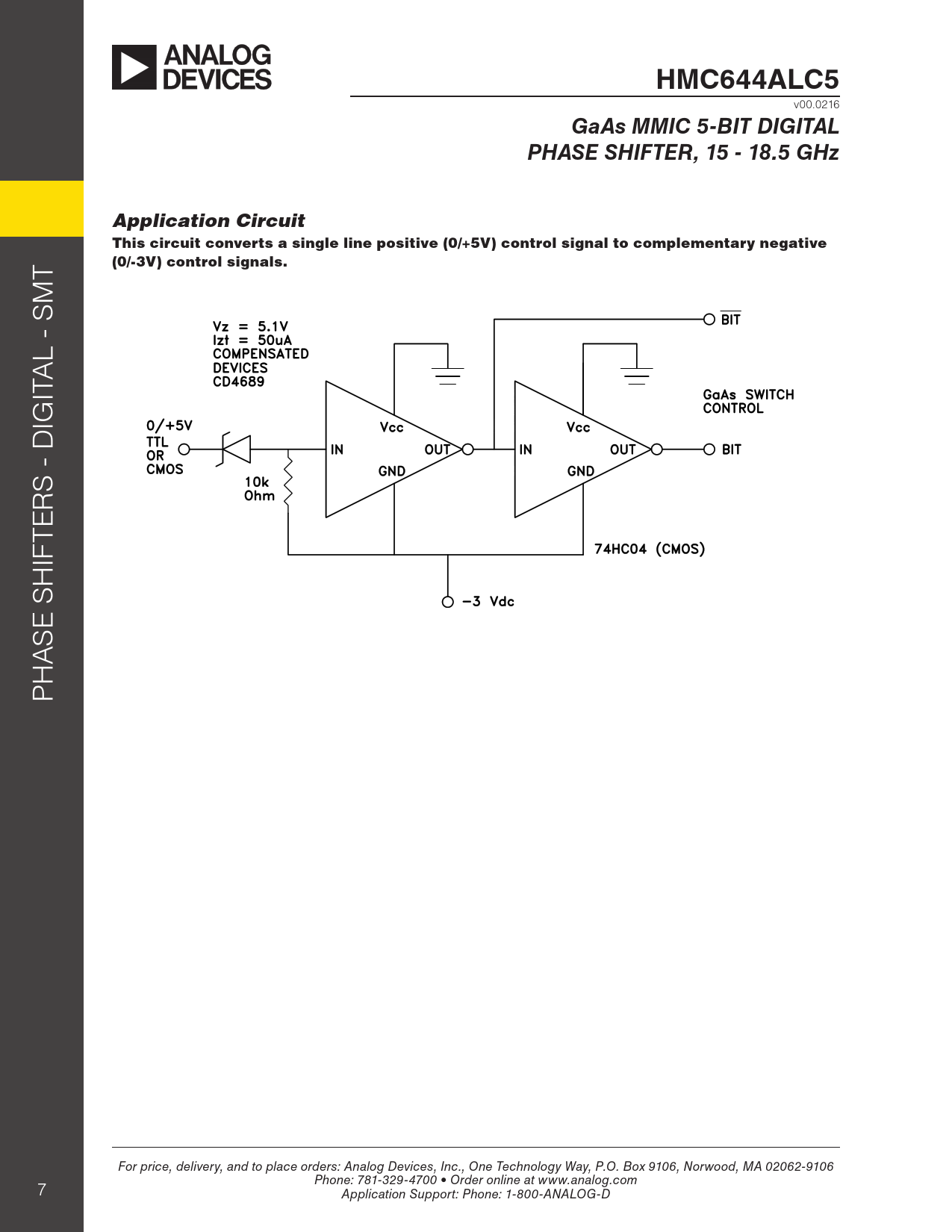

GaAs MMIC 5-BIT DIGITAL PHASE SHIFTER, 15 - 18.5 GHz Application Circuit This circuit converts a single line positive (0/+5V) control signal to complementary negative
T
(0/-3V) control signals.
M L - S ITA IG S - D IFTER H E S S A PH For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 781-329-4700 • Order online at www.analog.com 7 Application Support: Phone: 1-800-ANALOG-D
