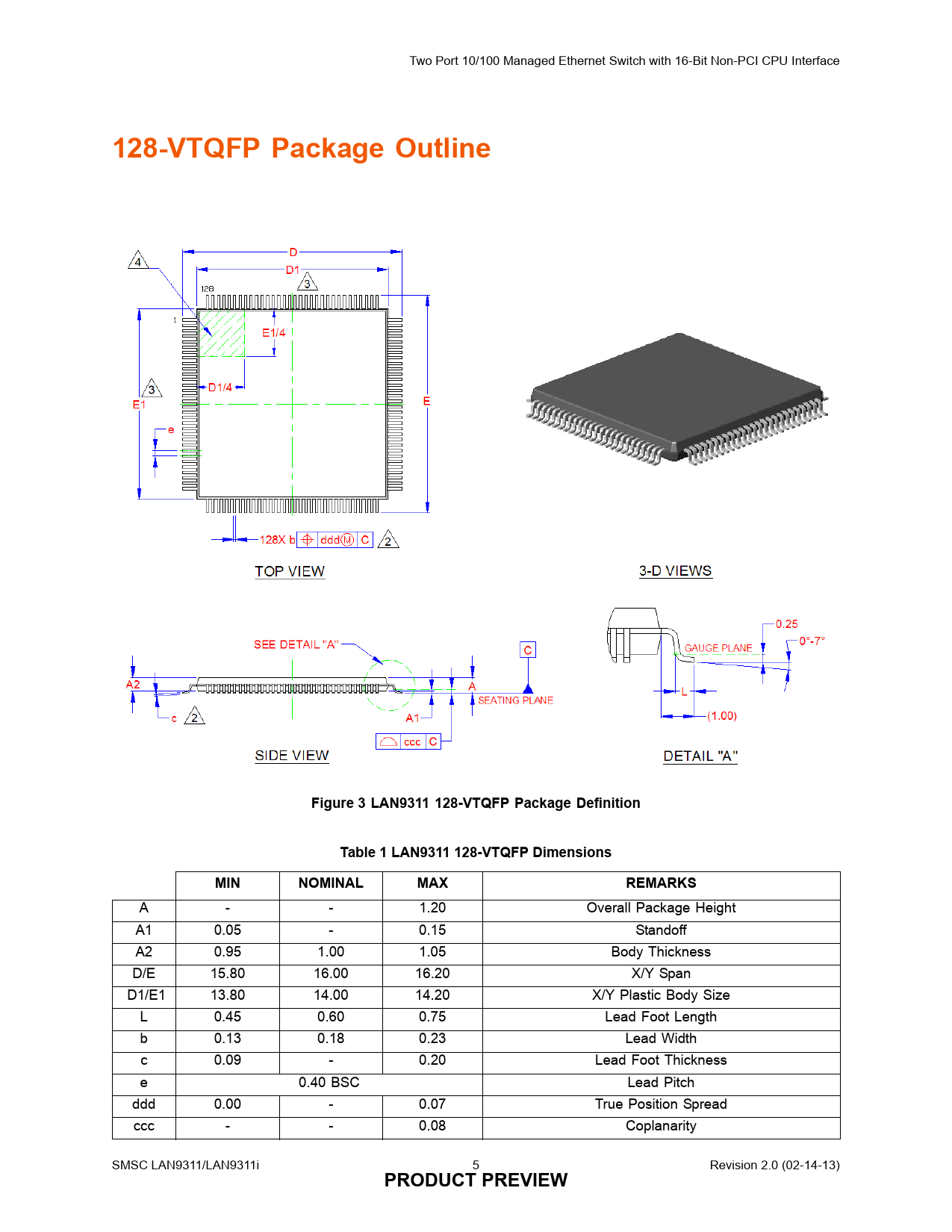

Two Port 10/100 Managed Ethernet Switch with 16-Bit Non-PCI CPU Interface 128-VTQFP Package Outline Figure 3 LAN9311 128-VTQFP Package Definition
Table 1 LAN9311 128-VTQFP Dimensions
MIN NOMINAL MAX REMARKS A -1.20 Overall Package Height A1 0.05 -0.15 Standoff A2 0.95 1.00 1.05 Body Thickness D/E 15.80 16.00 16.20 X/Y Span D1/E1 13.80 14.00 14.20 X/Y Plastic Body Size L 0.45 0.60 0.75 Lead Foot Length b 0.13 0.18 0.23 Lead Width c 0.09 -0.20 Lead Foot Thickness e 0.40 BSC Lead Pitch ddd 0.00 -0.07 True Position Spread ccc -0.08 Coplanarity SMSC LAN9311/LAN9311i 5 PRODUCT PREVIEW Revision 2.0 (02-14-13)
