STPS745. Features. TO-220AC. D2PAK. Description. TO-220FPAC. Table 1: Device summary. Symbol. Value
Línea de modelo para esta hoja de datos
Versión de texto del documento
STPS745

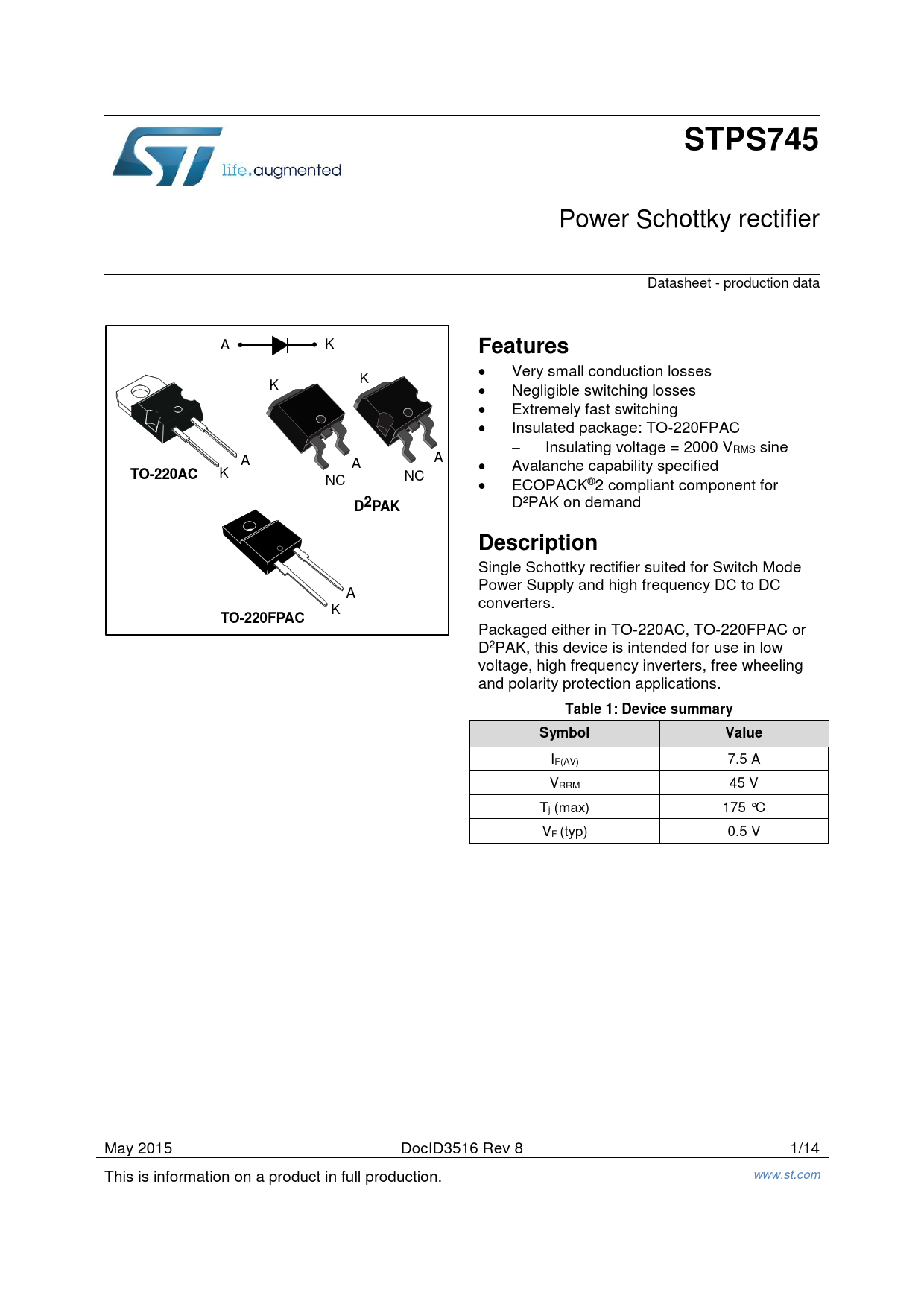

Power Schottky rectifier Datasheet - production data A K
Features
Very small conduction losses K K Negligible switching losses Extremely fast switching Insulated package: TO-220FPAC Insulating voltage = 2000 VRMS sine A A A Avalanche capability specified
TO-220AC
K NC NC ECOPACK®2 compliant component for D²PAK on demand
D2PAK Description
Single Schottky rectifier suited for Switch Mode Power Supply and high frequency DC to DC A converters. K
TO-220FPAC
Packaged either in TO-220AC, TO-220FPAC or D2PAK, this device is intended for use in low voltage, high frequency inverters, free wheeling and polarity protection applications.
Table 1: Device summary Symbol Value
IF(AV) 7.5 A VRRM 45 V Tj (max) 175 °C VF (typ) 0.5 V May 2015 DocID3516 Rev 8 1/14 This is information on a product in full production. www.st.com
