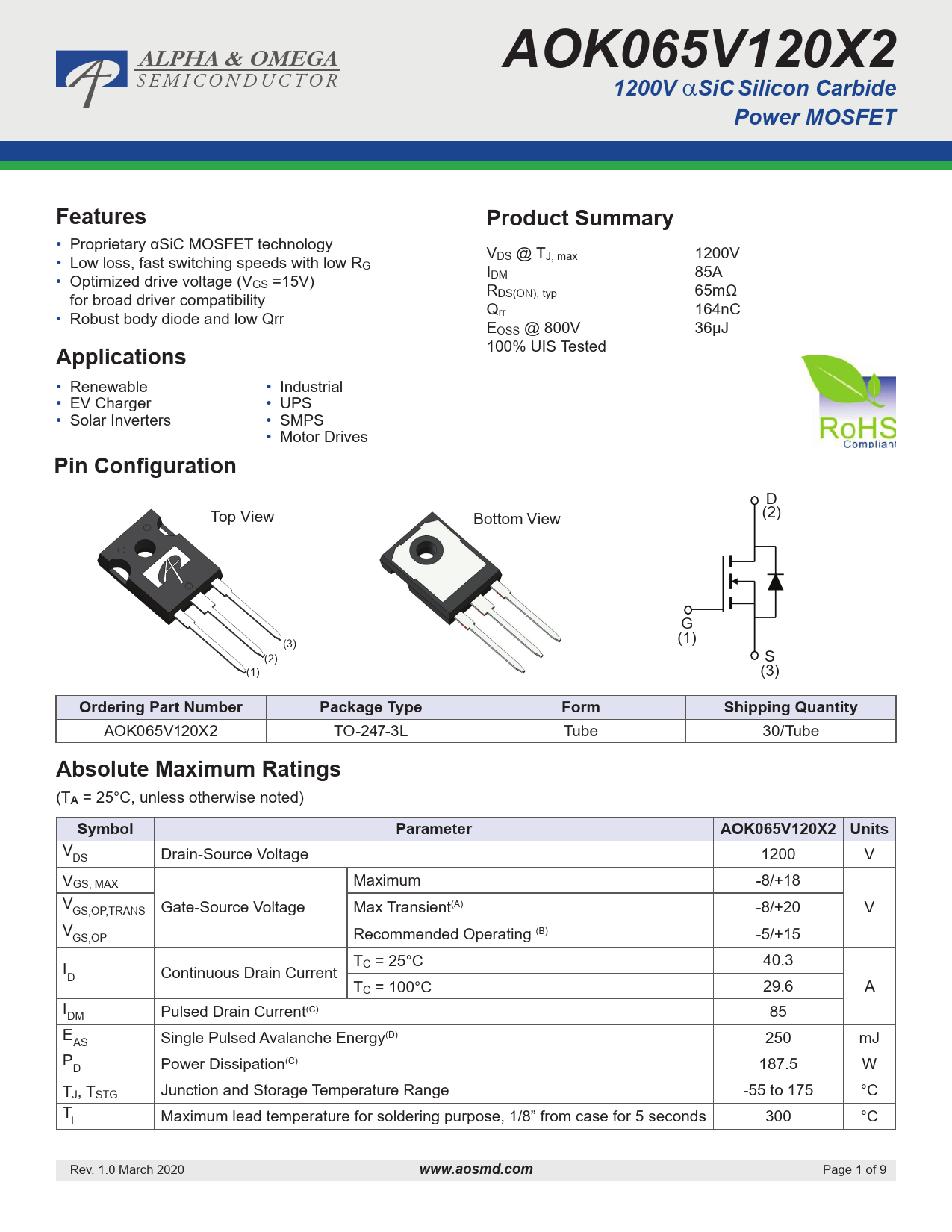

ALPHA & OMEGA AOK065V120X2
S E M I C O N D U C T O R
1200V
α
SiC Silicon Carbide Power MOSFET Features Product Summary
• Proprietary αSiC MOSFET technology • Low loss, fast switching speeds with low R VDS @ TJ, max 1200V G • Optimized drive voltage (V IDM 85A GS =15V) for broad driver compatibility RDS(ON), typ 65mΩ • Robust body diode and low Qrr Qrr 164nC EOSS @ 800V 36µJ
Applications
100% UIS Tested • Renewable • Industrial • EV Charger • UPS • Solar Inverters • SMPS • Motor Drives
Pin Configuration
D D Top View Bottom View (2) G G (3) (1) (2) SS (1) (3)
Ordering Part Number Package Type Form Shipping Quantity
AOK065V120X2 TO-247-3L Tube 30/Tube
Absolute Maximum Ratings
(T
A
= 25°C, unless otherwise noted)
Symbol Parameter AOK065V120X2 Units
VDS Drain-Source Voltage 1200 V VGS, MAX Maximum -8/+18 VGS,OP,TRANS Gate-Source Voltage Max Transient(A) -8/+20 V VGS,OP Recommended Operating (B) -5/+15 I TC = 25°C 40.3 D Continuous Drain Current TC = 100°C 29.6 A IDM Pulsed Drain Current(C) 85 EAS Single Pulsed Avalanche Energy(D) 250 mJ PD Power Dissipation(C) 187.5 W TJ, TSTG Junction and Storage Temperature Range -55 to 175 °C TL Maximum lead temperature for soldering purpose, 1/8” from case for 5 seconds 300 °C Rev. 1.0 March 2020
