Datasheet AD706 (Analog Devices) - 3
| Fabricante | Analog Devices |
| Descripción | Dual Picoampere Input Current Bipolar Op Amp |
| Páginas / Página | 10 / 3 — AD706. SPECIFICATIONS (continued). AD706J/A. Parameter. Conditions. Min. … |
| Revisión | G |
| Formato / tamaño de archivo | PDF / 345 Kb |
| Idioma del documento | Inglés |
AD706. SPECIFICATIONS (continued). AD706J/A. Parameter. Conditions. Min. Typ. Max. Unit. ESD CAUTION. ABSOLUTE MAXIMUM RATINGS1
Línea de modelo para esta hoja de datos
Versión de texto del documento

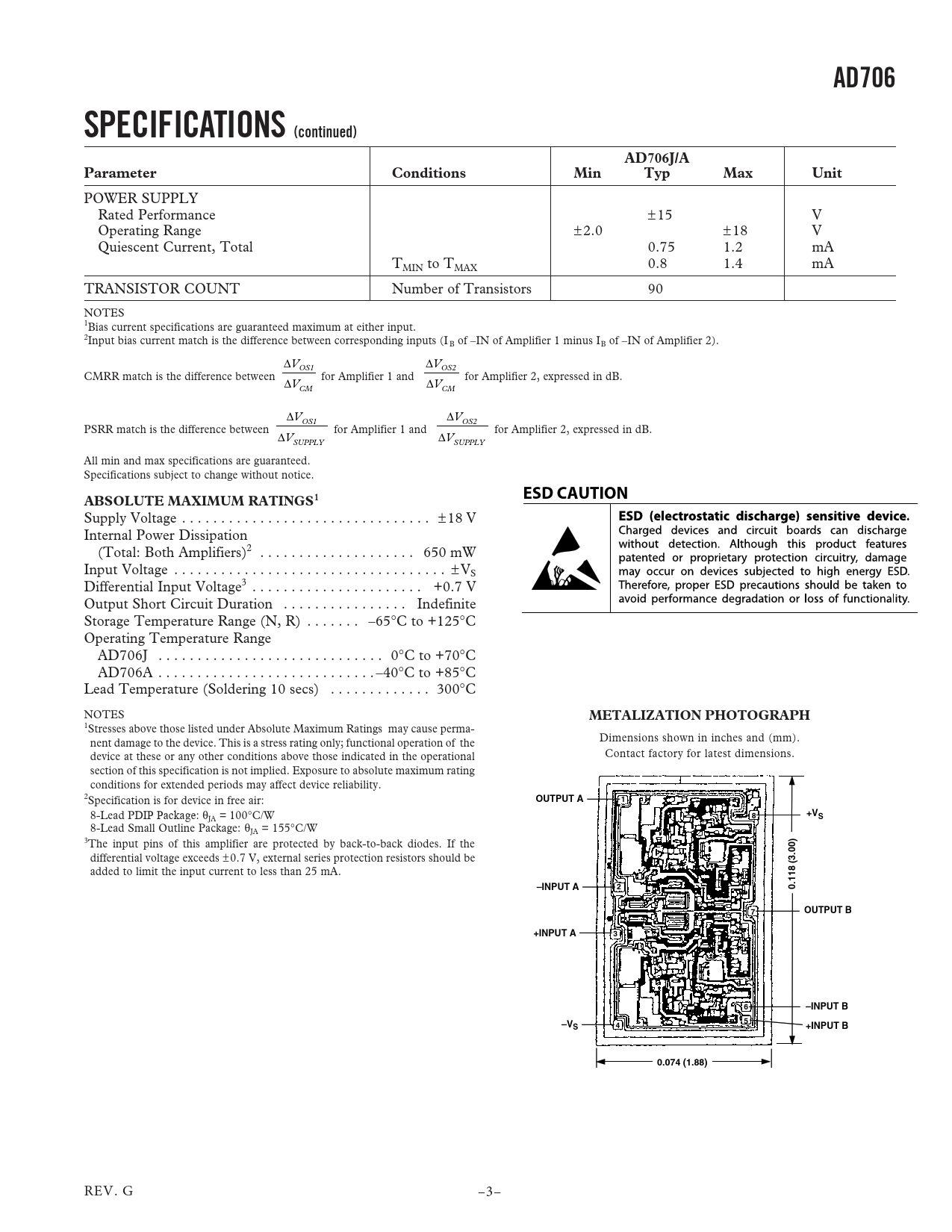

AD706 SPECIFICATIONS (continued) AD706J/A Parameter Conditions Min Typ Max Unit
POWER SUPPLY Rated Performance ± 15 V Operating Range ±2.0 ±18 V Quiescent Current, Total 0.75 1.2 mA TMIN to TMAX 0.8 1.4 mA TRANSISTOR COUNT Number of Transistors 90 NOTES 1Bias current specifications are guaranteed maximum at either input. 2Input bias current match is the difference between corresponding inputs (I B of –IN of Amplifier 1 minus IB of –IN of Amplifier 2). ∆V ∆V OS1 OS2 CMRR match is the difference between ∆ for Amplifier 1 and for Amplifier 2, expressed in dB. V ∆V CM CM ∆V ∆V OS1 OS2 PSRR match is the difference between ∆ for Amplifier 1 and for Amplifier 2, expressed in dB. V ∆V SUPPLY SUPPLY All min and max specifications are guaranteed. Specifications subject to change without notice.
ESD CAUTION ABSOLUTE MAXIMUM RATINGS1
Supply Voltage . ± 18 V Internal Power Dissipation (Total: Both Amplifiers)2 . 650 mW Input Voltage . ± VS Differential Input Voltage3 . +0.7 V Output Short Circuit Duration . Indefinite Storage Temperature Range (N, R) . –65°C to +125°C Operating Temperature Range AD706J . 0°C to +70°C AD706A . –40°C to +85°C Lead Temperature (Soldering 10 secs) . 300°C NOTES
METALIZATION PHOTOGRAPH
1Stresses above those listed under Absolute Maximum Ratings may cause perma- nent damage to the device. This is a stress rating only; functional operation of the Dimensions shown in inches and (mm). device at these or any other conditions above those indicated in the operational Contact factory for latest dimensions. section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. 2Specification is for device in free air:
OUTPUT A 1
8-Lead PDIP Package: θ
+V
JA = 100°C/W
8 S
8-Lead Small Outline Package: θJA = 155°C/W 3The input pins of this amplifier are protected by back-to-back diodes. If the differential voltage exceeds ± 0.7 V, external series protection resistors should be added to limit the input current to less than 25 mA.
–INPUT A 2 0.118 (3.00) 7 OUTPUT B +INPUT A 3 6 –INPUT B 5 –V 4 S +INPUT B 0.074 (1.88)
