Datasheet B82801A1 (TDK) - 2
| Fabricante | TDK |
| Descripción | SMT Current Sense Transformers |
| Páginas / Página | 10 / 2 — SMT current sense transformers. B82801A1. EE 4.2. SMT current sensor … |
| Formato / tamaño de archivo | PDF / 629 Kb |
| Idioma del documento | Inglés |
SMT current sense transformers. B82801A1. EE 4.2. SMT current sensor transformers. Applications. Features. Marking
Línea de modelo para esta hoja de datos
Versión de texto del documento

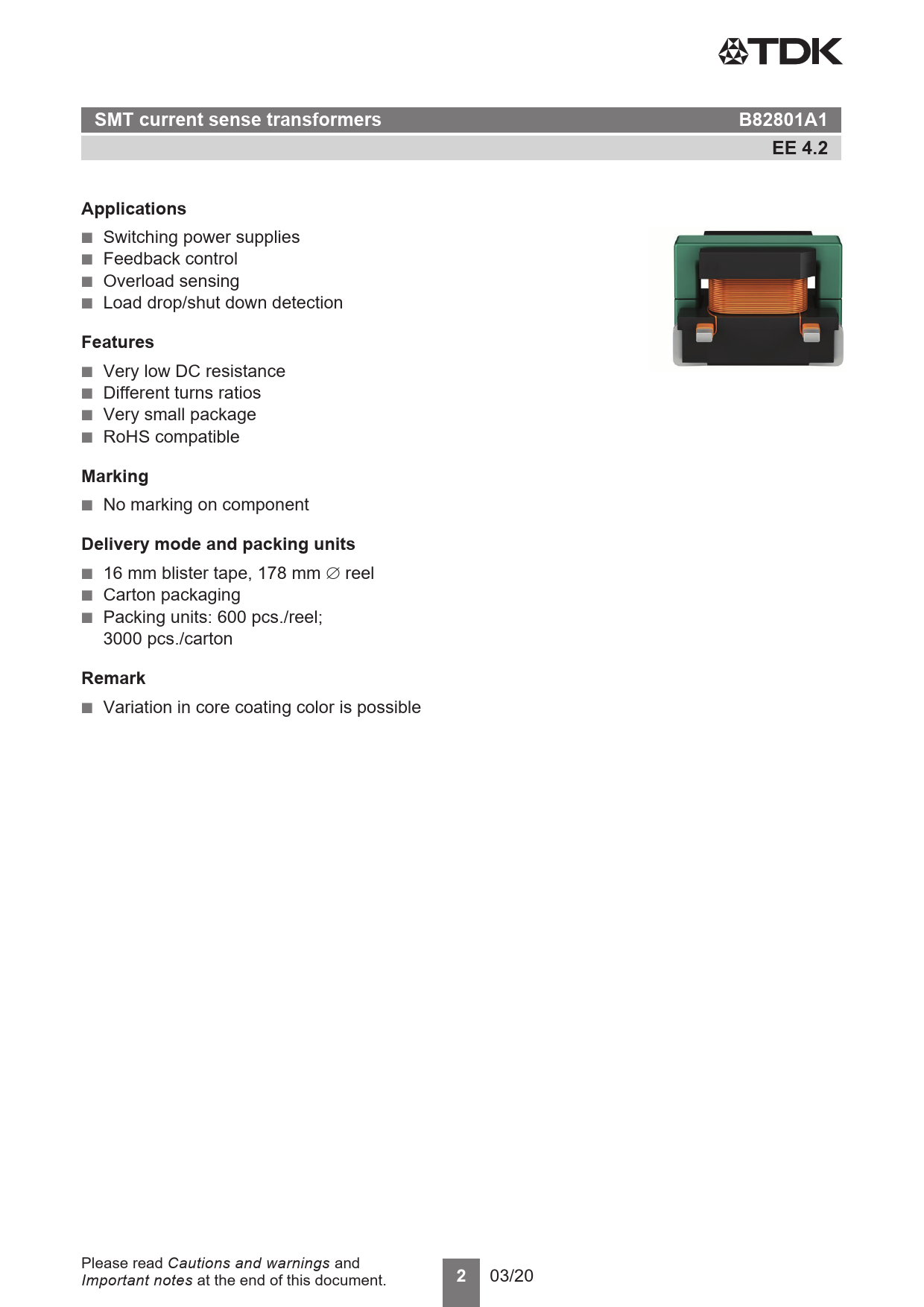

SMT current sense transformers B82801A1 EE 4.2 SMT current sensor transformers Applications
■ Switching power supplies ■ Feedback control ■ Overload sensing ■ Load drop/shut down detection
Features
■ Very low DC resistance ■ Different turns ratios ■ Very small package ■ RoHS compatible
Marking
■ No marking on component
Delivery mode and packing units
■ 16 mm blister tape, 178 mm reel ■ Carton packaging ■ Packing units: 600 pcs./reel; 3000 pcs./carton
Remark
■ Variation in core coating color is possible Please read Cautions and warnings and
2
03/20 Important notes at the end of this document.
■ Switching power supplies ■ Feedback control ■ Overload sensing ■ Load drop/shut down detection
Features
■ Very low DC resistance ■ Different turns ratios ■ Very small package ■ RoHS compatible
Marking
■ No marking on component
Delivery mode and packing units
■ 16 mm blister tape, 178 mm reel ■ Carton packaging ■ Packing units: 600 pcs./reel; 3000 pcs./carton
Remark
■ Variation in core coating color is possible Please read Cautions and warnings and
2
03/20 Important notes at the end of this document.
