Datasheet GBU6005, GBU601, GBU602, GBU604, GBU606, GBU608, GBU610 (Diodes)
| Fabricante | Diodes |
| Descripción | 6.0 A Glass Passivated Bridge Rectifier |
| Páginas / Página | 3 / 1 — GBU6005 - GBU610. 6.0A GLASS PASSIVATED BRIDGE RECTIFIER. Features. GBU. … |
| Formato / tamaño de archivo | PDF / 69 Kb |
| Idioma del documento | Inglés |
GBU6005 - GBU610. 6.0A GLASS PASSIVATED BRIDGE RECTIFIER. Features. GBU. Dim. Min. Max. Lead Free Finish, RoHS Compliant (Note 4)
Línea de modelo para esta hoja de datos
Versión de texto del documento

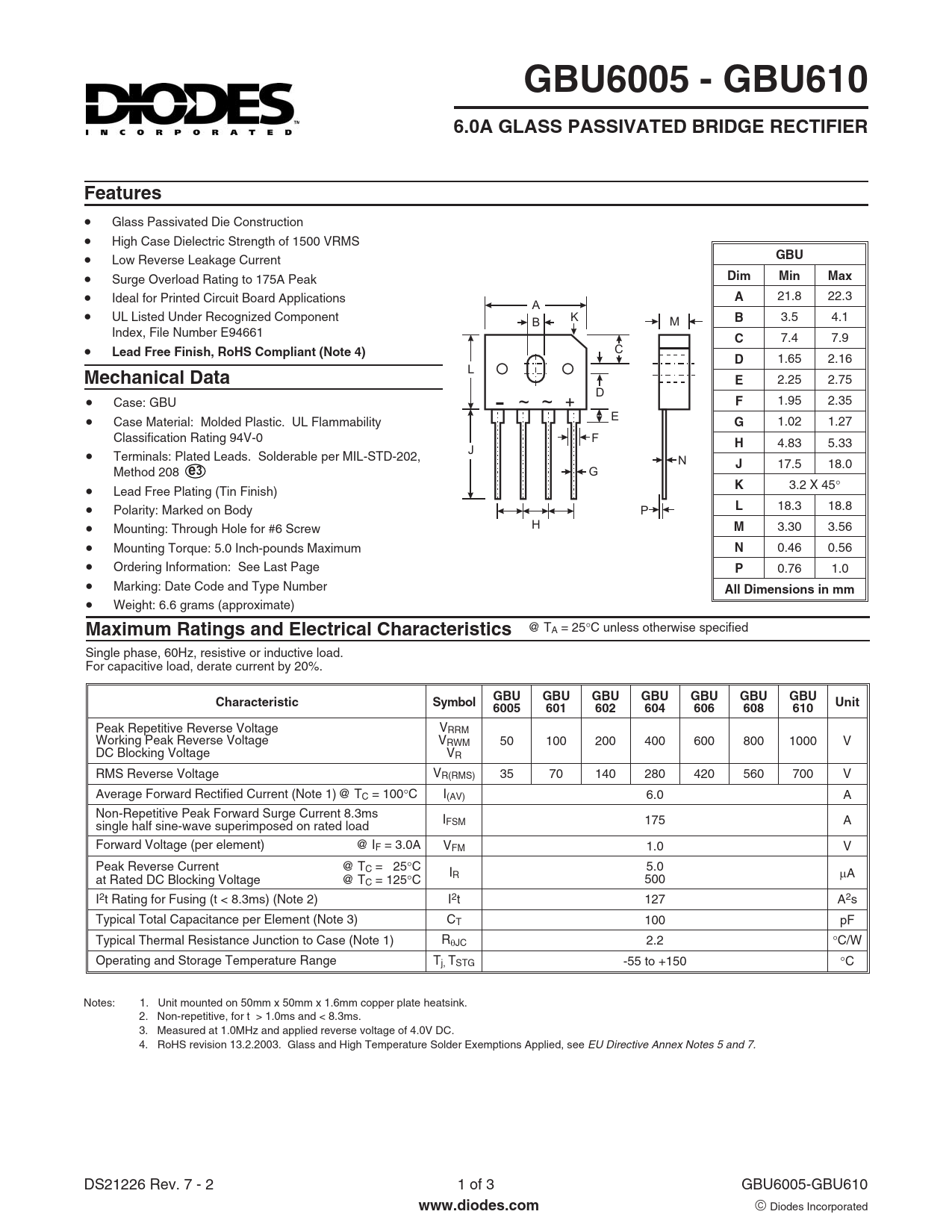

GBU6005 - GBU610 6.0A GLASS PASSIVATED BRIDGE RECTIFIER Features
· Glass Passivated Die Construction · High Case Dielectric Strength of 1500 VRMS
GBU
· Low Reverse Leakage Current
Dim Min Max
· Surge Overload Rating to 175A Peak
A
21.8 22.3 · Ideal for Printed Circuit Board Applications A · UL Listed Under Recognized Component
B
3.5 4.1 B K M Index, File Number E94661
C
7.4 7.9 C ·
Lead Free Finish, RoHS Compliant (Note 4) D
1.65 2.16
Mechanical Data
L
E
2.25 2.75 · D Case: GBU
F
1.95 2.35 - ~ ~ + · E Case Material: Molded Plastic. UL Flammability
G
1.02 1.27 Classification Rating 94V-0 F
H
4.83 5.33 · J Terminals: Plated Leads. Solderable per MIL-STD-202, N
J
17.5 18.0 Method 208
e3
G ·
K
3.2 X 45° Lead Free Plating (Tin Finish) · Polarity: Marked on Body
L
18.3 18.8 P · Mounting: Through Hole for #6 Screw H
M
3.30 3.56 · Mounting Torque: 5.0 Inch-pounds Maximum
N
0.46 0.56 · Ordering Information: See Last Page
P
0.76 1.0 · Marking: Date Code and Type Number
All Dimensions in mm
· Weight: 6.6 grams (approximate)
Maximum Ratings and Electrical Characteristics
@ TA = 25°C unless otherwise specified Single phase, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%.
GBU GBU GBU GBU GBU GBU GBU Characteristic Symbol Unit 6005 601 602 604 606 608 610
Peak Repetitive Reverse Voltage VRRM Working Peak Reverse Voltage VRWM 50 100 200 400 600 800 1000 V DC Blocking Voltage VR RMS Reverse Voltage VR(RMS) 35 70 140 280 420 560 700 V Average Forward Rectified Current (Note 1) @ TC = 100°C I(AV) 6.0 A Non-Repetitive Peak Forward Surge Current 8.3ms I single half sine-wave superimposed on rated load FSM 175 A Forward Voltage (per element) @ IF = 3.0A VFM 1.0 V Peak Reverse Current @ TC = 25°C I 5.0 mA at Rated DC Blocking Voltage @ T R C = 125°C 500 I2t Rating for Fusing (t < 8.3ms) (Note 2) I2t 127 A2s Typical Total Capacitance per Element (Note 3) CT 100 pF Typical Thermal Resistance Junction to Case (Note 1) RqJC 2.2 °C/W Operating and Storage Temperature Range Tj, TSTG -55 to +150 °C Notes: 1. Unit mounted on 50mm x 50mm x 1.6mm copper plate heatsink. 2. Non-repetitive, for t > 1.0ms and < 8.3ms. 3. Measured at 1.0MHz and applied reverse voltage of 4.0V DC. 4. RoHS revision 13.2.2003. Glass and High Temperature Solder Exemptions Applied, see EU Directive Annex Notes 5 and 7. DS21226 Rev. 7 - 2 1 of 3 GBU6005-GBU610
