Datasheet STB11NM60T4, STP11NM60 (STMicroelectronics) - 6
| Fabricante | STMicroelectronics |
| Descripción | N-channel 600 V, 0.4 Ω typ., 11 A, MDmesh II Power MOSFETs in D²PAK and TO-220 |
| Páginas / Página | 21 / 6 — STB11NM60T4, STP11NM60. Electrical characteristics (curves). Figure 7. … |
| Formato / tamaño de archivo | PDF / 639 Kb |
| Idioma del documento | Inglés |
STB11NM60T4, STP11NM60. Electrical characteristics (curves). Figure 7. Normalized on-resistance vs temperature
Línea de modelo para esta hoja de datos
Versión de texto del documento

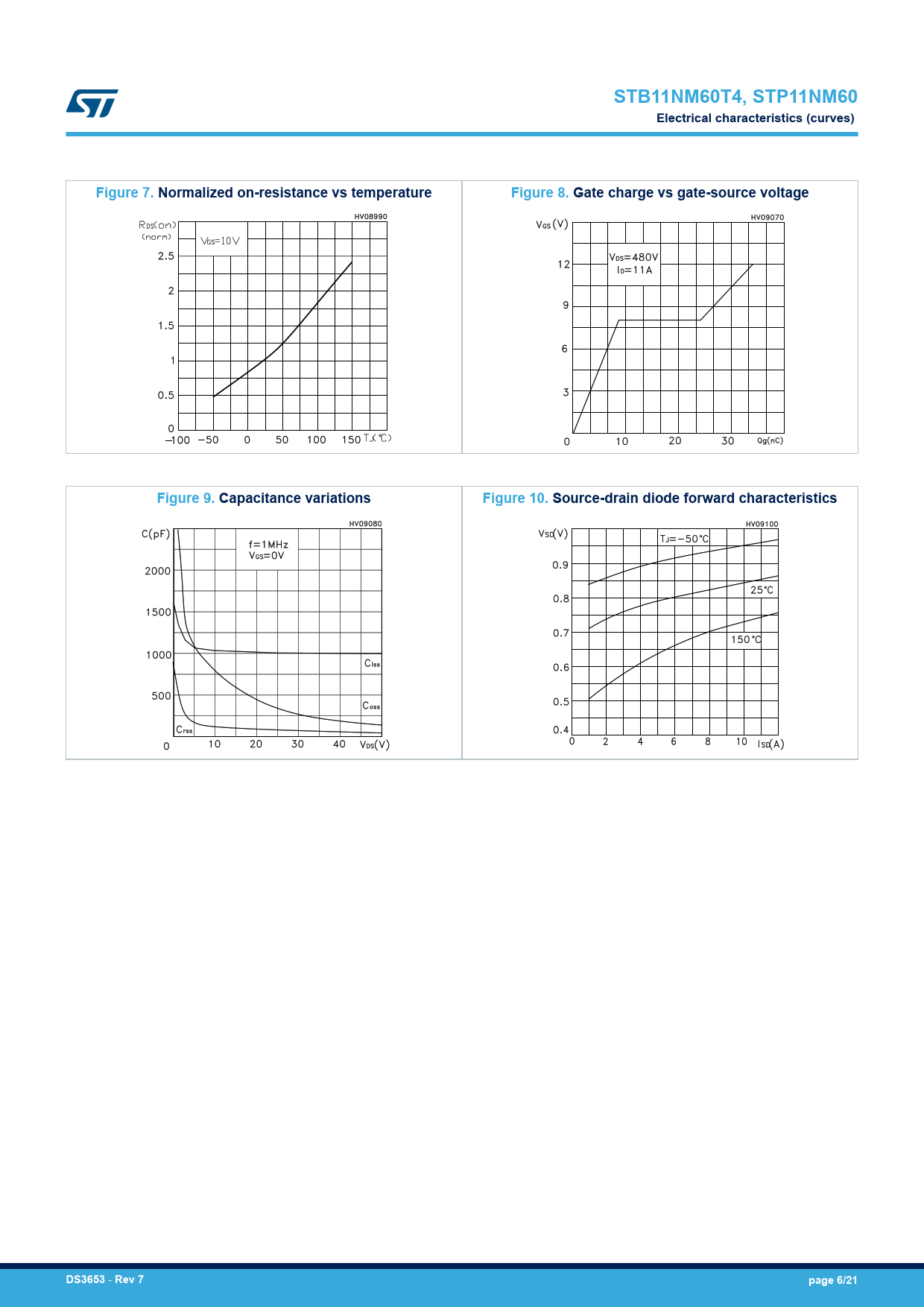

STB11NM60T4, STP11NM60 Electrical characteristics (curves) Figure 7. Normalized on-resistance vs temperature Figure 8. Gate charge vs gate-source voltage Figure 9. Capacitance variations Figure 10. Source-drain diode forward characteristics DS3653
-
Rev 7 page 6/21
