Datasheet STB11NM60T4, STP11NM60 (STMicroelectronics) - 4
| Fabricante | STMicroelectronics |
| Descripción | N-channel 600 V, 0.4 Ω typ., 11 A, MDmesh II Power MOSFETs in D²PAK and TO-220 |
| Páginas / Página | 21 / 4 — STB11NM60T4, STP11NM60. Electrical characteristics. Table 7. Source drain … |
| Formato / tamaño de archivo | PDF / 639 Kb |
| Idioma del documento | Inglés |
STB11NM60T4, STP11NM60. Electrical characteristics. Table 7. Source drain diode. Symbol. Parameter. Test conditions. Min. Typ. Max. Unit
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 4 link to page 4 link to page 7 link to page 7 link to page 7 link to page 7 link to page 7 link to page 7

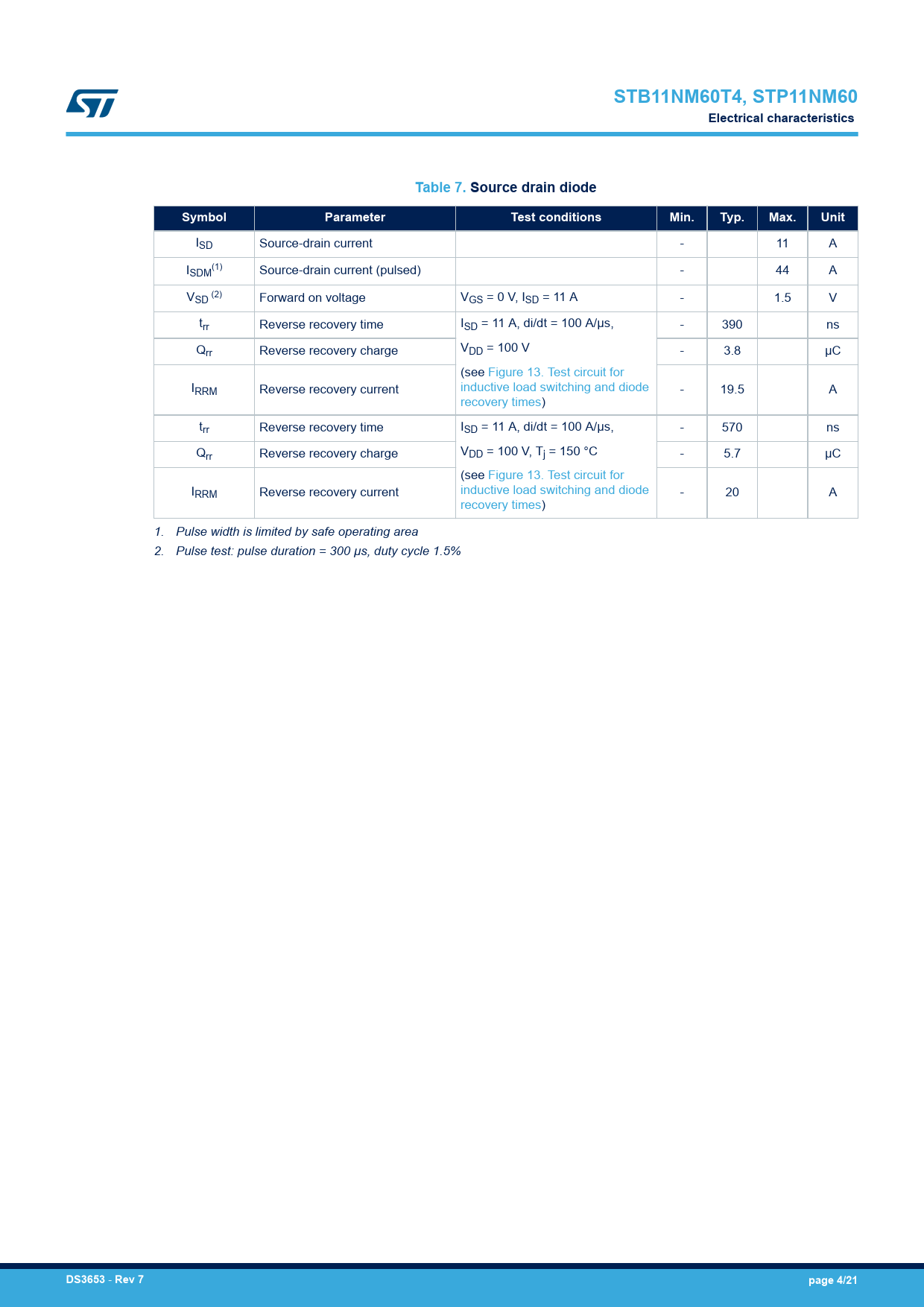

STB11NM60T4, STP11NM60 Electrical characteristics Table 7. Source drain diode Symbol Parameter Test conditions Min. Typ. Max. Unit
ISD Source-drain current - 11 A I (1) SDM Source-drain current (pulsed) - 44 A V (2) SD Forward on voltage VGS = 0 V, ISD = 11 A - 1.5 V trr Reverse recovery time ISD = 11 A, di/dt = 100 A/µs, - 390 ns Q V rr Reverse recovery charge DD = 100 V - 3.8 μC (see Figure 13. Test circuit for I inductive load switching and diode RRM Reverse recovery current - 19.5 A recovery times) trr Reverse recovery time ISD = 11 A, di/dt = 100 A/µs, - 570 ns Q V rr Reverse recovery charge DD = 100 V, Tj = 150 °C - 5.7 μC (see Figure 13. Test circuit for I inductive load switching and diode RRM Reverse recovery current - 20 A recovery times) 1. Pulse width is limited by safe operating area 2. Pulse test: pulse duration = 300 µs, duty cycle 1.5%
DS3653
-
Rev 7 page 4/21
Document Outline 1 Electrical ratings 2 Electrical characteristics 2.1 Electrical characteristics (curves) 3 Test circuits 4 Package information 4.1 D²PAK (TO-263) type A package information 4.2 D²PAK packing information 4.3 D²PAK (TO-263) type B package information 4.4 D²PAK type B packing information 4.5 TO-220 type A package information Revision history
