Datasheet IRLR024NPbF, IRLU024NPbF (Infineon) - 10
| Fabricante | Infineon |
| Descripción | HEXFET Power MOSFET |
| Páginas / Página | 11 / 10 — IR WORLD HEADQUARTERS: |
| Formato / tamaño de archivo | PDF / 316 Kb |
| Idioma del documento | Inglés |
IR WORLD HEADQUARTERS:
Línea de modelo para esta hoja de datos
Versión de texto del documento

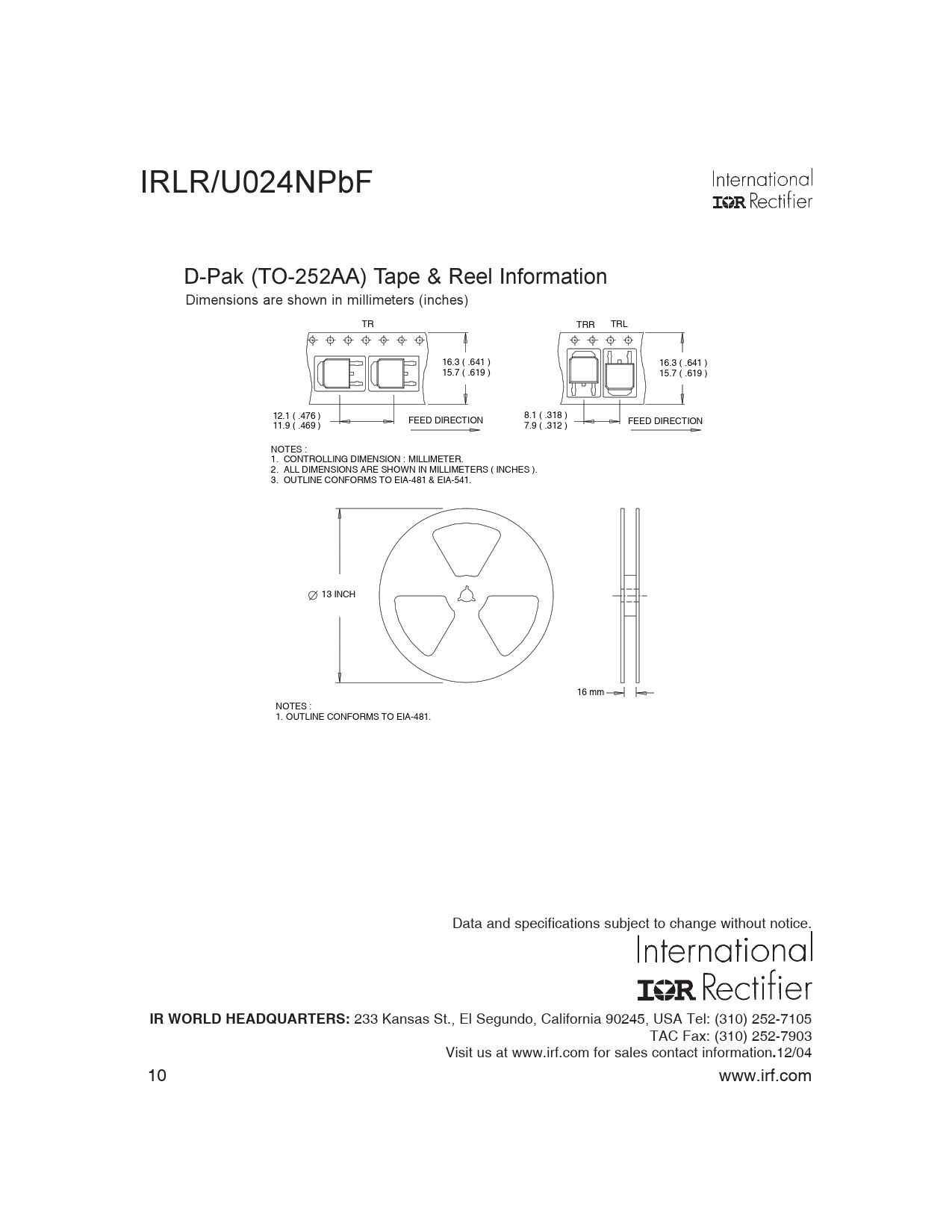

IRLR/U024NPbF D-Pak (TO-252AA) Tape & Reel Information Dimensions are shown in millimeters (inches) TR TRR TRL 16.3 ( .641 ) 16.3 ( .641 ) 15.7 ( .619 ) 15.7 ( .619 ) 12.1 ( .476 ) 8.1 ( .318 ) FEED DIRECTION 11.9 ( .469 ) 7.9 ( .312 ) FEED DIRECTION NOTES : 1. CONTROLLING DIMENSION : MILLIMETER. 2. ALL DIMENSIONS ARE SHOWN IN MILLIMETERS ( INCHES ). 3. OUTLINE CONFORMS TO EIA-481 & EIA-541. 13 INCH 16 mm NOTES : 1. OUTLINE CONFORMS TO EIA-481. Data and specifications subject to change without notice.
IR WORLD HEADQUARTERS:
233 Kansas St., El Segundo, California 90245, USA Tel: (310) 252-7105 TAC Fax: (310) 252-7903 Visit us at www.irf.com for sales contact information
.
12/04 10 www.irf.com
