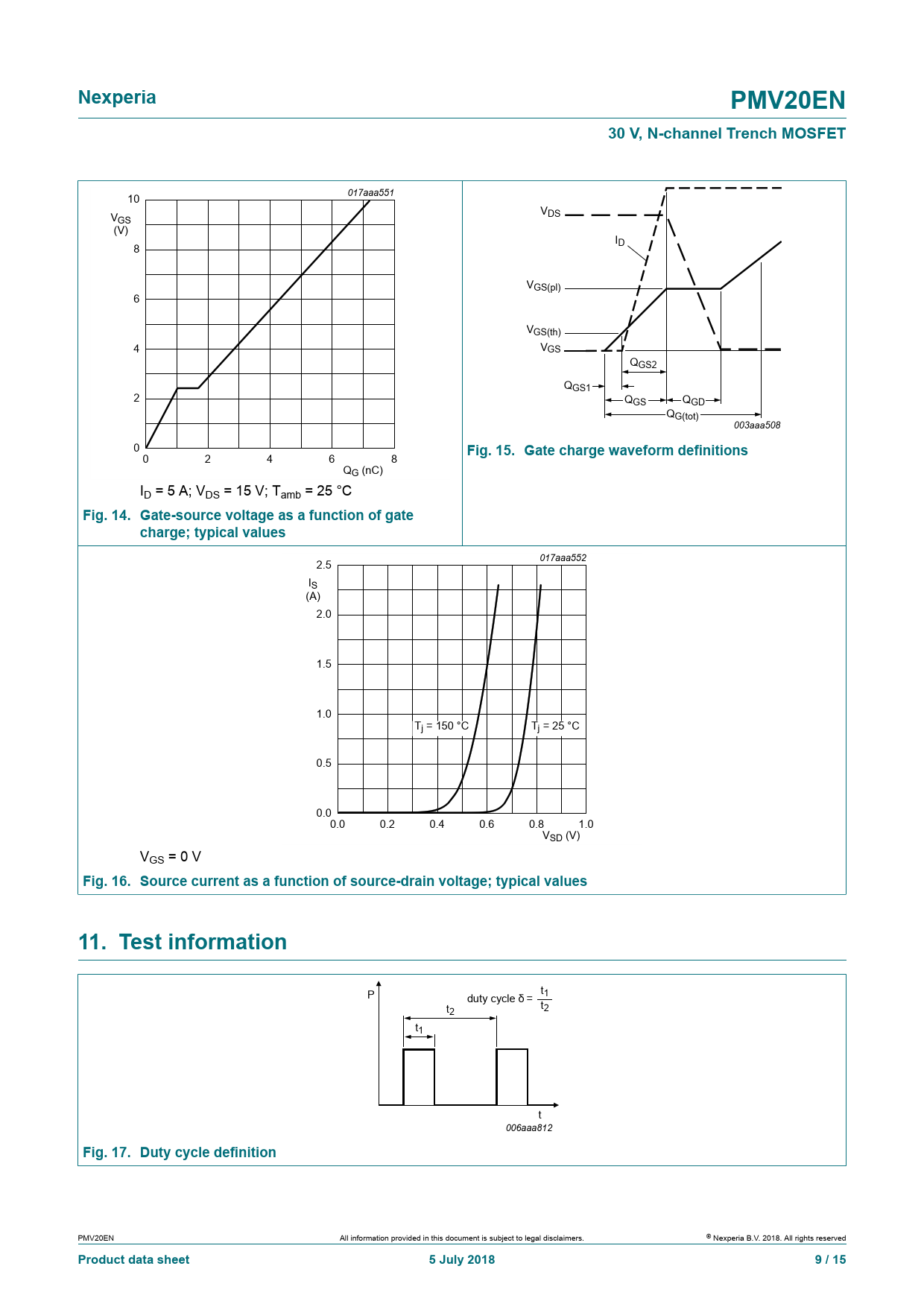

Nexperia. PMV20EN. 30 V, N-channel Trench MOSFET. Fig. 15. Gate charge waveform definitions
Línea de modelo para esta hoja de datos
Versión de texto del documento
Nexperia PMV20EN 30 V, N-channel Trench MOSFET
017aaa551 10 V VDS GS (V) I 8 D VGS(pl) 6 VGS(th) 4 VGS QGS2 QGS1 2 QGS QGD QG(tot) 003aaa508 0
Fig. 15. Gate charge waveform definitions
0 2 4 6 8 QG (nC) ID = 5 A; VDS = 15 V; Tamb = 25 °C
Fig. 14. Gate-source voltage as a function of gate charge; typical values
017aaa552 2.5 IS (A) 2.0 1.5 1.0 Tj = 150 °C Tj = 25 °C 0.5 0.00.0 0.2 0.4 0.6 0.8 1.0 VSD (V) VGS = 0 V
Fig. 16. Source current as a function of source-drain voltage; typical values 11. Test information
t1 P duty cycle δ = t t 2 2 t1 t 006aaa812
Fig. 17. Duty cycle definition
