Nexperia. MMBZxAL series. Low capacitance unidirectional double ESD protection diodes. Limiting values. Table 6. Symbol. Parameter
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 5 link to page 5 link to page 5 link to page 5 link to page 5 link to page 5 link to page 5

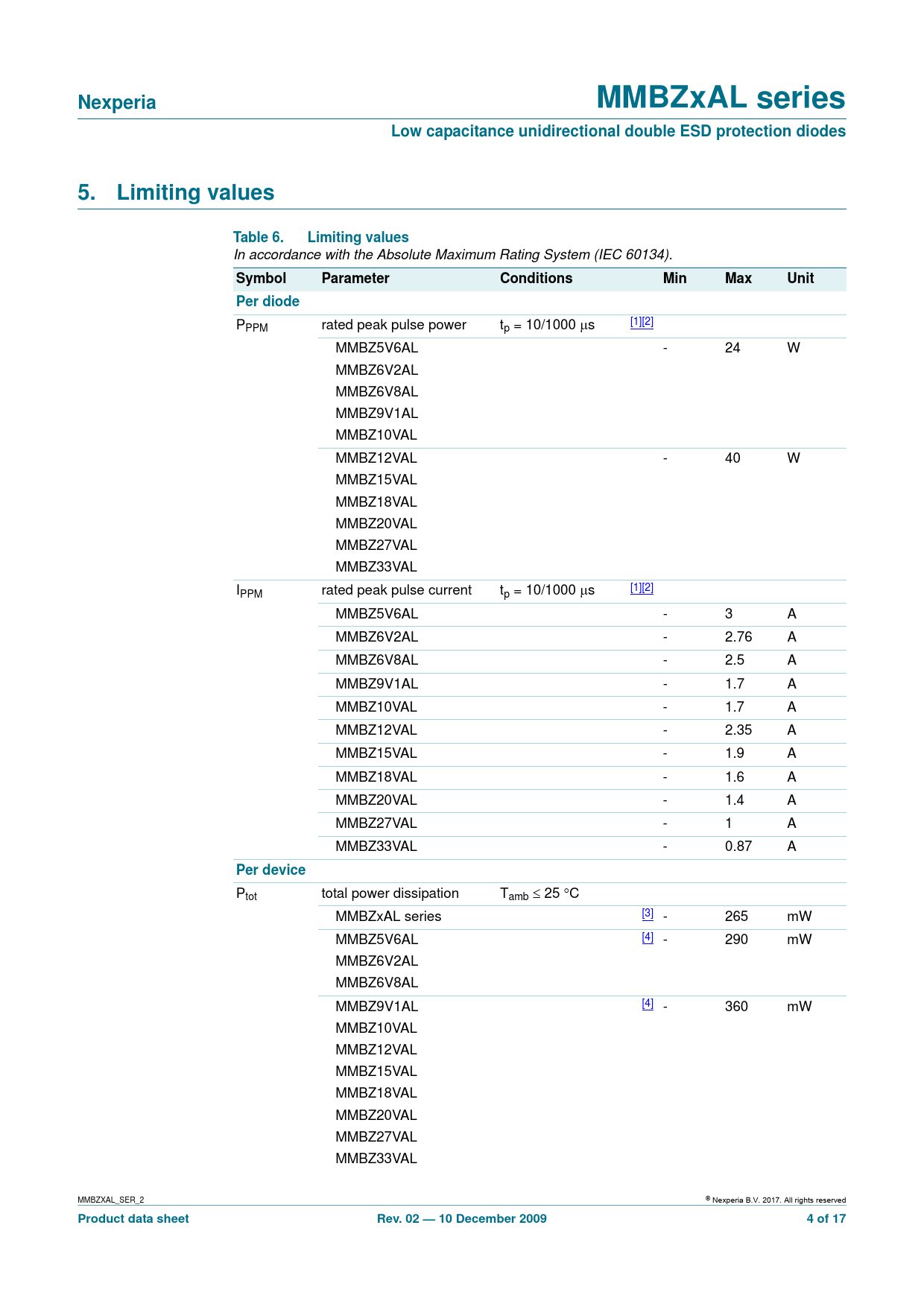

Nexperia MMBZxAL series Low capacitance unidirectional double ESD protection diodes 5. Limiting values Table 6. Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134).
Symbol Parameter Conditions Min Max Unit Per diode
PPPM rated peak pulse power tp = 10/1000 μs [1][2] MMBZ5V6AL - 24 W MMBZ6V2AL MMBZ6V8AL MMBZ9V1AL MMBZ10VAL MMBZ12VAL - 40 W MMBZ15VAL MMBZ18VAL MMBZ20VAL MMBZ27VAL MMBZ33VAL IPPM rated peak pulse current tp = 10/1000 μs [1][2] MMBZ5V6AL - 3 A MMBZ6V2AL - 2.76 A MMBZ6V8AL - 2.5 A MMBZ9V1AL - 1.7 A MMBZ10VAL - 1.7 A MMBZ12VAL - 2.35 A MMBZ15VAL - 1.9 A MMBZ18VAL - 1.6 A MMBZ20VAL - 1.4 A MMBZ27VAL - 1 A MMBZ33VAL - 0.87 A
Per device
P ≤ tot total power dissipation Tamb 25 °C MMBZxAL series [3] - 265 mW MMBZ5V6AL [4] - 290 mW MMBZ6V2AL MMBZ6V8AL MMBZ9V1AL [4] - 360 mW MMBZ10VAL MMBZ12VAL MMBZ15VAL MMBZ18VAL MMBZ20VAL MMBZ27VAL MMBZ33VAL MMBZXAL_SER_2 © Nexperia B.V. 2017. All rights reserved
Product data sheet Rev. 02 — 10 December 2009 4 of 17
