Datasheet ADN8810 (Analog Devices) - 5
| Fabricante | Analog Devices |
| Descripción | 12-Bit High Output Current Source |
| Páginas / Página | 14 / 5 — Data Sheet. ADN8810. ABSOLUTE MAXIMUM RATINGS Table 3. Parameter. Rating. … |
| Revisión | C |
| Formato / tamaño de archivo | PDF / 443 Kb |
| Idioma del documento | Inglés |

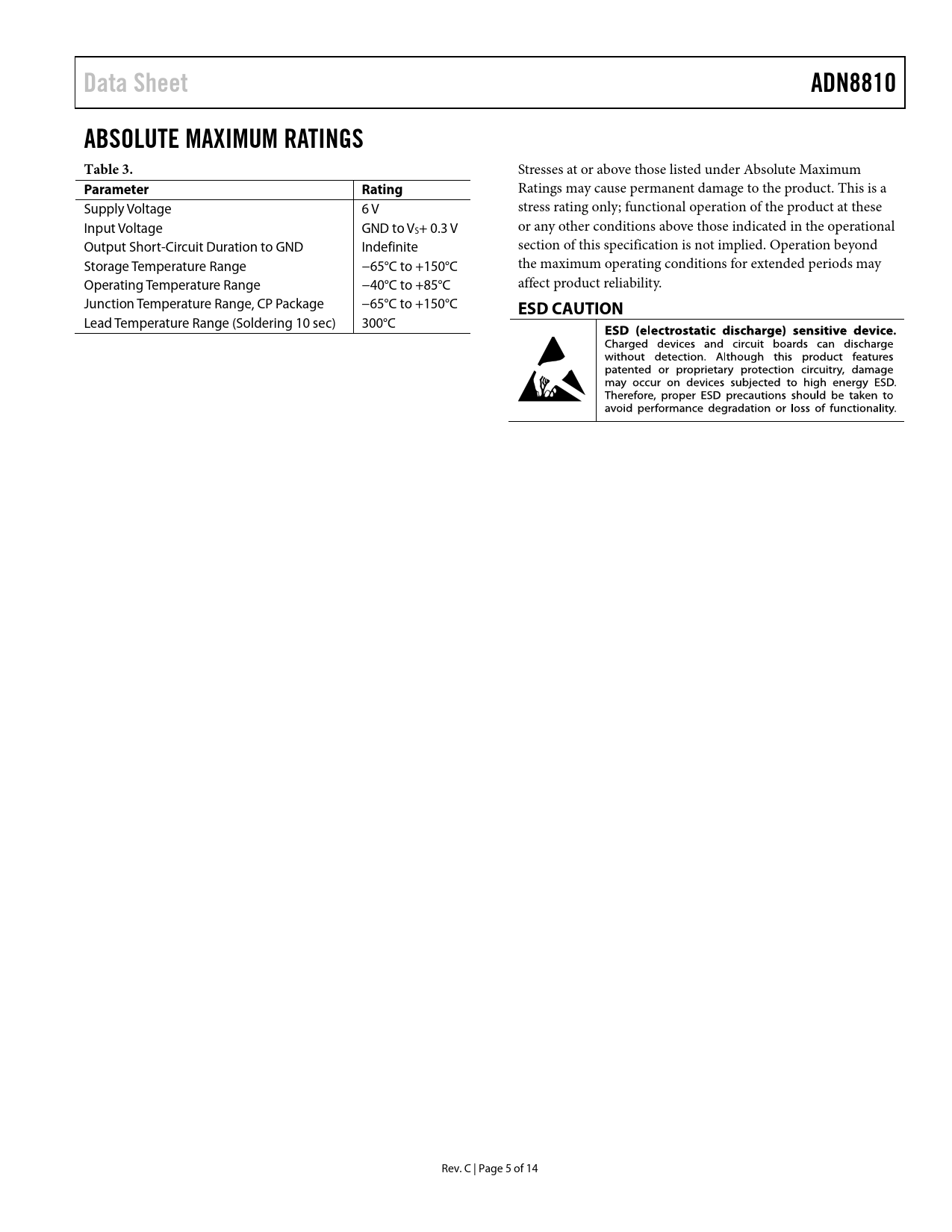

Data Sheet. ADN8810. ABSOLUTE MAXIMUM RATINGS Table 3. Parameter. Rating. ESD CAUTION
Línea de modelo para esta hoja de datos
Versión de texto del documento
Data Sheet ADN8810 ABSOLUTE MAXIMUM RATINGS Table 3.
Stresses at or above those listed under Absolute Maximum
Parameter Rating
Ratings may cause permanent damage to the product. This is a Supply Voltage 6 V stress rating only; functional operation of the product at these Input Voltage GND to VS+ 0.3 V or any other conditions above those indicated in the operational Output Short-Circuit Duration to GND Indefinite section of this specification is not implied. Operation beyond Storage Temperature Range −65°C to +150°C the maximum operating conditions for extended periods may Operating Temperature Range −40°C to +85°C affect product reliability. Junction Temperature Range, CP Package −65°C to +150°C
ESD CAUTION
Lead Temperature Range (Soldering 10 sec) 300°C Rev. C | Page 5 of 14 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS TIMING CHARACTERISTICS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TERMINOLOGY FUNCTIONAL DESCRIPTION SETTING FULL-SCALE OUTPUT CURRENT POWER SUPPLIES SERIAL DATA INTERFACE STANDBY AND RESET MODES POWER DISSIPATION USING MULTIPLE ADN8810 DEVICES FOR ADDITIONAL OUTPUT CURRENT ADDING DITHER TO THE OUTPUT CURRENT DRIVING COMMON-ANODE LASER DIODES PCB LAYOUT RECOMMENDATIONS SUGGESTED PAD LAYOUT FOR CP-24 PACKAGE OUTLINE DIMENSIONS ORDERING GUIDE
