PLF2000 Series. OUTPUT DESCRIPTION. For PLF2105. For PLF2135
Línea de modelo para esta hoja de datos
Versión de texto del documento

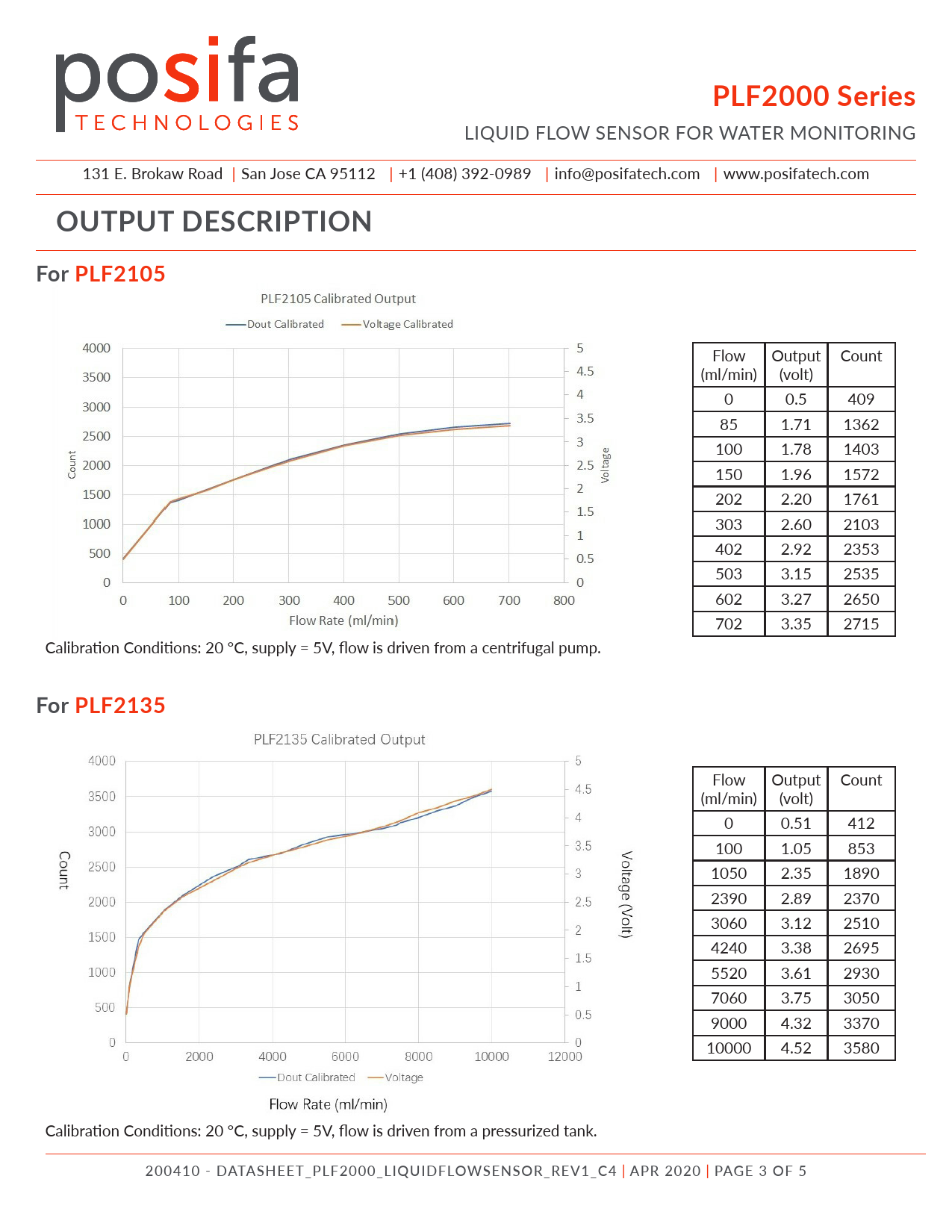

PLF2000 Series
LIQUID FLOW SENSOR FOR WATER MONITORING 131 E. Brokaw Road | San Jose CA 95112 | +1 (408) 392-0989 | info@posifatech.com | www.posifatech.com
OUTPUT DESCRIPTION For PLF2105
Flow Output Count (ml/min) (volt) 0 0.5 409 85 1.71 1362 100 1.78 1403 150 1.96 1572 202 2.20 1761 303 2.60 2103 402 2.92 2353 503 3.15 2535 602 3.27 2650 702 3.35 2715 Calibration Conditions: 20 °C, supply = 5V, flow is driven from a centrifugal pump.
For PLF2135
Flow Output Count (ml/min) (volt) 0 0.51 412 100 1.05 853 1050 2.35 1890 2390 2.89 2370 3060 3.12 2510 4240 3.38 2695 5520 3.61 2930 7060 3.75 3050 9000 4.32 3370 10000 4.52 3580 Calibration Conditions: 20 °C, supply = 5V, flow is driven from a pressurized tank. 200410 - Datasheet_PLF2000_LiquiDFLowsensor_rev1_C4 | aPr 2020 | PaGe 3 oF 5
