Datasheet TLP5231 (Toshiba) - 8
| Fabricante | Toshiba |
| Descripción | Photocouplers. Infrared LED & Photo IC |
| Páginas / Página | 30 / 8 — TLP5231. 10. Isolation. Characteristics. (Unless. otherwise. specified,. … |
| Formato / tamaño de archivo | PDF / 1.8 Mb |
| Idioma del documento | Inglés |

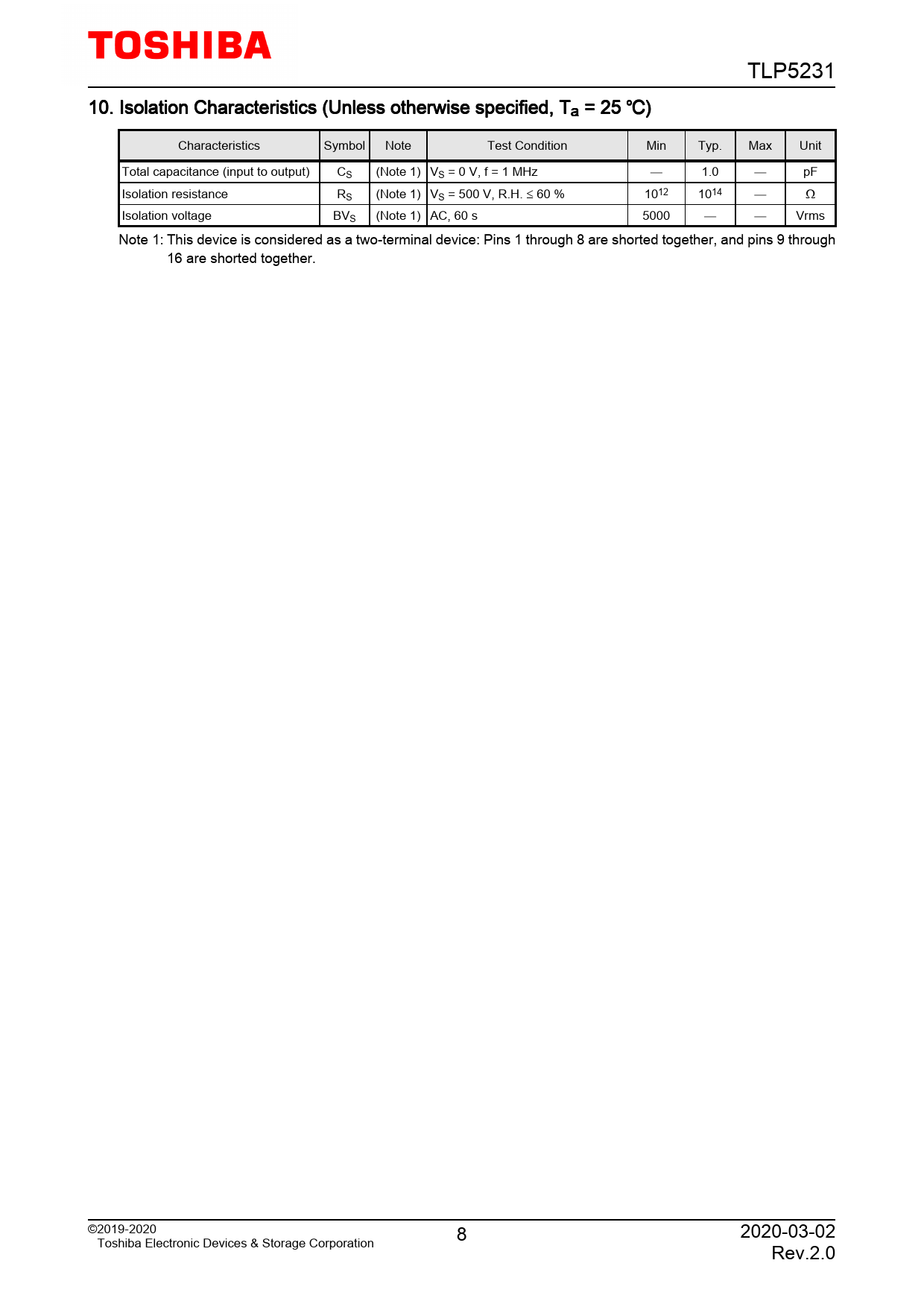

TLP5231. 10. Isolation. Characteristics. (Unless. otherwise. specified,. Ta. =. 25. ). Characteristics. Symbol. Note. Test. Condition. Min. Typ. Max. Unit
Línea de modelo para esta hoja de datos
Versión de texto del documento
TLP5231 10. Isolation Characteristics (Unless otherwise specified, Ta = 25 ) Characteristics Symbol Note Test Condition Min Typ. Max Unit Total capacitance (input to output) CS (Note 1) VS = 0 V, f = 1 MHz 1.0 pF Isolation resistance RS (Note 1) VS = 500 V, R.H. ≤ 60 % 1012 1014 Ω Isolation voltage BVS (Note 1) AC, 60 s 5000 Vrms Note 1: This device is considered as a two-terminal device: Pins 1 through 8 are shorted together, and pins 9 through 16 are shorted together. ©2019-2020 8 2020-03-02 Toshiba Electronic Devices & Storage Corporation Rev.2.0
