Datasheet LTC6990 (Analog Devices) - 5
| Fabricante | Analog Devices |
| Descripción | TimerBlox: Voltage Controlled Silicon Oscillator |
| Páginas / Página | 30 / 5 — ELECTRICAL CHARACTERISTICS. Note 11:. TYPICAL PERFORMANCE CHARACTERISTICS … |
| Revisión | D |
| Formato / tamaño de archivo | PDF / 1,000 Kb |
| Idioma del documento | Inglés |
ELECTRICAL CHARACTERISTICS. Note 11:. TYPICAL PERFORMANCE CHARACTERISTICS V+ = 3.3V, unless otherwise noted. Frequency Error
Línea de modelo para esta hoja de datos
- LTC6990CDCB#TRMPBF LTC6990CDCB#TRPBF LTC6990CS6#TRMPBF LTC6990CS6#TRPBF LTC6990HDCB#TRMPBF LTC6990HDCB#TRPBF LTC6990HS6#TRMPBF LTC6990HS6#TRPBF LTC6990HS6#WTRMPBF LTC6990HS6#WTRPBF LTC6990IDCB#TRMPBF LTC6990IDCB#TRPBF LTC6990IS6#TRMPBF LTC6990IS6#TRPBF LTC6990IS6#WTRMPBF LTC6990IS6#WTRPBF LTC6990MPS6#TRMPBF LTC6990MPS6#TRPBF
Versión de texto del documento
LTC6990
ELECTRICAL CHARACTERISTICS Note 11:
Long-term drift of silicon oscillators is primarily due to the the square root and multiply by the typical drift number. For instance, a movement of ions and impurities within the silicon and is tested at 30°C year is 8.77kHr and would yield a drift of 266ppm at 90ppm/√kHr. Drift under otherwise nominal operating conditions. Long-term drift is specified without power applied to the device may be approximated as 1/10th of the as ppm/√kHr due to the typically nonlinear nature of the drift. To calculate drift with power, or 9ppm/√kHr for a 90ppm/√kHr device. drift for a set time period, translate that time into thousands of hours, take

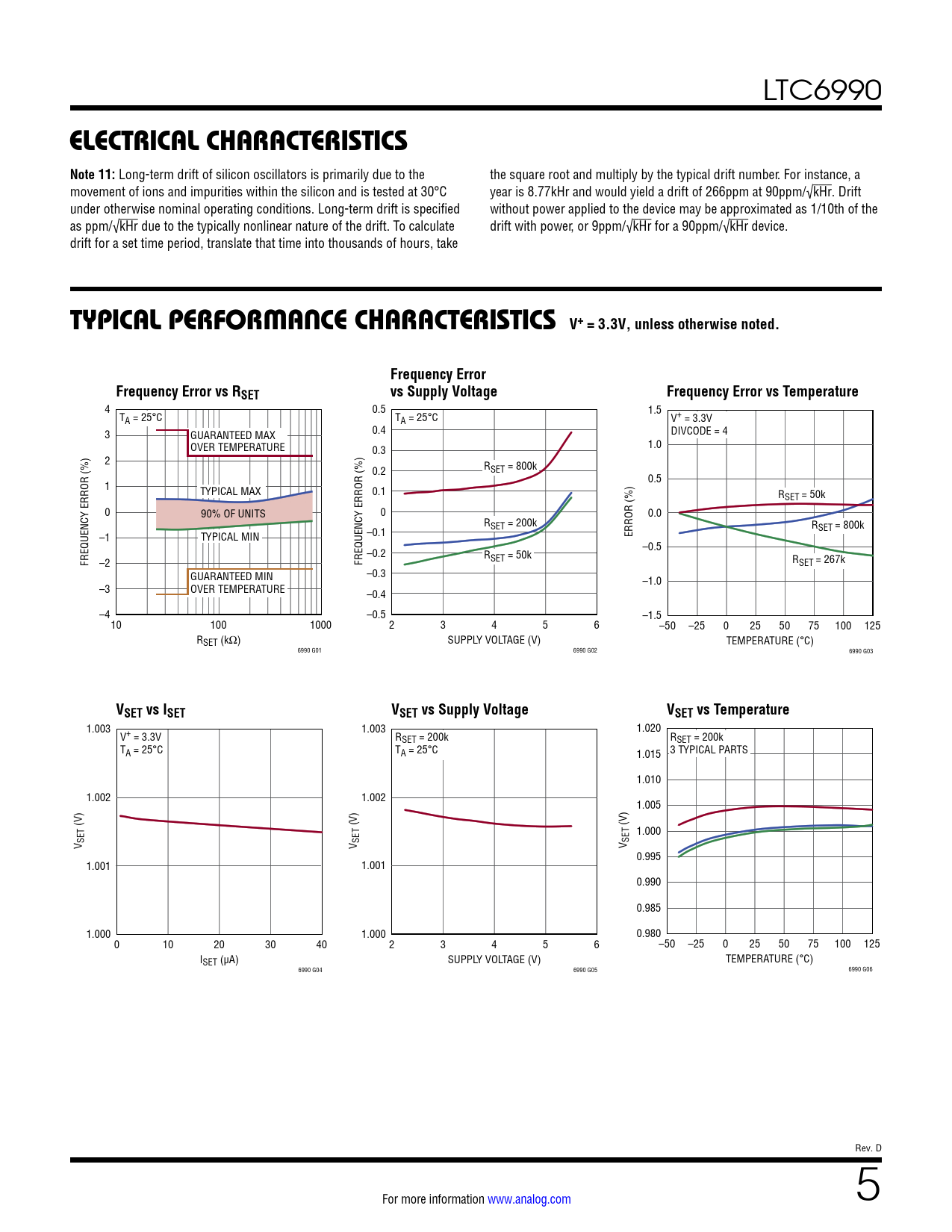

TYPICAL PERFORMANCE CHARACTERISTICS V+ = 3.3V, unless otherwise noted. Frequency Error Frequency Error vs RSET vs Supply Voltage Frequency Error vs Temperature
4 0.5 1.5 TA = 25°C TA = 25°C V+ = 3.3V 3 GUARANTEED MAX 0.4 DIVCODE = 4 OVER TEMPERATURE 0.3 1.0 2 0.2 RSET = 800k 0.5 1 TYPICAL MAX 0.1 RSET = 50k 0 90% OF UNITS 0 0.0 RSET = 200k RSET = 800k –1 TYPICAL MIN –0.1 ERROR (%) –0.2 –0.5 R FREQUENCY ERROR (%) –2 FREQUENCY ERROR (%) SET = 50k RSET = 267k GUARANTEED MIN –0.3 –1.0 –3 OVER TEMPERATURE –0.4 –4 –0.5 –1.5 10 100 1000 2 3 4 5 6 –50 –25 0 25 50 75 100 125 RSET (kΩ) SUPPLY VOLTAGE (V) TEMPERATURE (°C) 6990 G01 6990 G02 6990 G03
VSET vs ISET VSET vs Supply Voltage VSET vs Temperature
1.003 1.003 1.020 V+ = 3.3V RSET = 200k RSET = 200k TA = 25°C TA = 25°C 1.015 3 TYPICAL PARTS 1.010 1.002 1.002 1.005 (V) (V) (V) 1.000 V SET V SET V SET 0.995 1.001 1.001 0.990 0.985 1.000 1.000 0.980 0 10 20 30 40 2 3 4 5 6 –50 –25 0 25 50 75 100 125 ISET (µA) SUPPLY VOLTAGE (V) TEMPERATURE (°C) 6990 G04 6990 G05 6990 G06 Rev. D For more information www.analog.com 5 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
