Datasheet TMP03, TMP04 (Analog Devices) - 2
| Fabricante | Analog Devices |
| Descripción | Serial Digital Output Thermometers |
| Páginas / Página | 17 / 2 — TMP03/TMP04–SPECIFICATIONS. TMP03F (V+ = 5 V, –40. 100. C, unless … |
| Revisión | B |
| Formato / tamaño de archivo | PDF / 316 Kb |
| Idioma del documento | Inglés |
TMP03/TMP04–SPECIFICATIONS. TMP03F (V+ = 5 V, –40. 100. C, unless otherwise noted.) Parameter. Symbol. Conditions. Min. Typ. Max. Unit
Línea de modelo para esta hoja de datos
Versión de texto del documento

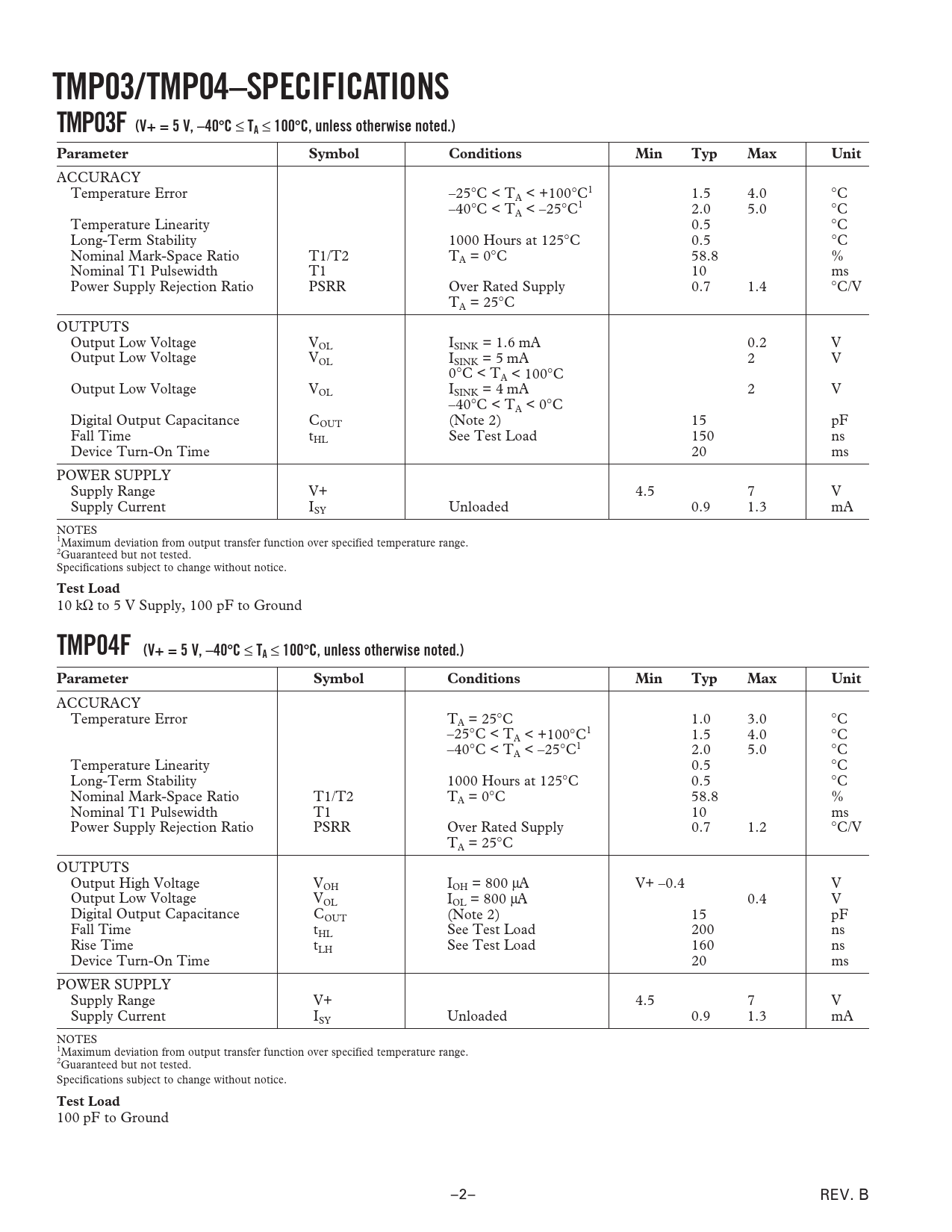

TMP03/TMP04–SPECIFICATIONS TMP03F (V+ = 5 V, –40 C
≤
TA
≤
100 C, unless otherwise noted.) Parameter Symbol Conditions Min Typ Max Unit
ACCURACY Temperature Error –25°C < TA < +100°C1 1.5 4.0 °C –40°C < TA < –25°C1 2.0 5.0 °C Temperature Linearity 0.5 °C Long-Term Stability 1000 Hours at 125°C 0.5 °C Nominal Mark-Space Ratio T1/T2 TA = 0°C 58.8 % Nominal T1 Pulsewidth T1 10 ms Power Supply Rejection Ratio PSRR Over Rated Supply 0.7 1.4 °C/V TA = 25°C OUTPUTS Output Low Voltage VOL ISINK = 1.6 mA 0.2 V Output Low Voltage VOL ISINK = 5 mA 2 V 0°C < TA < 100°C Output Low Voltage VOL ISINK = 4 mA 2 V –40°C < TA < 0°C Digital Output Capacitance COUT (Note 2) 15 pF Fall Time tHL See Test Load 150 ns Device Turn-On Time 20 ms POWER SUPPLY Supply Range V+ 4.5 7 V Supply Current ISY Unloaded 0.9 1.3 mA NOTES 1Maximum deviation from output transfer function over specified temperature range. 2Guaranteed but not tested. Specifications subject to change without notice.
Test Load
10 kΩ to 5 V Supply, 100 pF to Ground
TMP04F (V+ = 5 V, –40 C
≤
TA
≤
100 C, unless otherwise noted.) Parameter Symbol Conditions Min Typ Max Unit
ACCURACY Temperature Error TA = 25°C 1.0 3.0 °C –25°C < TA < +100°C1 1.5 4.0 °C –40°C < TA < –25°C1 2.0 5.0 °C Temperature Linearity 0.5 °C Long-Term Stability 1000 Hours at 125°C 0.5 °C Nominal Mark-Space Ratio T1/T2 TA = 0°C 58.8 % Nominal T1 Pulsewidth T1 10 ms Power Supply Rejection Ratio PSRR Over Rated Supply 0.7 1.2 °C/V TA = 25°C OUTPUTS Output High Voltage VOH IOH = 800 µA V+ –0.4 V Output Low Voltage VOL IOL = 800 µA 0.4 V Digital Output Capacitance COUT (Note 2) 15 pF Fall Time tHL See Test Load 200 ns Rise Time tLH See Test Load 160 ns Device Turn-On Time 20 ms POWER SUPPLY Supply Range V+ 4.5 7 V Supply Current ISY Unloaded 0.9 1.3 mA NOTES 1Maximum deviation from output transfer function over specified temperature range. 2Guaranteed but not tested. Specifications subject to change without notice.
Test Load
100 pF to Ground –2– REV. B Document Outline RevHistory_TMP03_04.pdf REVISION HISTORY
≤
TA
≤
100 C, unless otherwise noted.) Parameter Symbol Conditions Min Typ Max Unit
ACCURACY Temperature Error –25°C < TA < +100°C1 1.5 4.0 °C –40°C < TA < –25°C1 2.0 5.0 °C Temperature Linearity 0.5 °C Long-Term Stability 1000 Hours at 125°C 0.5 °C Nominal Mark-Space Ratio T1/T2 TA = 0°C 58.8 % Nominal T1 Pulsewidth T1 10 ms Power Supply Rejection Ratio PSRR Over Rated Supply 0.7 1.4 °C/V TA = 25°C OUTPUTS Output Low Voltage VOL ISINK = 1.6 mA 0.2 V Output Low Voltage VOL ISINK = 5 mA 2 V 0°C < TA < 100°C Output Low Voltage VOL ISINK = 4 mA 2 V –40°C < TA < 0°C Digital Output Capacitance COUT (Note 2) 15 pF Fall Time tHL See Test Load 150 ns Device Turn-On Time 20 ms POWER SUPPLY Supply Range V+ 4.5 7 V Supply Current ISY Unloaded 0.9 1.3 mA NOTES 1Maximum deviation from output transfer function over specified temperature range. 2Guaranteed but not tested. Specifications subject to change without notice.
Test Load
10 kΩ to 5 V Supply, 100 pF to Ground
TMP04F (V+ = 5 V, –40 C
≤
TA
≤
100 C, unless otherwise noted.) Parameter Symbol Conditions Min Typ Max Unit
ACCURACY Temperature Error TA = 25°C 1.0 3.0 °C –25°C < TA < +100°C1 1.5 4.0 °C –40°C < TA < –25°C1 2.0 5.0 °C Temperature Linearity 0.5 °C Long-Term Stability 1000 Hours at 125°C 0.5 °C Nominal Mark-Space Ratio T1/T2 TA = 0°C 58.8 % Nominal T1 Pulsewidth T1 10 ms Power Supply Rejection Ratio PSRR Over Rated Supply 0.7 1.2 °C/V TA = 25°C OUTPUTS Output High Voltage VOH IOH = 800 µA V+ –0.4 V Output Low Voltage VOL IOL = 800 µA 0.4 V Digital Output Capacitance COUT (Note 2) 15 pF Fall Time tHL See Test Load 200 ns Rise Time tLH See Test Load 160 ns Device Turn-On Time 20 ms POWER SUPPLY Supply Range V+ 4.5 7 V Supply Current ISY Unloaded 0.9 1.3 mA NOTES 1Maximum deviation from output transfer function over specified temperature range. 2Guaranteed but not tested. Specifications subject to change without notice.
Test Load
100 pF to Ground –2– REV. B Document Outline RevHistory_TMP03_04.pdf REVISION HISTORY
