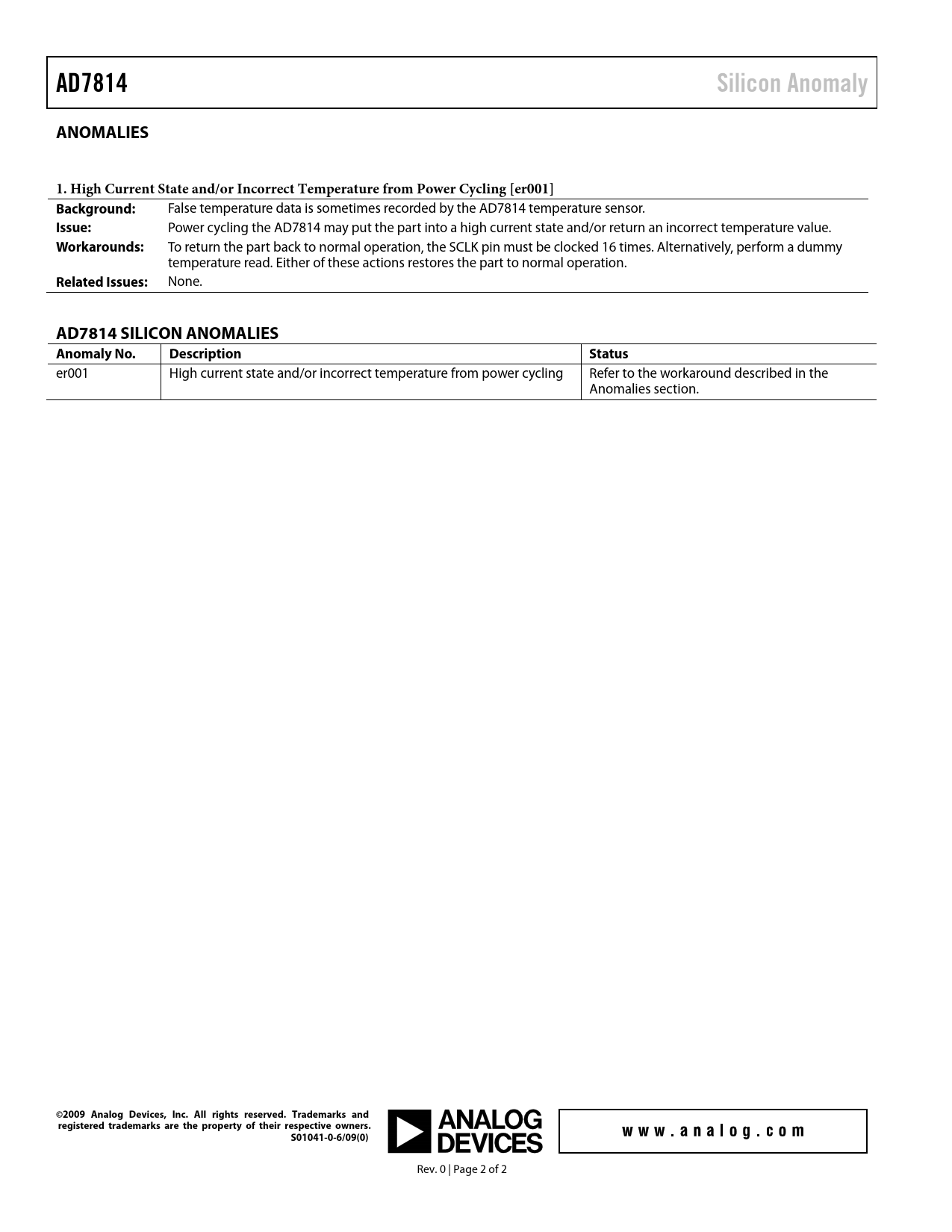

AD7814 Silicon Anomaly ANOMALIES 1. High Current State and/or Incorrect Temperature from Power Cycling [er001] Background:
False temperature data is sometimes recorded by the AD7814 temperature sensor.
Issue:
Power cycling the AD7814 may put the part into a high current state and/or return an incorrect temperature value.
Workarounds:
To return the part back to normal operation, the SCLK pin must be clocked 16 times. Alternatively, perform a dummy temperature read. Either of these actions restores the part to normal operation.
Related Issues:
None.
AD7814 SILICON ANOMALIES Anomaly No. Description Status
er001 High current state and/or incorrect temperature from power cycling Refer to the workaround described in the Anomalies section.
©2009 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners. S01041-0-6/09(0)
