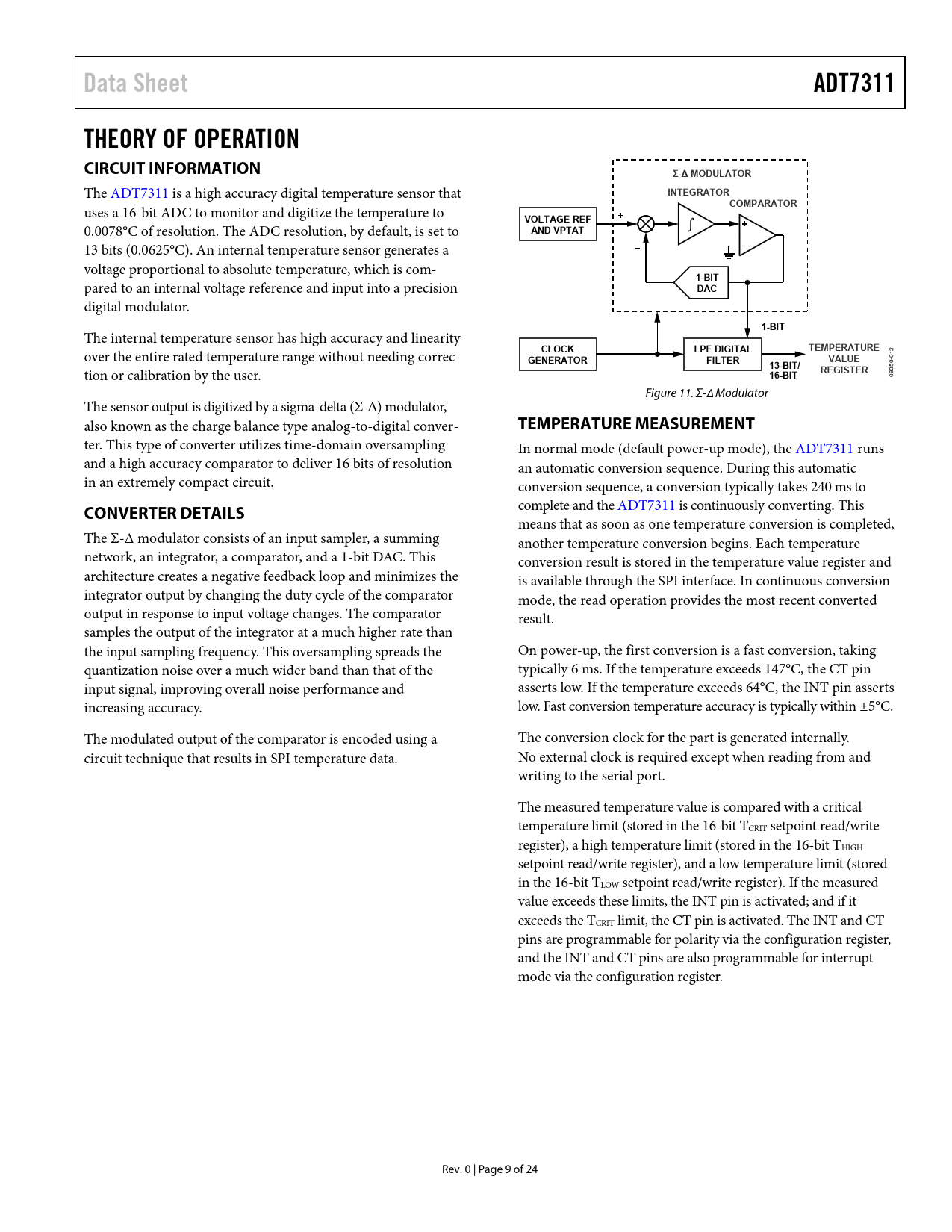

Data Sheet ADT7311 THEORY OF OPERATION CIRCUIT INFORMATION Σ-∆ MODULATOR
The ADT7311 is a high accuracy digital temperature sensor that
INTEGRATOR COMPARATOR
uses a 16-bit ADC to monitor and digitize the temperature to
VOLTAGE REF
0.0078°C of resolution. The ADC resolution, by default, is set to
AND VPTAT
13 bits (0.0625°C). An internal temperature sensor generates a voltage proportional to absolute temperature, which is com-
1-BIT
pared to an internal voltage reference and input into a precision
DAC
digital modulator.
1-BIT
The internal temperature sensor has high accuracy and linearity
CLOCK LPF DIGITAL TEMPERATURE
2 over the entire rated temperature range without needing correc- 1
GENERATOR FILTER VALUE
0
13-BIT/
0- 05 tion or calibration by the user.
REGISTER 16-BIT
09 Figure 11. Σ-∆ Modulator The sensor output is digitized by a sigma-delta (Σ-Δ) modulator, also known as the charge balance type analog-to-digital conver-
TEMPERATURE MEASUREMENT
ter. This type of converter utilizes time-domain oversampling In normal mode (default power-up mode), the ADT7311 runs and a high accuracy comparator to deliver 16 bits of resolution an automatic conversion sequence. During this automatic in an extremely compact circuit. conversion sequence, a conversion typically takes 240 ms to
