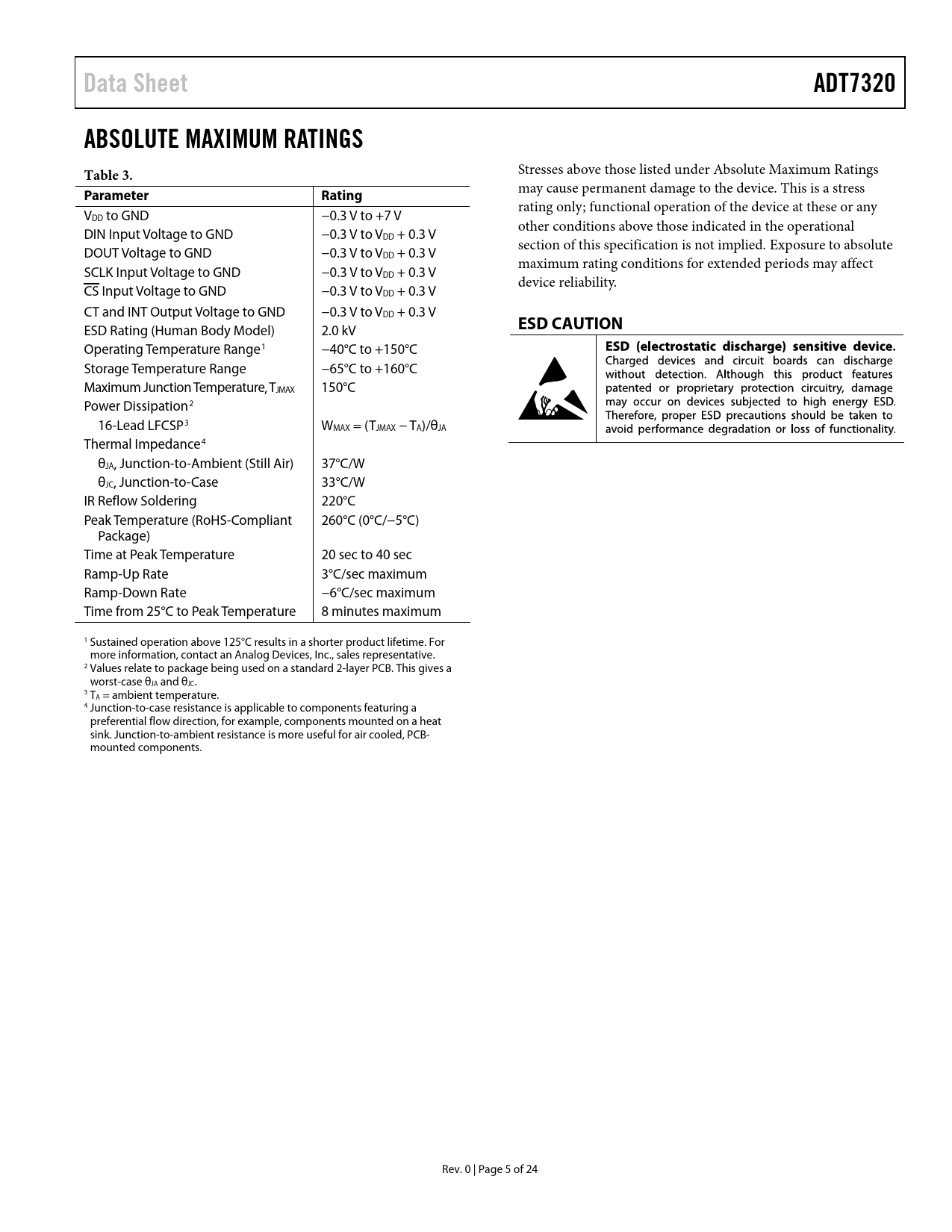

Data Sheet ADT7320 ABSOLUTE MAXIMUM RATINGS Table 3.
Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress
Parameter Rating
rating only; functional operation of the device at these or any VDD to GND −0.3 V to +7 V other conditions above those indicated in the operational DIN Input Voltage to GND −0.3 V to VDD + 0.3 V section of this specification is not implied. Exposure to absolute DOUT Voltage to GND −0.3 V to VDD + 0.3 V maximum rating conditions for extended periods may affect SCLK Input Voltage to GND −0.3 V to VDD + 0.3 V device reliability. CS Input Voltage to GND −0.3 V to VDD + 0.3 V CT and INT Output Voltage to GND −0.3 V to VDD + 0.3 V
