Datasheet LTM8063 (Analog Devices) - 8
| Fabricante | Analog Devices |
| Descripción | 40VIN, 2A Silent Switcher µModule Regulator |
| Páginas / Página | 24 / 8 — TYPICAL PERFORMANCE CHARACTERISTICS TA = 25°C, unless otherwise noted. … |
| Revisión | C |
| Formato / tamaño de archivo | PDF / 2.6 Mb |
| Idioma del documento | Inglés |

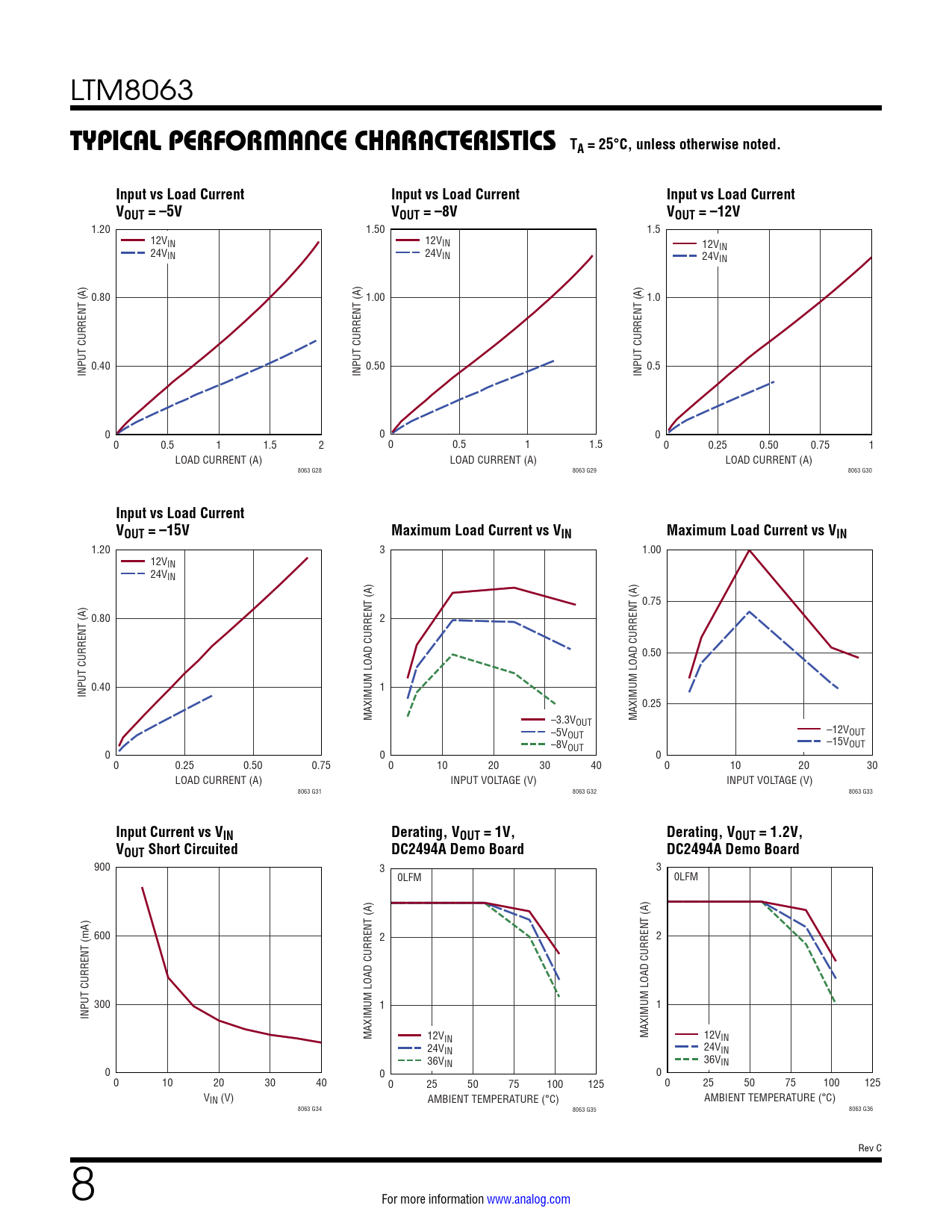

TYPICAL PERFORMANCE CHARACTERISTICS TA = 25°C, unless otherwise noted. Input vs Load Current. VOUT = –5V. VOUT = –8V
Línea de modelo para esta hoja de datos
Versión de texto del documento
LTM8063
TYPICAL PERFORMANCE CHARACTERISTICS TA = 25°C, unless otherwise noted. Input vs Load Current Input vs Load Current Input vs Load Current VOUT = –5V VOUT = –8V VOUT = –12V
1.20 1.50 1.5 12VIN 12VIN 12V 24V IN IN 24VIN 24VIN 0.80 1.00 1.0 0.40 0.50 0.5 INPUT CURRENT (A) INPUT CURRENT (A) INPUT CURRENT (A) 0 0 0 0 0.5 1 1.5 2 0 0.5 1 1.5 0 0.25 0.50 0.75 1 LOAD CURRENT (A) LOAD CURRENT (A) LOAD CURRENT (A) 8063 G28 8063 G29 8063 G30
Input vs Load Current VOUT = –15V Maximum Load Current vs VIN Maximum Load Current vs VIN
1.20 3 1.00 12VIN 24VIN 0.75 0.80 2 0.50 0.40 1 INPUT CURRENT (A) 0.25 MAXIMUM LOAD CURRENT (A) –3.3VOUT MAXIMUM LOAD CURRENT (A) –5V –12V OUT OUT –8V –15V OUT OUT 0 0 0 0 0.25 0.50 0.75 0 10 20 30 40 0 10 20 30 LOAD CURRENT (A) INPUT VOLTAGE (V) INPUT VOLTAGE (V) 8063 G31 8063 G32 8063 G33
Input Current vs VIN Derating, VOUT = 1V, Derating, VOUT = 1.2V, VOUT Short Circuited DC2494A Demo Board DC2494A Demo Board
900 3 3 0LFM 0LFM 600 2 2 300 1 1 INPUT CURRENT (mA) MAXIMUM LOAD CURRENT (A) 12VIN MAXIMUM LOAD CURRENT (A) 12VIN 24VIN 24VIN 36VIN 36VIN 0 0 0 0 10 20 30 40 0 25 50 75 100 125 0 25 50 75 100 125 VIN (V) AMBIENT TEMPERATURE (°C) AMBIENT TEMPERATURE (°C) 8063 G34 8063 G35 8063 G36 Rev C 8 For more information www.analog.com Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Pin Configuration Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Typical Applications Package Photo Package Description Revision History Typical Application Related Parts
