Datasheet LTC3308A (Analog Devices) - 10
| Fabricante | Analog Devices |
| Descripción | 5V, 4A Synchronous Step-Down Silent Switcher in 2mm x 2mm LQFN |
| Páginas / Página | 24 / 10 — BLOCK DIAGRAM |
| Formato / tamaño de archivo | PDF / 2.4 Mb |
| Idioma del documento | Inglés |

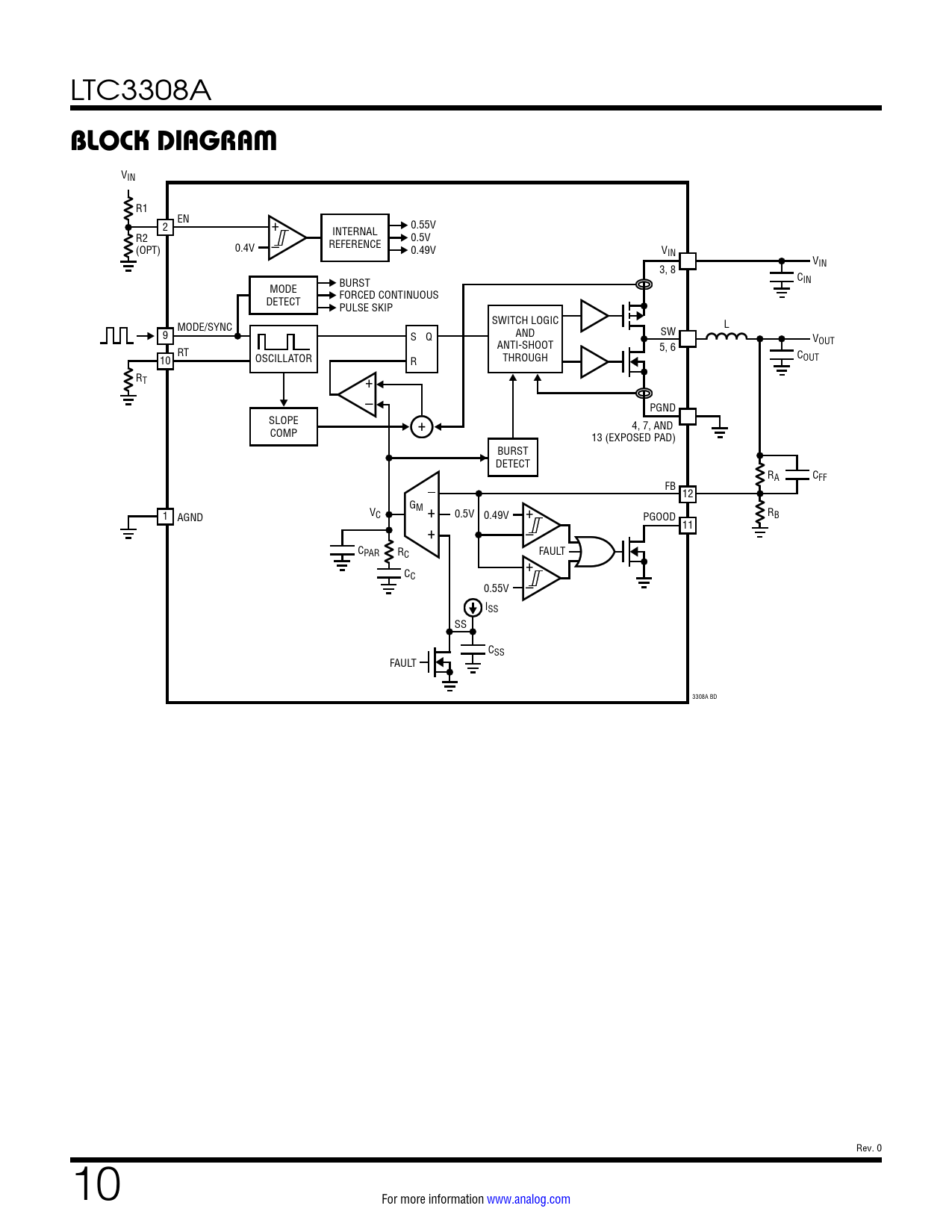

BLOCK DIAGRAM
Línea de modelo para esta hoja de datos
- LTC3308AEV#TRMPBF LTC3308AEV#TRPBF LTC3308AEV#WTRMPBF LTC3308AEV#WTRPBF LTC3308AHV#TRMPBF LTC3308AHV#TRPBF LTC3308AHV#WTRMPBF LTC3308AHV#WTRPBF LTC3308AIV#TRMPBF LTC3308AIV#TRPBF LTC3308AIV#WTRMPBF LTC3308AIV#WTRPBF LTC3308AJV#TRMPBF LTC3308AJV#TRPBF LTC3308AJV#WTRMPBF LTC3308AJV#WTRPBF LTC3308AMPV#TRMPBF LTC3308AMPV#TRPBF
Versión de texto del documento
LTC3308A
BLOCK DIAGRAM
VIN R1 EN 2 + INTERNAL 0.55V R2 0.5V (OPT) 0.4V – REFERENCE 0.49V VIN VIN 3, 8 CIN MODE BURST DETECT FORCED CONTINUOUS PULSE SKIP SWITCH LOGIC L MODE/SYNC AND SW 9 S Q VOUT ANTI-SHOOT RT 5, 6 10 OSCILLATOR THROUGH COUT R RT + – PGND SLOPE 4, 7, AND COMP 13 (EXPOSED PAD) BURST DETECT RA CFF FB 12 GM 1 AGND VC 0.5V 0.49V + PGOOD RB 11 – CPAR R FAULT C + CC 0.55V – ISS SS CSS FAULT 3308A BD Rev. 0 10 For more information www.analog.com Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Pin Configuration Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Typical Applications Package Description Typical Application Related Parts
