Datasheet IR3889 IR OptiMOS IPOL (Infineon) - 4
| Fabricante | Infineon |
| Descripción | A single-voltage synchronous Buck regulator |
| Páginas / Página | 50 / 4 — OptiMOS™ IPOL. 30 A single-voltage synchronous Buck regulator. Ordering … |
| Revisión | 02_04 |
| Formato / tamaño de archivo | PDF / 2.9 Mb |
| Idioma del documento | Inglés |
OptiMOS™ IPOL. 30 A single-voltage synchronous Buck regulator. Ordering information. Ordering Information. Base Part Number
Línea de modelo para esta hoja de datos
Versión de texto del documento
IR OptiMOS™ IPOL 30 A single-voltage synchronous Buck regulator Ordering information 1 Ordering information 1. Ordering Information Base Part Number Package Type Standard Pack Form and Qty Orderable Part Number
IR3889M QFN 5 mm x 6 mm Tape and Reel 5000 IR3889MTRPBF IR3889 PBF Lead Free TR Tape and Reel M Package Type E D h MO M ct / D N a N N E L O G S / T NC NC NC A V FB SS 36 35 34 33 32 31 30 29 ILIM 1 28 NC PGood 2 27 En Vin 3 26 BOOT VCC/LDO 4 25 PHASE 5 VDRV 24 PVin GATEL 37 GATEL 6 23 PVin PGND 7 22 PVin PGND 8 21 PVin PGND 9 20 PVin 10 19 PGND PGND 11 12 13 14 15 16 17 18 SW SW SW SW SW SW SW SW

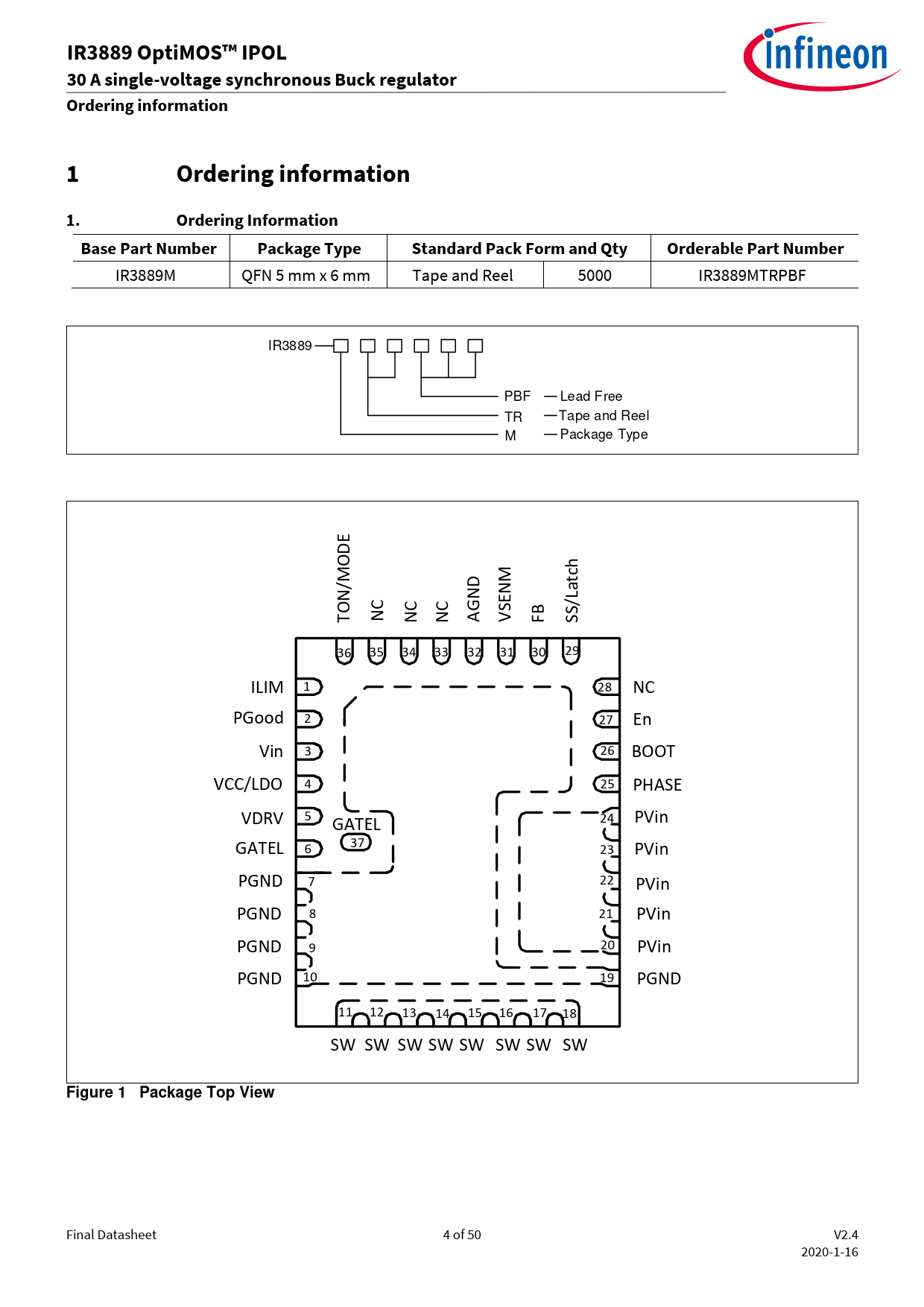

Figure 1 Package Top View
