PI6CG33401C. Input Electrical Characteristics. Symbol. Parameters. Conditions. Min. Typ. Max. Units. Crystal Characteristic
Línea de modelo para esta hoja de datos
Versión de texto del documento
A product Line of Diodes Incorporated

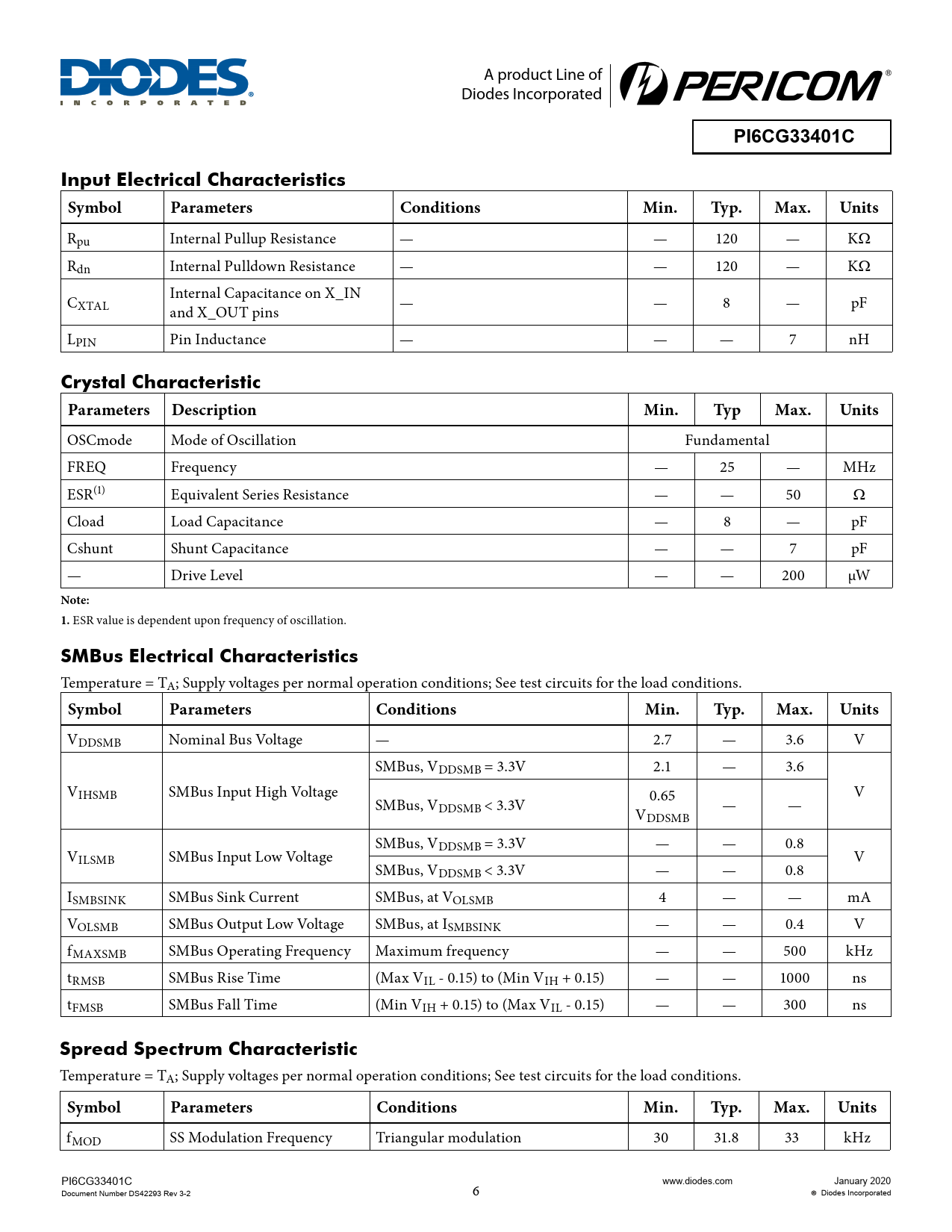

PI6CG33401C Input Electrical Characteristics Symbol Parameters Conditions Min. Typ. Max. Units
Rpu Internal Pullup Resistance — — 120 — KW Rdn Internal Pulldown Resistance — — 120 — KW C Internal Capacitance on X_IN XTAL and X_OUT pins — — 8 — pF LPIN Pin Inductance — — — 7 nH
Crystal Characteristic Parameters Description Min. Typ Max. Units
OSCmode Mode of Oscillation Fundamental FREQ Frequency — 25 — MHz ESR(1) Equivalent Series Resistance — — 50 W Cload Load Capacitance — 8 — pF Cshunt Shunt Capacitance — — 7 pF — Drive Level — — 200 µW
Note: 1.
ESR value is dependent upon frequency of oscillation.
SMBus Electrical Characteristics
Temperature = TA; Supply voltages per normal operation conditions; See test circuits for the load conditions.
Symbol Parameters Conditions Min. Typ. Max. Units
VDDSMB Nominal Bus Voltage — 2.7 — 3.6 V SMBus, VDDSMB = 3.3V 2.1 — 3.6 VIHSMB SMBus Input High Voltage V SMBus, VDDSMB < 3.3V 0.65 V — — DDSMB SMBus, V V DDSMB = 3.3V — — 0.8 ILSMB SMBus Input Low Voltage V SMBus, VDDSMB < 3.3V — — 0.8 ISMBSINK SMBus Sink Current SMBus, at VOLSMB 4 — — mA VOLSMB SMBus Output Low Voltage SMBus, at ISMBSINK — — 0.4 V fMAXSMB SMBus Operating Frequency Maximum frequency — — 500 kHz tRMSB SMBus Rise Time (Max VIL - 0.15) to (Min VIH + 0.15) — — 1000 ns tFMSB SMBus Fall Time (Min VIH + 0.15) to (Max VIL - 0.15) — — 300 ns
Spread Spectrum Characteristic
Temperature = TA; Supply voltages per normal operation conditions; See test circuits for the load conditions.
Symbol Parameters Conditions Min. Typ. Max. Units
fMOD SS Modulation Frequency Triangular modulation 30 31.8 33 kHz PI6CG33401C www.diodes.com January 2020 Document Number DS42293 Rev 3-2 6 Diodes Incorporated
PI6CG33401C Input Electrical Characteristics Symbol Parameters Conditions Min. Typ. Max. Units
Rpu Internal Pullup Resistance — — 120 — KW Rdn Internal Pulldown Resistance — — 120 — KW C Internal Capacitance on X_IN XTAL and X_OUT pins — — 8 — pF LPIN Pin Inductance — — — 7 nH
Crystal Characteristic Parameters Description Min. Typ Max. Units
OSCmode Mode of Oscillation Fundamental FREQ Frequency — 25 — MHz ESR(1) Equivalent Series Resistance — — 50 W Cload Load Capacitance — 8 — pF Cshunt Shunt Capacitance — — 7 pF — Drive Level — — 200 µW
Note: 1.
ESR value is dependent upon frequency of oscillation.
SMBus Electrical Characteristics
Temperature = TA; Supply voltages per normal operation conditions; See test circuits for the load conditions.
Symbol Parameters Conditions Min. Typ. Max. Units
VDDSMB Nominal Bus Voltage — 2.7 — 3.6 V SMBus, VDDSMB = 3.3V 2.1 — 3.6 VIHSMB SMBus Input High Voltage V SMBus, VDDSMB < 3.3V 0.65 V — — DDSMB SMBus, V V DDSMB = 3.3V — — 0.8 ILSMB SMBus Input Low Voltage V SMBus, VDDSMB < 3.3V — — 0.8 ISMBSINK SMBus Sink Current SMBus, at VOLSMB 4 — — mA VOLSMB SMBus Output Low Voltage SMBus, at ISMBSINK — — 0.4 V fMAXSMB SMBus Operating Frequency Maximum frequency — — 500 kHz tRMSB SMBus Rise Time (Max VIL - 0.15) to (Min VIH + 0.15) — — 1000 ns tFMSB SMBus Fall Time (Min VIH + 0.15) to (Max VIL - 0.15) — — 300 ns
Spread Spectrum Characteristic
Temperature = TA; Supply voltages per normal operation conditions; See test circuits for the load conditions.
Symbol Parameters Conditions Min. Typ. Max. Units
fMOD SS Modulation Frequency Triangular modulation 30 31.8 33 kHz PI6CG33401C www.diodes.com January 2020 Document Number DS42293 Rev 3-2 6 Diodes Incorporated
