A product Line of Diodes Incorporated

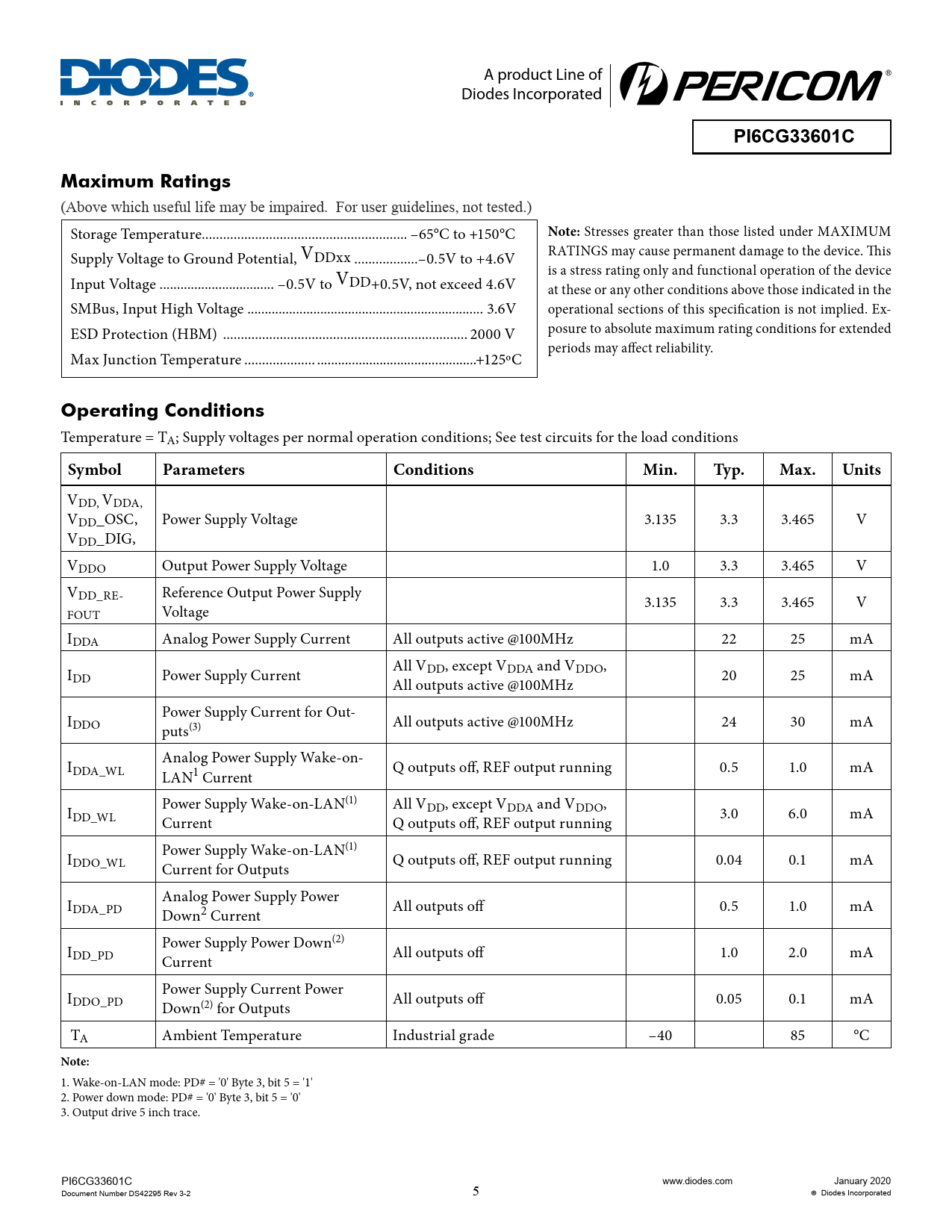

PI6CG33601C Maximum Ratings
(Above which useful life may be impaired. For user guidelines, not tested.) Storage Temperature .. –65°C to +150°C
Note:
Stresses greater than those listed under MAXIMUM Supply Voltage to Ground Potential, VDDxx ..–0.5V to +4.6V RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device Input Voltage ... –0.5V to VDD+0.5V, not exceed 4.6V at these or any other conditions above those indicated in the SMBus, Input High Voltage .. 3.6V operational sections of this specification is not implied. Ex- ESD Protection (HBM) ... 2000 V posure to absolute maximum rating conditions for extended periods may affect reliability. Max Junction Temperature ..+125ºC
Operating Conditions
Temperature = TA; Supply voltages per normal operation conditions; See test circuits for the load conditions
Symbol Parameters Conditions Min. Typ. Max. Units
VDD, VDDA, VDD_OSC, Power Supply Voltage 3.135 3.3 3.465 V VDD_DIG, VDDO Output Power Supply Voltage 1.0 3.3 3.465 V VDD_RE- Reference Output Power Supply FOUT Voltage 3.135 3.3 3.465 V IDDA Analog Power Supply Current All outputs active @100MHz 22 25 mA IDD Power Supply Current All VDD, except VDDA and VDDO, All outputs active @100MHz 20 25 mA I Power Supply Current for Out- DDO puts(3) All outputs active @100MHz 24 30 mA I Analog Power Supply Wake-on- DDA_WL LAN1 Current Q outputs off, REF output running 0.5 1.0 mA I Power Supply Wake-on-LAN(1) All VDD, except VDDA and VDDO, DD_WL Current Q outputs off, REF output running 3.0 6.0 mA I Power Supply Wake-on-LAN(1) DDO_WL Current for Outputs Q outputs off, REF output running 0.04 0.1 mA I Analog Power Supply Power DDA_PD Down2 Current All outputs off 0.5 1.0 mA I Power Supply Power Down(2) DD_PD Current All outputs off 1.0 2.0 mA I Power Supply Current Power DDO_PD Down(2) for Outputs All outputs off 0.05 0.1 mA TA Ambient Temperature Industrial grade –40 85 °C
Note:
1. Wake-on-LAN mode: PD# = '0' Byte 3, bit 5 = '1' 2. Power down mode: PD# = '0' Byte 3, bit 5 = '0' 3. Output drive 5 inch trace. PI6CG33601C www.diodes.com January 2020 Document Number DS42295 Rev 3-2 5 Diodes Incorporated
