PI6CG33402C. SMBus Address Selection Table. SADR. Address. +Read/Write Bit. Power Management Table(3). PD#. SMBus OE bit. OEn#. Qn+. Qn-
Línea de modelo para esta hoja de datos
Versión de texto del documento
A product Line of Diodes Incorporated

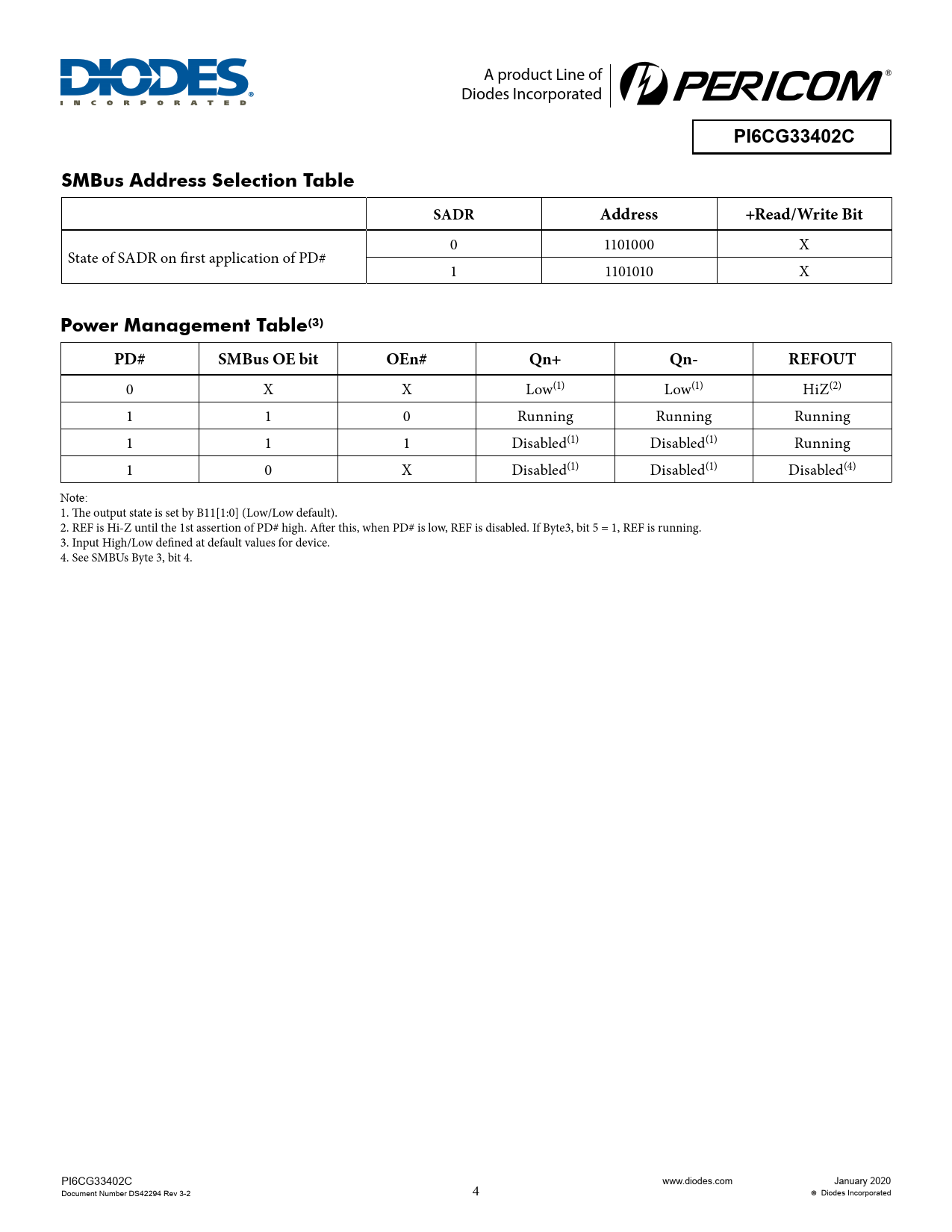

PI6CG33402C SMBus Address Selection Table SADR Address +Read/Write Bit
0 1101000 X State of SADR on first application of PD# 1 1101010 X
Power Management Table(3) PD# SMBus OE bit OEn# Qn+ Qn- REFOUT
0 X X Low(1) Low(1) HiZ(2) 1 1 0 Running Running Running 1 1 1 Disabled(1) Disabled(1) Running 1 0 X Disabled(1) Disabled(1) Disabled(4) Note: 1. The output state is set by B11[1:0] (Low/Low default). 2. REF is Hi-Z until the 1st assertion of PD# high. After this, when PD# is low, REF is disabled. If Byte3, bit 5 = 1, REF is running. 3. Input High/Low defined at default values for device. 4. See SMBUs Byte 3, bit 4. PI6CG33402C www.diodes.com January 2020 Document Number DS42294 Rev 3-2 4 Diodes Incorporated
PI6CG33402C SMBus Address Selection Table SADR Address +Read/Write Bit
0 1101000 X State of SADR on first application of PD# 1 1101010 X
Power Management Table(3) PD# SMBus OE bit OEn# Qn+ Qn- REFOUT
0 X X Low(1) Low(1) HiZ(2) 1 1 0 Running Running Running 1 1 1 Disabled(1) Disabled(1) Running 1 0 X Disabled(1) Disabled(1) Disabled(4) Note: 1. The output state is set by B11[1:0] (Low/Low default). 2. REF is Hi-Z until the 1st assertion of PD# high. After this, when PD# is low, REF is disabled. If Byte3, bit 5 = 1, REF is running. 3. Input High/Low defined at default values for device. 4. See SMBUs Byte 3, bit 4. PI6CG33402C www.diodes.com January 2020 Document Number DS42294 Rev 3-2 4 Diodes Incorporated
