| Descripción | 4.5V To 18V Input, 6A Synchronous Buck Converter |
| Páginas / Página | 26 / 10 — AP62600. Typical Performance Characteristics. VOUT (50mV/div). VOUT … |
| Formato / tamaño de archivo | PDF / 1.9 Mb |
| Idioma del documento | Inglés |
AP62600. Typical Performance Characteristics. VOUT (50mV/div). VOUT (20mV/div). IL (2A/div). VSW (10V/div). 20μs/div. 2μs/div
Línea de modelo para esta hoja de datos
Versión de texto del documento
AP62600 Typical Performance Characteristics
(AP62600 at TA = +25°C, VIN = 12V, VOUT = 5V, MODE = GND (PFM), FSEL = Floating (fSW = 800kHz), SS/TR = Floating (tSS = 1ms), unless otherwise specified.) (continued)

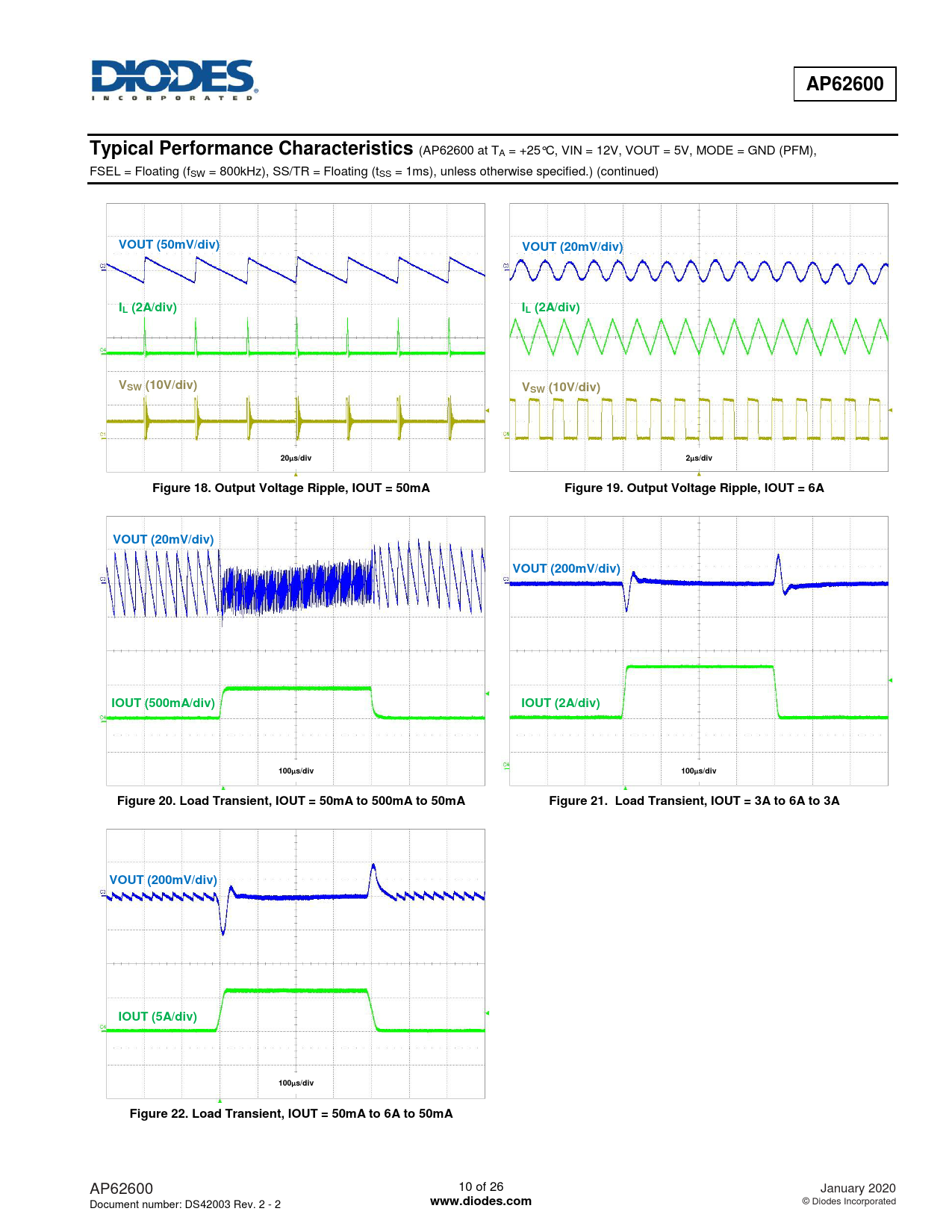

VOUT (50mV/div) VOUT (20mV/div) IL (2A/div) IL (2A/div) VSW (10V/div) VSW (10V/div) 20μs/div 2μs/div Figure 18. Output Voltage Ripple, IOUT = 50mA Figure 19. Output Voltage Ripple, IOUT = 6A VOUT (20mV/div) VOUT (200mV/div) IOUT (500mA/div) IOUT (2A/div) 100μs/div 100μs/div Figure 20. Load Transient, IOUT = 50mA to 500mA to 50mA Figure 21. Load Transient, IOUT = 3A to 6A to 3A VOUT (200mV/div) IOUT (5A/div) 100μs/div Figure 22. Load Transient, IOUT = 50mA to 6A to 50mA
