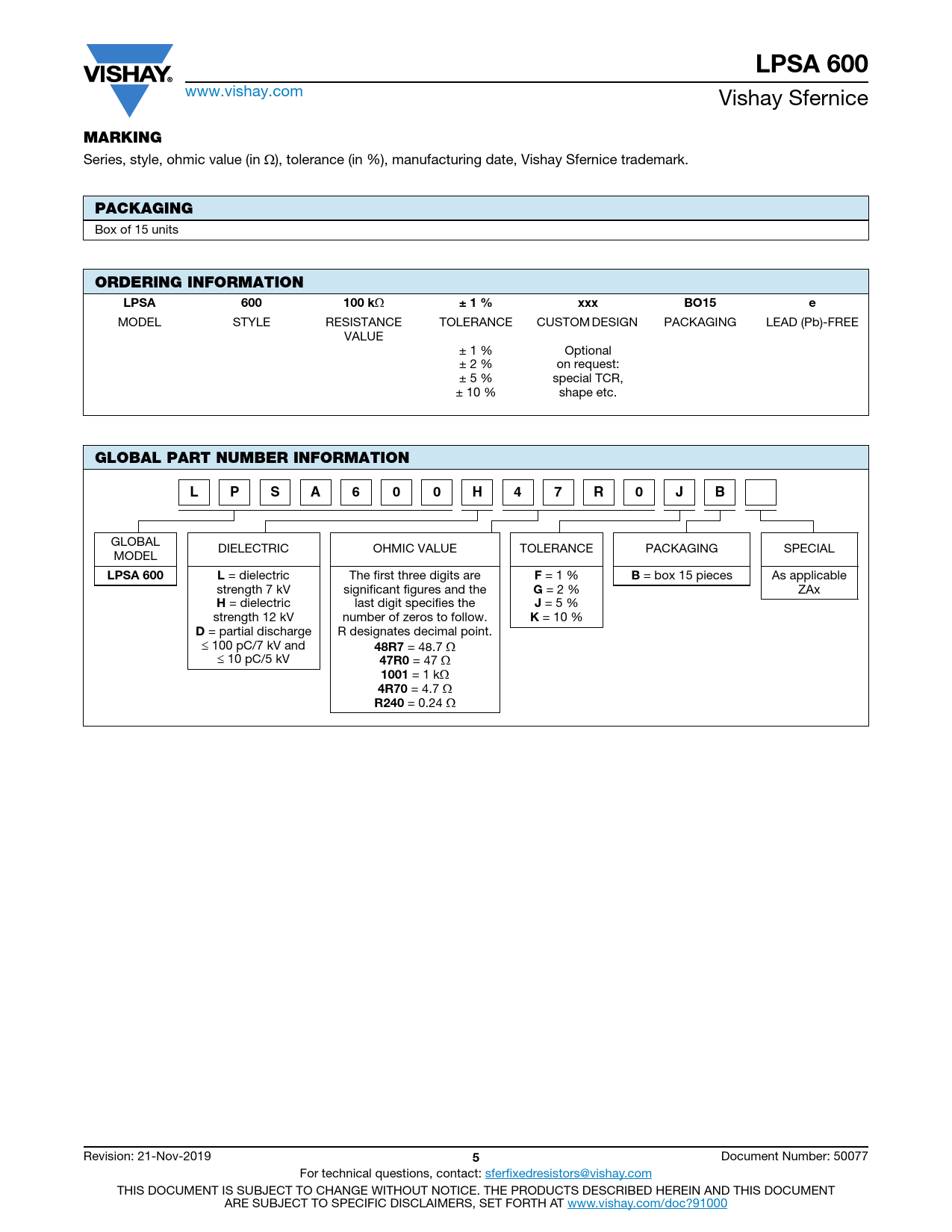

LPSA 600
www.vishay.com Vishay Sfernice
MARKING
Series, style, ohmic value (in ), tolerance (in %), manufacturing date, Vishay Sfernice trademark.
PACKAGING
Box of 15 units
ORDERING INFORMATION LPSA 600 100 k ± 1 % xxx BO15 e
MODEL STYLE RESISTANCE TOLERANCE CUSTOM DESIGN PACKAGING LEAD (Pb)-FREE VALUE ± 1 % Optional ± 2 % on request: ± 5 % special TCR, ± 10 % shape etc.
GLOBAL PART NUMBER INFORMATION L P S A 6 0 0 H 4 7 R 0 J B
GLOBAL DIELECTRIC OHMIC VALUE TOLERANCE PACKAGING SPECIAL MODEL
LPSA 600 L
= dielectric The first three digits are
F
= 1 %
B
= box 15 pieces As applicable strength 7 kV significant figures and the
G
= 2 % ZAx
H
= dielectric last digit specifies the
J
= 5 % strength 12 kV number of zeros to follow.
K
= 10 %
D
= partial discharge R designates decimal point. 100 pC/7 kV and
48R7
= 48.7 10 pC/5 kV
47R0
= 47
1001
= 1 k
4R70
= 4.7
R240
= 0.24 Revision: 21-Nov-2019
