Datasheet TLP3107A (Toshiba) - 3

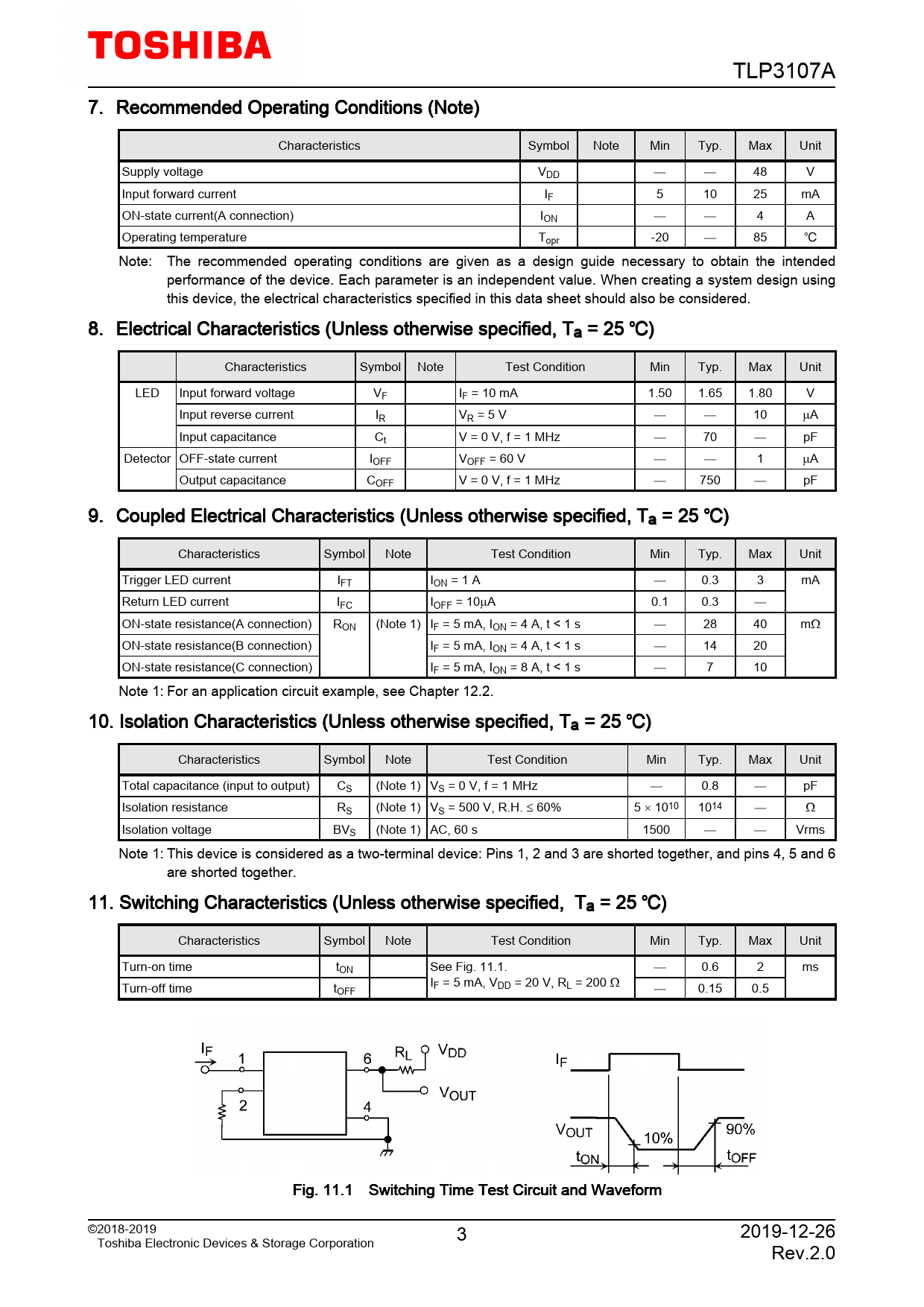

TLP3107A 7. Recommended Operating Conditions (Note) Characteristics Symbol Note Min Typ. Max Unit Supply voltage VDD   48 V Input forward current IF 5 10 25 mA ON-state current(A connection) ION   4 A Operating temperature Topr -20  85 Note: The recommended operating conditions are given as a design guide necessary to obtain the intended performance of the device. Each parameter is an independent value. When creating a system design using this device, the electrical characteristics specified in this data sheet should also be considered. 8. Electrical Characteristics (Unless otherwise specified, Ta = 25 ) Characteristics Symbol Note Test Condition Min Typ. Max Unit LED Input forward voltage VF IF = 10 mA 1.50 1.65 1.80 V Input reverse current IR VR = 5 V   10 µA Input capacitance Ct V = 0 V, f = 1 MHz  70  pF Detector OFF-state current IOFF VOFF = 60 V   1 µA Output capacitance COFF V = 0 V, f = 1 MHz  750  pF 9. Coupled Electrical Characteristics (Unless otherwise specified, Ta = 25 ) Characteristics Symbol Note Test Condition Min Typ. Max Unit Trigger LED current IFT ION = 1 A  0.3 3 mA Return LED current IFC IOFF = 10µA 0.1 0.3  ON-state resistance(A connection) RON (Note 1) IF = 5 mA, ION = 4 A, t < 1 s  28 40 mΩ ON-state resistance(B connection) IF = 5 mA, ION = 4 A, t < 1 s  14 20 ON-state resistance(C connection) IF = 5 mA, ION = 8 A, t < 1 s  7 10 Note 1: For an application circuit example, see Chapter 12.2. 10. Isolation Characteristics (Unless otherwise specified, Ta = 25 ) Characteristics Symbol Note Test Condition Min Typ. Max Unit Total capacitance (input to output) CS (Note 1) VS = 0 V, f = 1 MHz  0.8  pF Isolation resistance RS (Note 1) VS = 500 V, R.H. ≤ 60% 5 × 1010 1014  Ω Isolation voltage BVS (Note 1) AC, 60 s 1500   Vrms Note 1: This device is considered as a two-terminal device: Pins 1, 2 and 3 are shorted together, and pins 4, 5 and 6 are shorted together. 11. Switching Characteristics (Unless otherwise specified, Ta = 25 ) Characteristics Symbol Note Test Condition Min Typ. Max Unit Turn-on time tON See Fig. 11.1.  0.6 2 ms Turn-off time t IF = 5 mA, VDD = 20 V, RL = 200 Ω OFF  0.15 0.5 Fig. 11.1 Switching Time Test Circuit and Waveform ©2018-2019 3 2019-12-26 Toshiba Electronic Devices & Storage Corporation Rev.2.0
