Datasheet TLP3106A (Toshiba) - 4

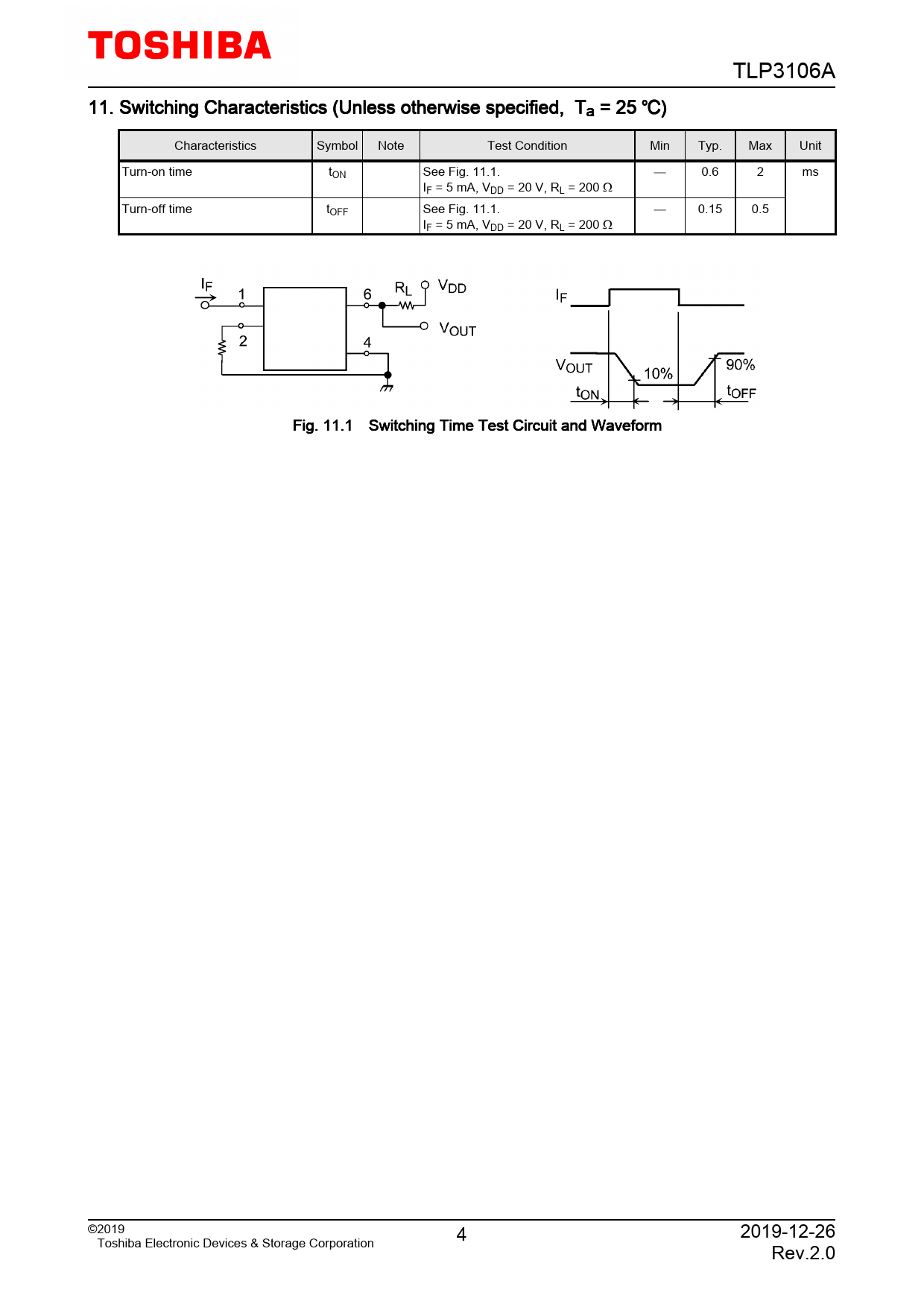

TLP3106A 11. Switching Characteristics (Unless otherwise specified, Ta = 25 ) Characteristics Symbol Note Test Condition Min Typ. Max Unit Turn-on time tON See Fig. 11.1.  0.6 2 ms IF = 5 mA, VDD = 20 V, RL = 200 Ω Turn-off time tOFF See Fig. 11.1.  0.15 0.5 IF = 5 mA, VDD = 20 V, RL = 200 Ω Fig. 11.1 Switching Time Test Circuit and Waveform ©2019 4 2019-12-26 Toshiba Electronic Devices & Storage Corporation Rev.2.0
