Datasheet TC78H670FTG (Toshiba) - 9
| Fabricante | Toshiba |
| Descripción | Clock-in and Serial controlled Bipolar Stepping Motor Driver |
| Páginas / Página | 43 / 9 — [Example: Full Step. 1/8 Step] |
| Formato / tamaño de archivo | PDF / 1.6 Mb |
| Idioma del documento | Inglés |
[Example: Full Step. 1/8 Step]
Línea de modelo para esta hoja de datos
Versión de texto del documento

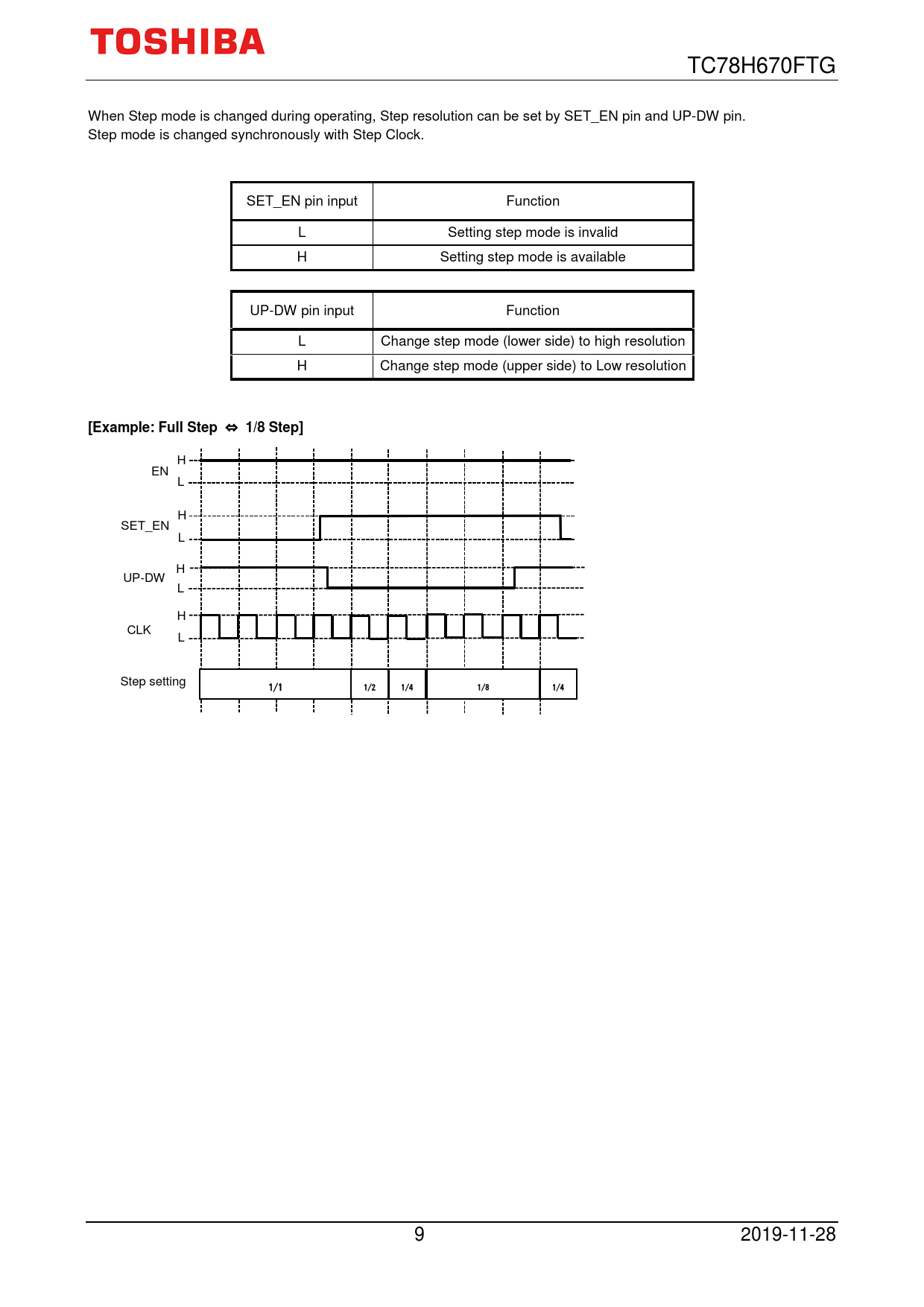

TC78H670FTG When Step mode is changed during operating, Step resolution can be set by SET_EN pin and UP-DW pin. Step mode is changed synchronously with Step Clock. SET_EN pin input Function L Setting step mode is invalid H Setting step mode is available UP-DW pin input Function L Change step mode (lower side) to high resolution H Change step mode (upper side) to Low resolution
[Example: Full Step
⇔
1/8 Step]
H EN L H SET_EN L H UP-DW L H CLK L Step setting 1/1 1/2 1/4 1/8 1/4 9 2019-11-28
