Datasheet MC1458 (STMicroelectronics) - 5
| Fabricante | STMicroelectronics |
| Descripción | High-performance, dual operational amplifier |
| Páginas / Página | 12 / 5 — MC1458. Absolute maximum. Absolute maximum ratings. Table 1: Absolute … |
| Formato / tamaño de archivo | PDF / 469 Kb |
| Idioma del documento | Inglés |
MC1458. Absolute maximum. Absolute maximum ratings. Table 1: Absolute maximum ratings. Symbol. Parameter. MC1458DT. MC1458IDT. Unit
Línea de modelo para esta hoja de datos
Versión de texto del documento
MC1458 Absolute maximum
ratings

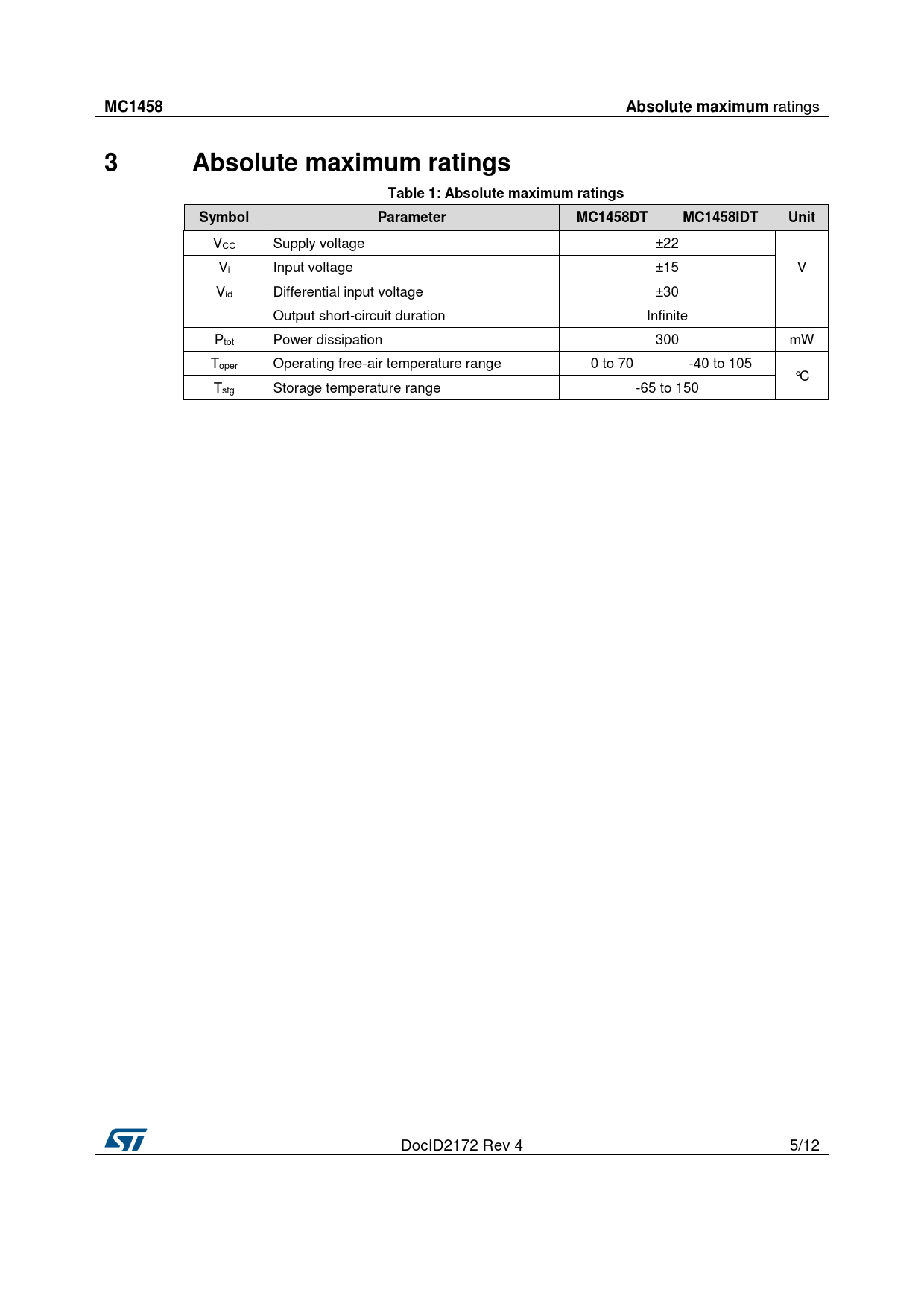

3 Absolute maximum ratings Table 1: Absolute maximum ratings Symbol Parameter MC1458DT MC1458IDT Unit
VCC Supply voltage ±22 Vi Input voltage ±15 V Vid Differential input voltage ±30 Output short-circuit duration Infinite Ptot Power dissipation 300 mW Toper Operating free-air temperature range 0 to 70 -40 to 105 °C Tstg Storage temperature range -65 to 150 DocID2172 Rev 4 5/12 Document Outline 1 Schematic diagram 2 Package pin connections 3 Absolute maximum ratings 4 Electrical characteristics 5 Package information 5.1 SO8 package information 6 Ordering information 7 Revision history
ratings
3 Absolute maximum ratings Table 1: Absolute maximum ratings Symbol Parameter MC1458DT MC1458IDT Unit
VCC Supply voltage ±22 Vi Input voltage ±15 V Vid Differential input voltage ±30 Output short-circuit duration Infinite Ptot Power dissipation 300 mW Toper Operating free-air temperature range 0 to 70 -40 to 105 °C Tstg Storage temperature range -65 to 150 DocID2172 Rev 4 5/12 Document Outline 1 Schematic diagram 2 Package pin connections 3 Absolute maximum ratings 4 Electrical characteristics 5 Package information 5.1 SO8 package information 6 Ordering information 7 Revision history
