Datasheet AD8209 (Analog Devices) - 6
| Fabricante | Analog Devices |
| Descripción | High Voltage, Precision Difference Amplifier |
| Páginas / Página | 16 / 6 — AD8209. Data Sheet. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. –IN 1. 8 … |
| Revisión | C |
| Formato / tamaño de archivo | PDF / 366 Kb |
| Idioma del documento | Inglés |

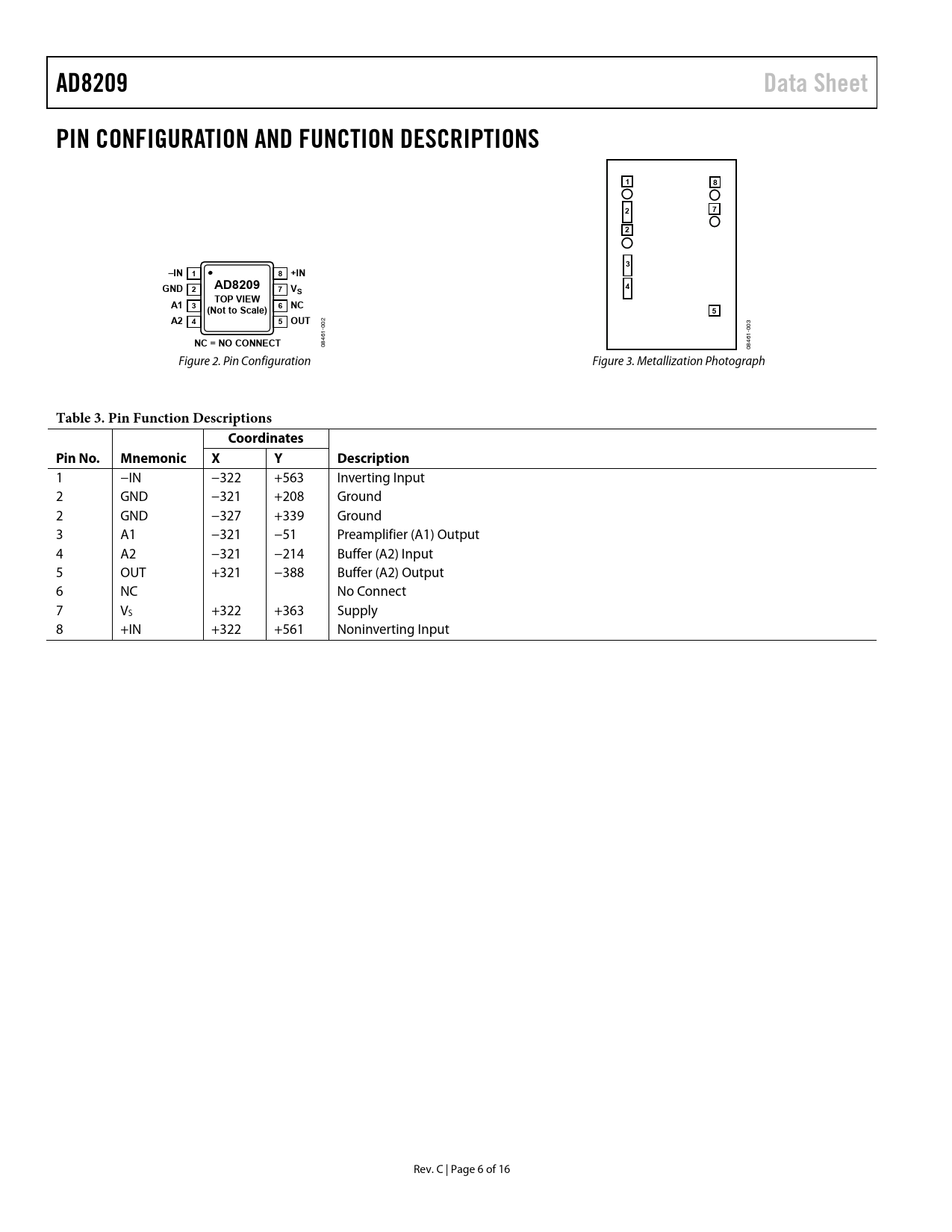

AD8209. Data Sheet. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. –IN 1. 8 +IN. GND. 7 V. TOP VIEW. A1 3. 6 NC. (Not to Scale). A2 4. 5 OUT
Línea de modelo para esta hoja de datos
Versión de texto del documento
AD8209 Data Sheet PIN CONFIGURATION AND FUNCTION DESCRIPTIONS 1 8 2 7 2 3 –IN 1 8 +IN GND AD8209 2 7 V 4 S TOP VIEW A1 3 6 NC (Not to Scale) 5 A2 4 5 OUT
02 3 0 1- -00
NC = NO CONNECT
46 461 08 08 Figure 2. Pin Configuration Figure 3. Metallization Photograph
Table 3. Pin Function Descriptions Coordinates Pin No. Mnemonic X Y Description
1 −IN −322 +563 Inverting Input 2 GND −321 +208 Ground 2 GND −327 +339 Ground 3 A1 −321 −51 Preamplifier (A1) Output 4 A2 −321 −214 Buffer (A2) Input 5 OUT +321 −388 Buffer (A2) Output 6 NC No Connect 7 VS +322 +363 Supply 8 +IN +322 +561 Noninverting Input Rev. C | Page 6 of 16 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION APPLICATIONS INFORMATION HIGH-SIDE CURRENT SENSINGWITH A LOW-SIDE SWITCH HIGH-RAIL CURRENT SENSING LOW-SIDE CURRENT SENSING 4 mA to 20 mA Current Loop Receiver GAIN ADJUSTMENT Gains Less than 14 Gains Greater than 14 GAIN TRIM Internal Signal Overload Considerations LOW-PASS FILTERING HIGH LINE CURRENT SENSINGWITH LPF AND GAIN ADJUSTMENT OUTLINE DIMENSIONS ORDERING GUIDE AUTOMOTIVE PRODUCTS
