DescripciónHigh Voltage, Precision Difference Amplifier

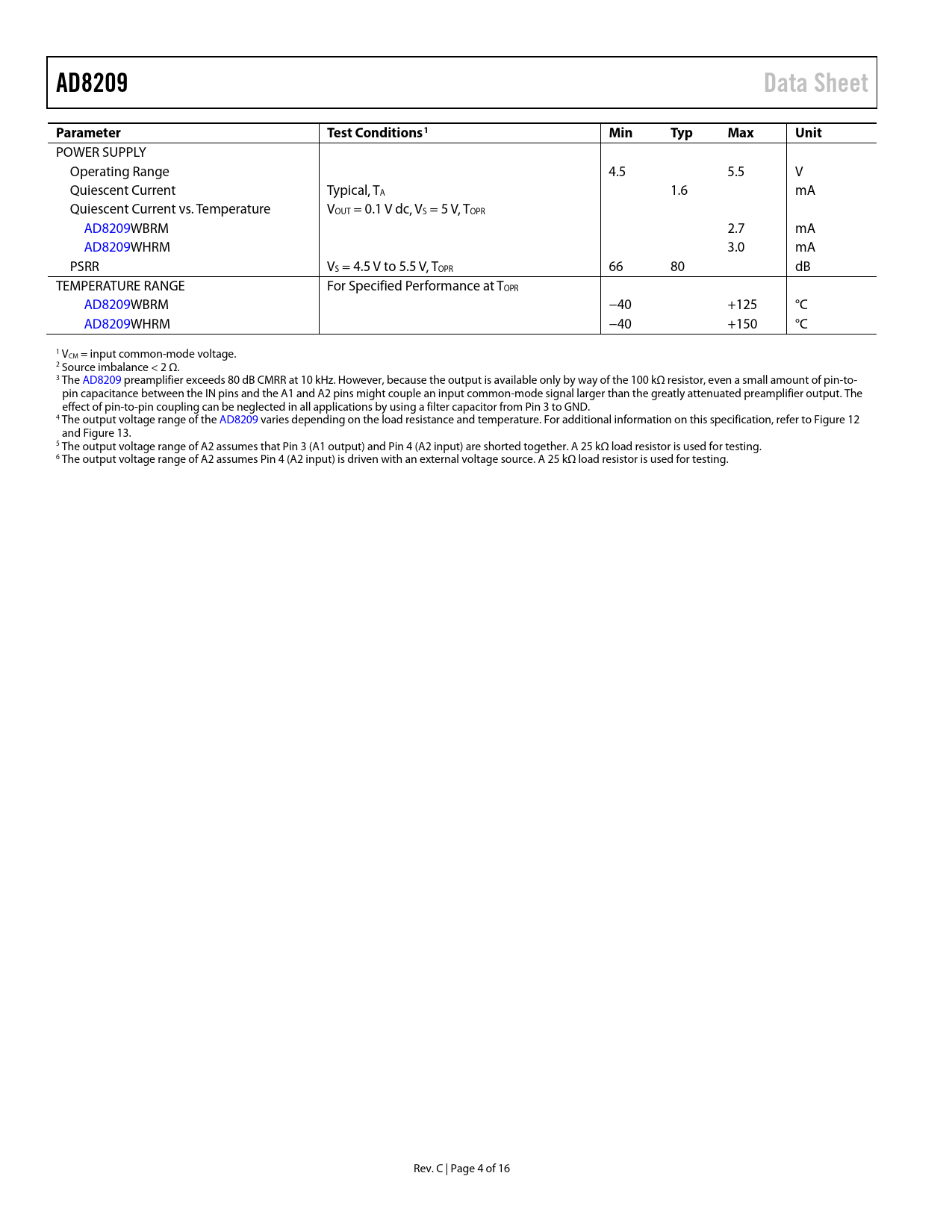

Páginas / Página16 / 4 — AD8209. Data Sheet. Parameter. Test Conditions1. Min. Typ. Max. Unit
RevisiónC
Formato / tamaño de archivoPDF / 366 Kb
Idioma del documentoInglés

AD8209. Data Sheet. Parameter. Test Conditions1. Min. Typ. Max. Unit

AD8209 Data Sheet Parameter Test Conditions1 Min Typ Max Unit

Línea de modelo para esta hoja de datos

Versión de texto del documento

link to page 8 link to page 8
AD8209 Data Sheet Parameter Test Conditions1 Min Typ Max Unit
POWER SUPPLY Operating Range 4.5 5.5 V Quiescent Current Typical, TA 1.6 mA Quiescent Current vs. Temperature VOUT = 0.1 V dc, VS = 5 V, TOPR AD8209WBRM 2.7 mA AD8209WHRM 3.0 mA PSRR VS = 4.5 V to 5.5 V, TOPR 66 80 dB TEMPERATURE RANGE For Specified Performance at TOPR AD8209WBRM −40 +125 °C AD8209WHRM −40 +150 °C 1 VCM = input common-mode voltage. 2 Source imbalance < 2 Ω. 3 The AD8209 preamplifier exceeds 80 dB CMRR at 10 kHz. However, because the output is available only by way of the 100 kΩ resistor, even a small amount of pin-to- pin capacitance between the IN pins and the A1 and A2 pins might couple an input common-mode signal larger than the greatly attenuated preamplifier output. The effect of pin-to-pin coupling can be neglected in all applications by using a filter capacitor from Pin 3 to GND. 4 The output voltage range of the AD8209 varies depending on the load resistance and temperature. For additional information on this specification, refer to Figure 12 and Figure 13. 5 The output voltage range of A2 assumes that Pin 3 (A1 output) and Pin 4 (A2 input) are shorted together. A 25 kΩ load resistor is used for testing. 6 The output voltage range of A2 assumes Pin 4 (A2 input) is driven with an external voltage source. A 25 kΩ load resistor is used for testing. Rev. C | Page 4 of 16 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION APPLICATIONS INFORMATION HIGH-SIDE CURRENT SENSINGWITH A LOW-SIDE SWITCH HIGH-RAIL CURRENT SENSING LOW-SIDE CURRENT SENSING 4 mA to 20 mA Current Loop Receiver GAIN ADJUSTMENT Gains Less than 14 Gains Greater than 14 GAIN TRIM Internal Signal Overload Considerations LOW-PASS FILTERING HIGH LINE CURRENT SENSINGWITH LPF AND GAIN ADJUSTMENT OUTLINE DIMENSIONS ORDERING GUIDE AUTOMOTIVE PRODUCTS
