Datasheet AD8218 (Analog Devices) - 4
| Fabricante | Analog Devices |
| Descripción | Zero Drift, Bi-Directional Current Shunt Monitor |
| Páginas / Página | 16 / 4 — AD8218. Data Sheet. ABSOLUTE MAXIMUM RATINGS. Table 2. Parameter. Rating. … |
| Revisión | B |
| Formato / tamaño de archivo | PDF / 363 Kb |
| Idioma del documento | Inglés |

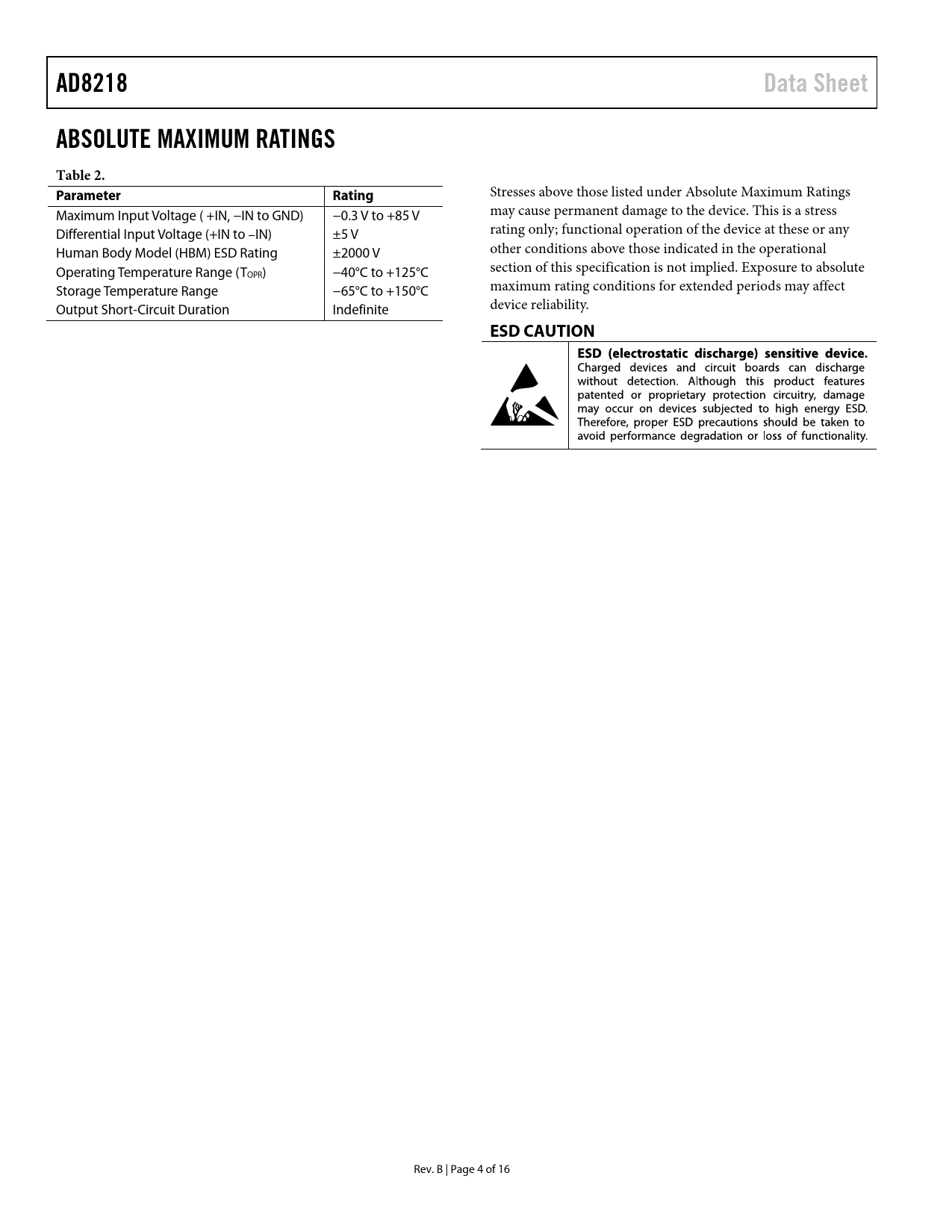

AD8218. Data Sheet. ABSOLUTE MAXIMUM RATINGS. Table 2. Parameter. Rating. ESD CAUTION
Línea de modelo para esta hoja de datos
Versión de texto del documento
AD8218 Data Sheet ABSOLUTE MAXIMUM RATINGS Table 2. Parameter Rating
Stresses above those listed under Absolute Maximum Ratings Maximum Input Voltage ( +IN, −IN to GND) −0.3 V to +85 V may cause permanent damage to the device. This is a stress Differential Input Voltage (+IN to –IN) ±5 V rating only; functional operation of the device at these or any Human Body Model (HBM) ESD Rating ±2000 V other conditions above those indicated in the operational Operating Temperature Range (T section of this specification is not implied. Exposure to absolute OPR) −40°C to +125°C Storage Temperature Range −65°C to +150°C maximum rating conditions for extended periods may affect Output Short-Circuit Duration Indefinite device reliability.
