Data Brief PI3USB9201 (Diodes)
| Fabricante | Diodes |
| Descripción | Dual-Role Usb Charging-Type Detector |
| Páginas / Página | 1 / 1 — Lead-free Green. PRODUCT BRIEF. PI3USB9201. Dual-Role USB Charging-Type … |
| Formato / tamaño de archivo | PDF / 472 Kb |
| Idioma del documento | Inglés |

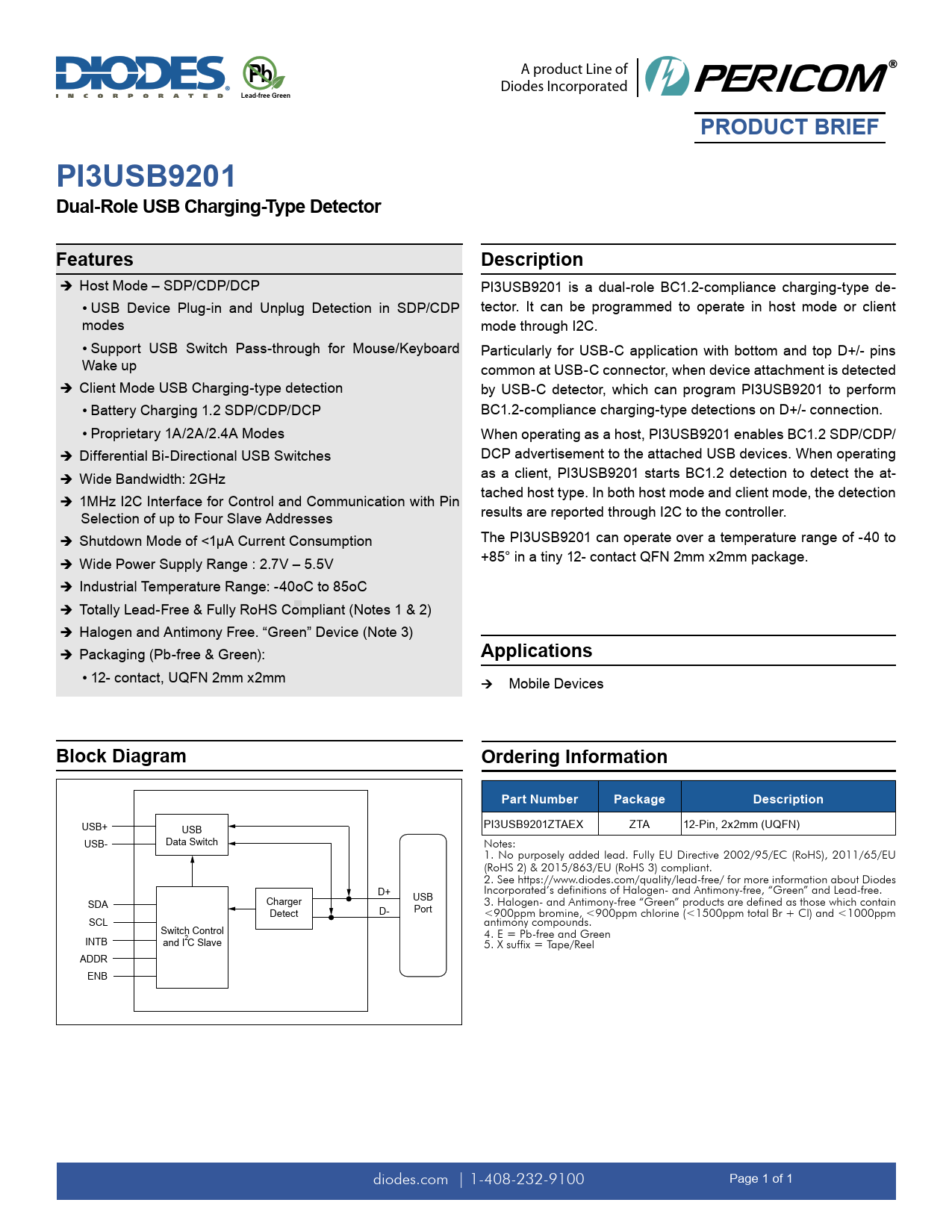

Lead-free Green. PRODUCT BRIEF. PI3USB9201. Dual-Role USB Charging-Type Detector. Features. Description. Applications. Block Diagram
Línea de modelo para esta hoja de datos
Versión de texto del documento
A product Line of
b P
Diodes Incorporated
Lead-free Green PRODUCT BRIEF PI3USB9201 Dual-Role USB Charging-Type Detector Features Description
¼ Î Host Mode – SDP/CDP/DCP PI3USB9201 is a dual-role BC1.2-compliance charging-type de- ¼ y USB Device Plug-in and Unplug Detection in SDP/CDP tector. It can be programmed to operate in host mode or client modes mode through I2C. ¼ y Support USB Switch Pass-through for Mouse/Keyboard Particularly for USB-C application with bottom and top D+/- pins Wake up common at USB-C connector, when device attachment is detected ¼ Î Client Mode USB Charging-type detection by USB-C detector, which can program PI3USB9201 to perform ¼ y Battery Charging 1.2 SDP/CDP/DCP BC1.2-compliance charging-type detections on D+/- connection. ¼ y Proprietary 1A/2A/2.4A Modes When operating as a host, PI3USB9201 enables BC1.2 SDP/CDP/ ¼ Î Differential Bi-Directional USB Switches DCP advertisement to the attached USB devices. When operating ¼ Î Wide Bandwidth: 2GHz as a client, PI3USB9201 starts BC1.2 detection to detect the at- tached host type. In both host mode and client mode, the detection ¼ Î 1MHz I2C Interface for Control and Communication with Pin Selection of up to Four Slave Addresses results are reported through I2C to the control er. ¼ Î Shutdown Mode of <1µA Current Consumption The PI3USB9201 can operate over a temperature range of -40 to +85° in a tiny 12- contact QFN 2mm x2mm package. ¼ Î Wide Power Supply Range : 2.7V – 5.5V ¼ Î Industrial Temperature Range: -40oC to 85oC ¼ Î Total y Lead-Free & Ful y RoHS Compliant (Notes 1 & 2) ¼ Î Halogen and Antimony Free. “Green” Device (Note 3) ¼ Î Packaging (Pb-free & Green):
Applications
¼ y 12- contact, UQFN 2mm x2mm ¼ ¼ Mobile Devices
Block Diagram Ordering Information Part Number Package Description
USB+ PI3USB9201ZTAEX ZTA 12-Pin, 2x2mm (UQFN) USB USB- Data Switch Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes D+ Incorporated’s definitions of Halogen- and Antimony-free, “Green” and Lead-free. USB Charger 3. Halogen- and Antimony-free “Green” products are defined as those which contain SDA D- Port Detect <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm SCL antimony compounds. Switch Control 4. E = Pb-free and Green INTB and I C Slave 2 5. X suffix = Tape/Reel ADDR ENB diodes.com | 1-408-232-9100 Page 1 of 1
