Datasheet PAM8904 (Diodes) - 8
| Fabricante | Diodes |
| Descripción | The PAM8904 is a piezo sounder driver with integrated a charge pump boost converter |
| Páginas / Página | 9 / 8 — PAM8904. Suggested Pad Layout. (1) Package Type: U-QFN3030-16 (Type B). … |
| Formato / tamaño de archivo | PDF / 355 Kb |
| Idioma del documento | Inglés |
PAM8904. Suggested Pad Layout. (1) Package Type: U-QFN3030-16 (Type B). Value. Dimensions. (in mm)
Línea de modelo para esta hoja de datos
Versión de texto del documento

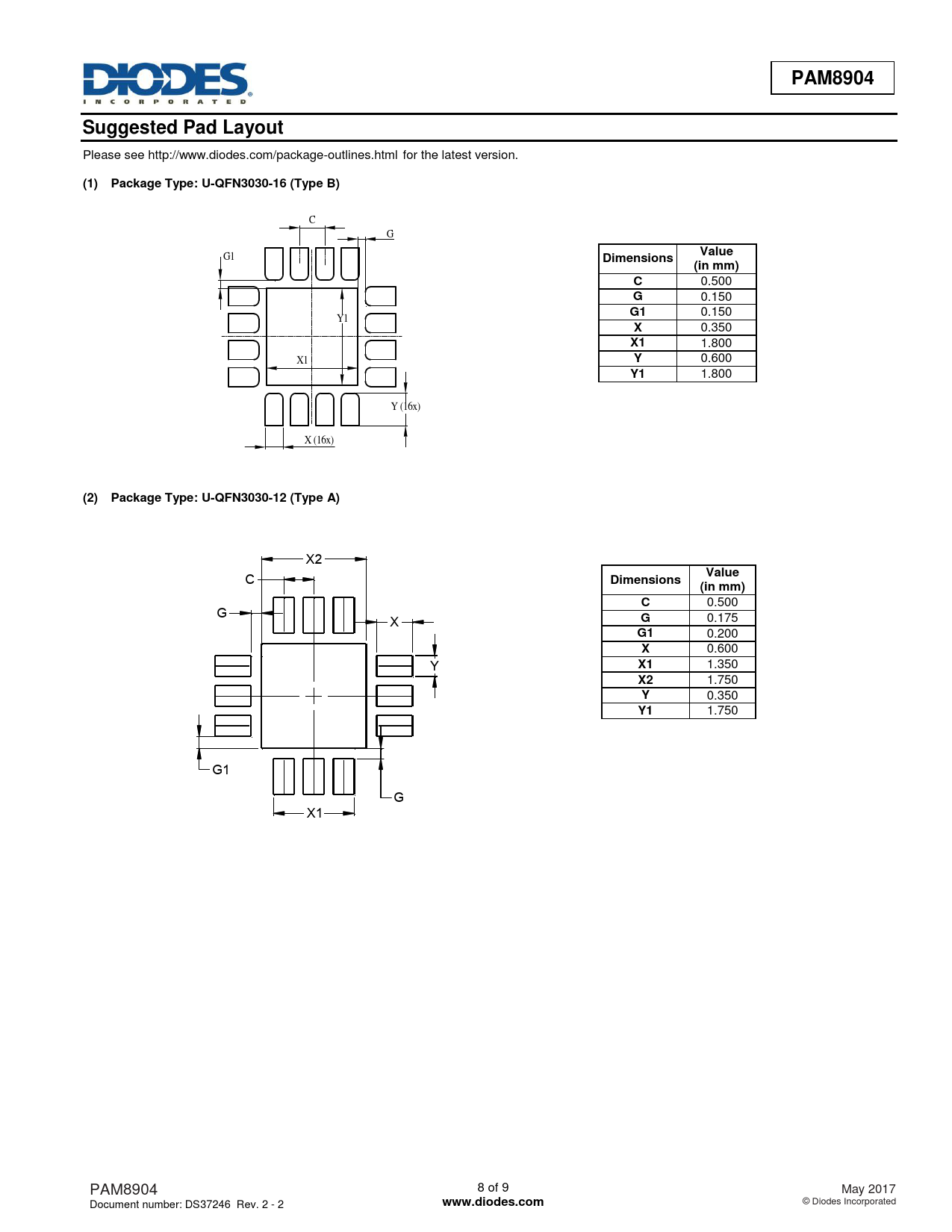

PAM8904 Suggested Pad Layout
Please see http://www.diodes.com/package-outlines.html for the latest version.
(1) Package Type: U-QFN3030-16 (Type B)
C G
Value
G1
Dimensions (in mm) C
0.500
G
0.150
G1
0.150 Y1
X
0.350
X1
1.800 X1
Y
0.600
Y1
1.800 Y (16x) X (16x)
(2) Package Type: U-QFN3030-12 (Type A)
X2 C
Value Dimensions (in mm) C
0.500 G X
G
0.175
G1
0.200
X
0.600 Y
X1
1.350
X2
1.750
Y
0.350
Y1
1.750 G1 G X1 PAM8904 8 of 9 May 2017 Document number: DS37246 Rev. 2 - 2
www.diodes.com
© Diodes Incorporated
