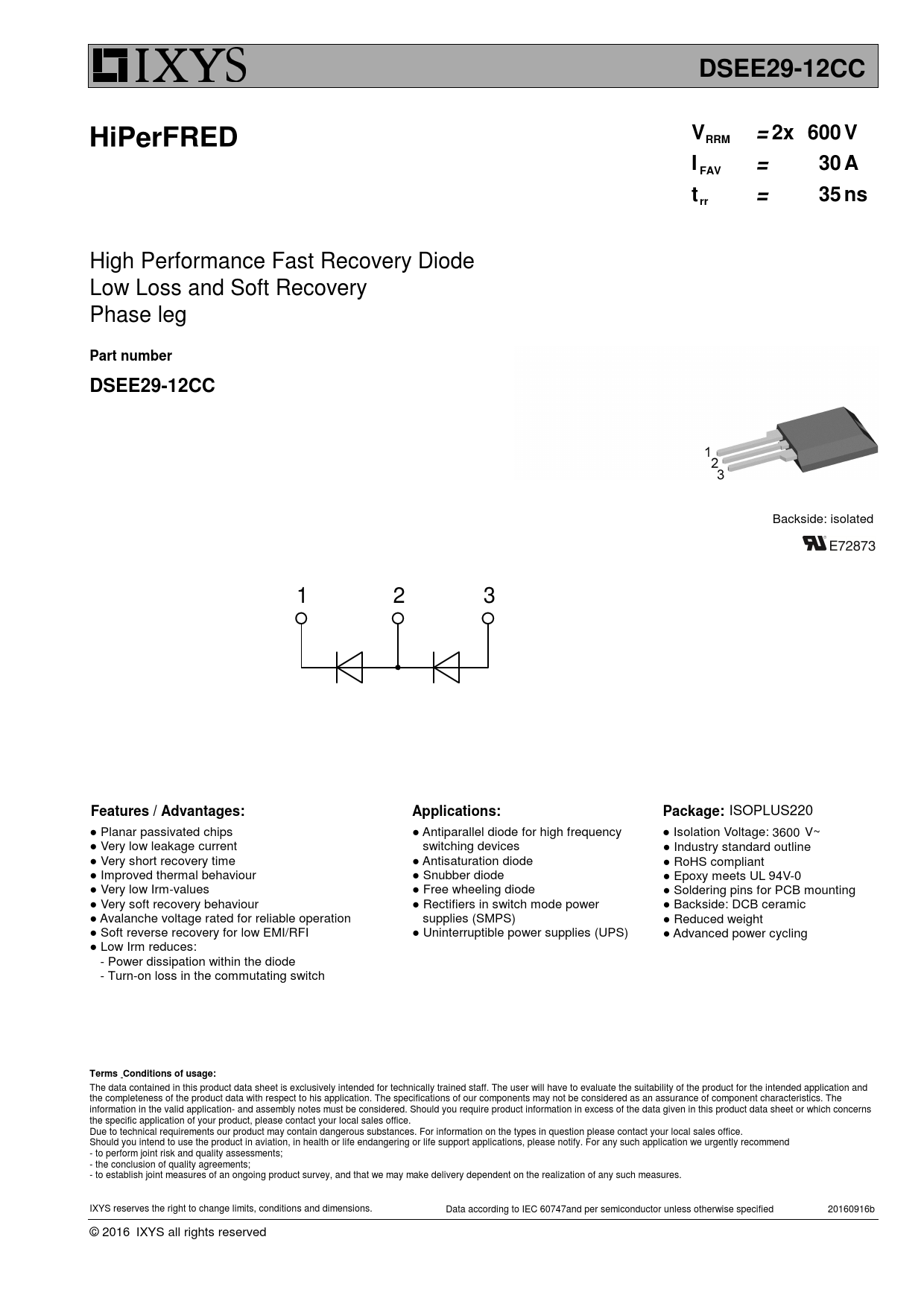

DSEE29-12CC HiPerFRED V = 2x 600 V RRM I = 30 A FAV t = 35 ns rr
High Performance Fast Recovery Diode Low Loss and Soft Recovery Phase leg
Part number DSEE29-12CC
Backside: isolated 1 2 3
Features / Advantages: Applications: Package:
ISOPLUS220 ● Planar passivated chips ● Antiparallel diode for high frequency ● Isolation Voltage: 3 6 0 0 V~ ● Very low leakage current switching devices ● Industry standard outline ● Very short recovery time ● Antisaturation diode ● RoHS compliant ● Improved thermal behaviour ● Snubber diode ● Epoxy meets UL 94V-0 ● Very low Irm-values ● Free wheeling diode ● Soldering pins for PCB mounting ● Very soft recovery behaviour ● Rectifiers in switch mode power ● Backside: DCB ceramic ● Avalanche voltage rated for reliable operation supplies (SMPS) ● Reduced weight ● Soft reverse recovery for low EMI/RFI ● Uninterruptible power supplies (UPS) ● Advanced power cycling ● Low Irm reduces: - Power dissipation within the diode - Turn-on loss in the commutating switch
Terms Conditions of usage:
The data contained in this product data sheet is exclusively intended for technically trained staff. The user will have to evaluate the suitability of the product for the intended application and the completeness of the product data with respect to his application. The specifications of our components may not be considered as an assurance of component characteristics. The information in the valid application- and assembly notes must be considered. Should you require product information in excess of the data given in this product data sheet or which concerns the specific application of your product, please contact your local sales office. Due to technical requirements our product may contain dangerous substances. For information on the types in question please contact your local sales office. Should you intend to use the product in aviation, in health or life endangering or life support applications, please notify. For any such application we urgently recommend - to perform joint risk and quality assessments; - the conclusion of quality agreements; - to establish joint measures of an ongoing product survey, and that we may make delivery dependent on the realization of any such measures. IXYS reserves the right to change limits, conditions and dimensions. Data according to IEC 60747and per semiconductor unless otherwise specified 20160916b © 2016 IXYS all rights reserved
