Datasheet TCA0372, TCA0372B, NCV0372B (ON Semiconductor) - 10

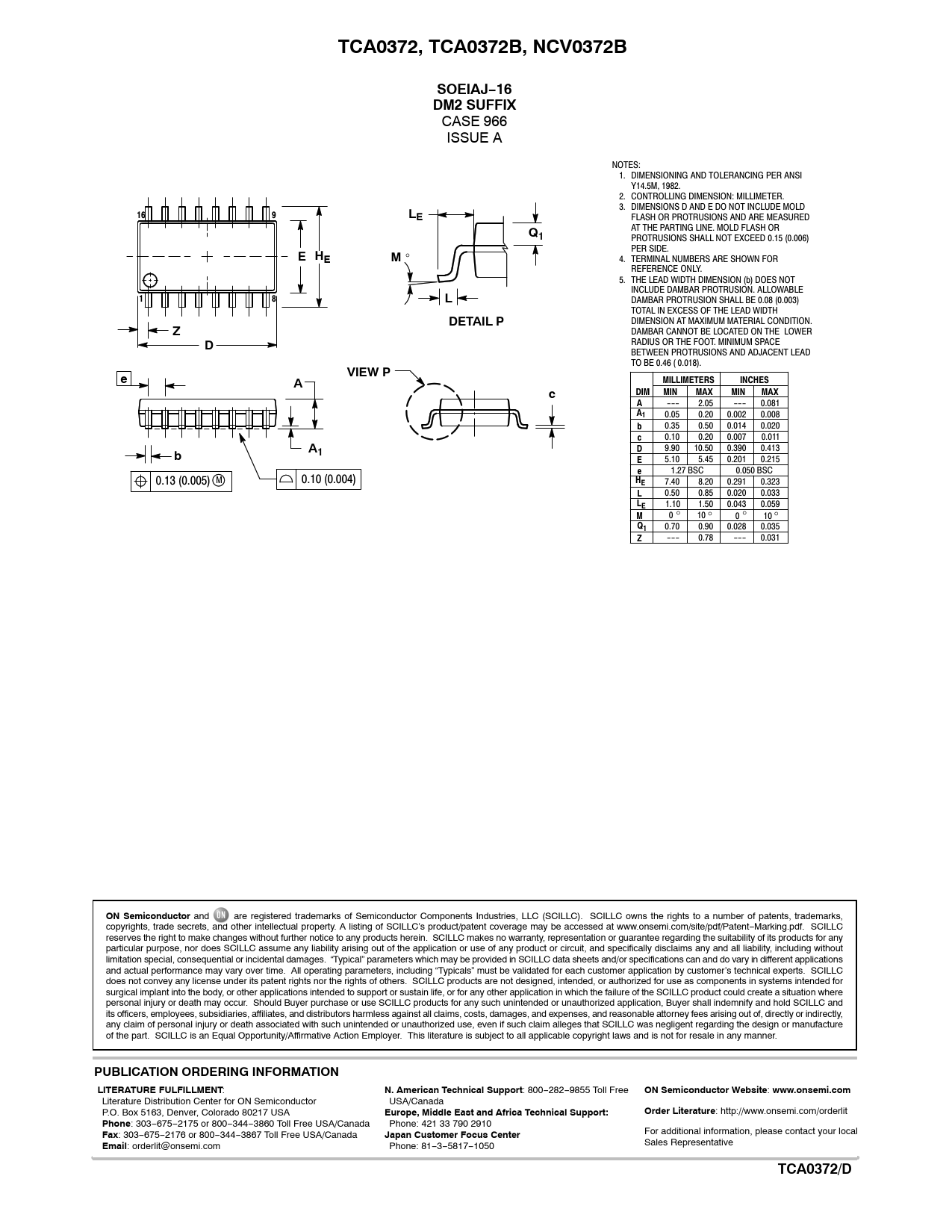

TCA0372, TCA0372B, NCV0372B SOEIAJ−16 DM2 SUFFIX
CASE 966 ISSUE A NOTES: 1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982. 2. CONTROLLING DIMENSION: MILLIMETER.
16 9 L
3. DIMENSIONS D AND E DO NOT INCLUDE MOLD
E
FLASH OR PROTRUSIONS AND ARE MEASURED
Q
AT THE PARTING LINE. MOLD FLASH OR
1
PROTRUSIONS SHALL NOT EXCEED 0.15 (0.006)
E H
PER SIDE.
E M
_ 4. TERMINAL NUMBERS ARE SHOWN FOR REFERENCE ONLY. 5. THE LEAD WIDTH DIMENSION (b) DOES NOT INCLUDE DAMBAR PROTRUSION. ALLOWABLE
1 8 L
DAMBAR PROTRUSION SHALL BE 0.08 (0.003) TOTAL IN EXCESS OF THE LEAD WIDTH
DETAIL P
DIMENSION AT MAXIMUM MATERIAL CONDITION.
Z
DAMBAR CANNOT BE LOCATED ON THE LOWER RADIUS OR THE FOOT. MINIMUM SPACE
D
BETWEEN PROTRUSIONS AND ADJACENT LEAD TO BE 0.46 ( 0.018).
VIEW P e MILLIMETERS INCHES A DIM MIN MAX MIN MAX c A
--- 2.05 --- 0.081
A1
0.05 0.20 0.002 0.008
b
0.35 0.50 0.014 0.020
c
0.10 0.20 0.007 0.011
A1 D
9.90 10.50 0.390 0.413
b E
5.10 5.45 0.201 0.215
e
1.27 BSC 0.050 BSC 0.13 (0.005) M 0.10 (0.004)
HE
7.40 8.20 0.291 0.323
L
0.50 0.85 0.020 0.033
LE
1.10 1.50 0.043 0.059
M
0 _ 10 _ 0 _ 10 _
Q1
0.70 0.90 0.028 0.035
Z
--- 0.78 --- 0.031
