VSMY5890X01. High Speed Infrared Emitting Diodes, 890 nm,. Surface Emitter Technology. FEATURES. DESCRIPTION. APPLICATIONS
Línea de modelo para esta hoja de datos
Versión de texto del documento

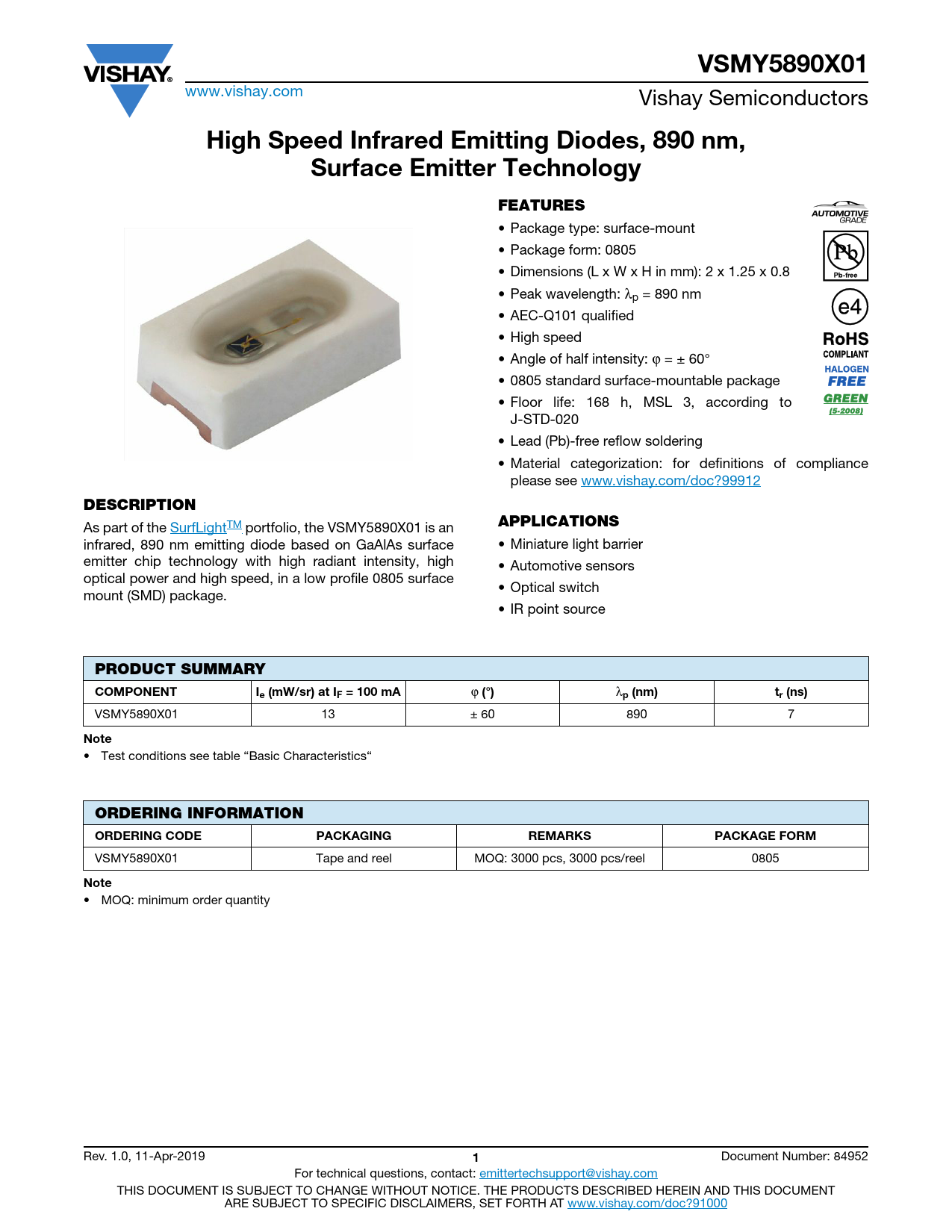

VSMY5890X01
www.vishay.com Vishay Semiconductors
High Speed Infrared Emitting Diodes, 890 nm, Surface Emitter Technology FEATURES
• Package type: surface-mount • Package form: 0805 • Dimensions (L x W x H in mm): 2 x 1.25 x 0.8 • Peak wavelength: λp = 890 nm • AEC-Q101 qualified • High speed • Angle of half intensity: ϕ = ± 60° • 0805 standard surface-mountable package • Floor life: 168 h, MSL 3, according to J-STD-020 • Lead (Pb)-free reflow soldering • Material categorization: for definitions of compliance please see www.vishay.com/doc?99912
DESCRIPTION APPLICATIONS
As part of the SurfLightTM portfolio, the VSMY5890X01 is an infrared, 890 nm emitting diode based on GaAlAs surface • Miniature light barrier emitter chip technology with high radiant intensity, high • Automotive sensors optical power and high speed, in a low profile 0805 surface • Optical switch mount (SMD) package. • IR point source
PRODUCT SUMMARY COMPONENT Ie (mW/sr) at IF = 100 mA
ϕ
(°)
λ
p (nm) tr (ns)
VSMY5890X01 13 ± 60 890 7
Note
• Test conditions see table “Basic Characteristics“
ORDERING INFORMATION ORDERING CODE PACKAGING REMARKS PACKAGE FORM
VSMY5890X01 Tape and reel MOQ: 3000 pcs, 3000 pcs/reel 0805
Note
• MOQ: minimum order quantity Rev. 1.0, 11-Apr-2019
1
Document Number: 84952 For technical questions, contact: emittertechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
