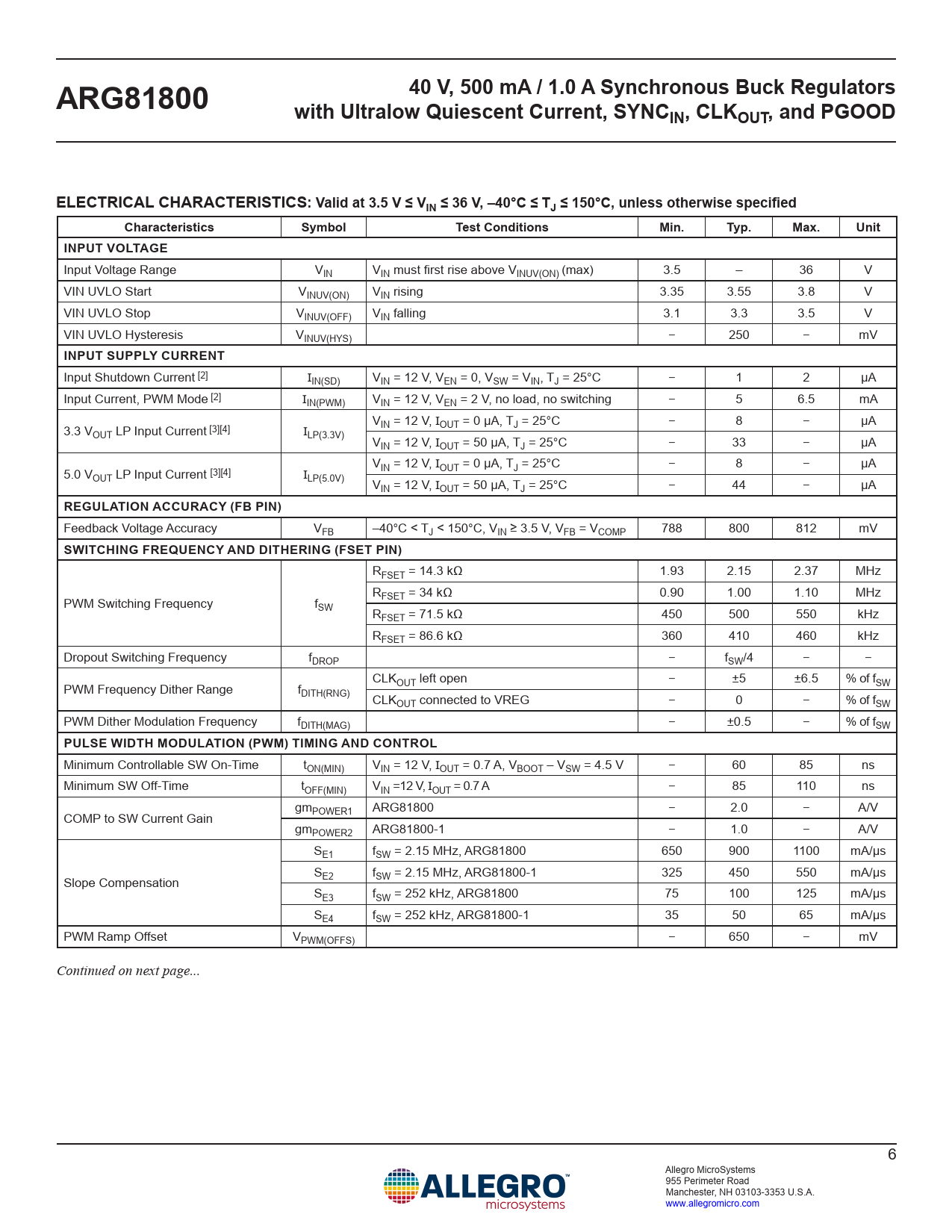

40 V, 500 mA / 1.0 A Synchronous Buck Regulators ARG81800 with Ultralow Quiescent Current, SYNCIN, CLKOUT, and PGOOD ELECTRICAL CHARACTERISTICS: Valid at 3.5 V ≤ VIN ≤ 36 V, –40°C ≤ TJ ≤ 150°C, unless otherwise specified Characteristics Symbol Test Conditions Min. Typ. Max. Unit INPUT VOLTAGE
Input Voltage Range VIN VIN must first rise above VINUV(ON) (max) 3.5 – 36 V VIN UVLO Start VINUV(ON) VIN rising 3.35 3.55 3.8 V VIN UVLO Stop VINUV(OFF) VIN falling 3.1 3.3 3.5 V VIN UVLO Hysteresis VINUV(HYS) − 250 − mV
INPUT SUPPLY CURRENT
Input Shutdown Current [2] IIN(SD) VIN = 12 V, VEN = 0, VSW = VIN, TJ = 25°C − 1 2 µA Input Current, PWM Mode [2] IIN(PWM) VIN = 12 V, VEN = 2 V, no load, no switching − 5 6.5 mA V 3.3 V IN = 12 V, IOUT = 0 µA, TJ = 25°C − 8 − µA OUT LP Input Current [3][4] ILP(3.3V) VIN = 12 V, IOUT = 50 µA, TJ = 25°C − 33 − µA V 5.0 V IN = 12 V, IOUT = 0 µA, TJ = 25°C − 8 − µA OUT LP Input Current [3][4] ILP(5.0V) VIN = 12 V, IOUT = 50 µA, TJ = 25°C − 44 − µA
REGULATION ACCURACY (FB PIN)
Feedback Voltage Accuracy VFB –40°C < TJ < 150°C, VIN ≥ 3.5 V, VFB = VCOMP 788 800 812 mV
SWITCHING FREQUENCY AND DITHERING (FSET PIN)
RFSET = 14.3 kΩ 1.93 2.15 2.37 MHz R PWM Switching Frequency f FSET = 34 kΩ 0.90 1.00 1.10 MHz SW RFSET = 71.5 kΩ 450 500 550 kHz RFSET = 86.6 kΩ 360 410 460 kHz Dropout Switching Frequency fDROP − fSW/4 − − CLK PWM Frequency Dither Range f OUT left open − ±5 ±6.5 % of fSW DITH(RNG) CLKOUT connected to VREG − 0 − % of fSW PWM Dither Modulation Frequency fDITH(MAG) − ±0.5 − % of fSW
