Product Brief PIC18F27Q10 (Microchip) - 2
| Fabricante | Microchip |
| Descripción | Microcontrollers feature analog, core independent, and communication peripherals for a wide range of general purpose and low-power applications |
| Páginas / Página | 15 / 2 — PIC18F2X/4XQ10. Operating Characteristics. Power-Saving Operation Modes. … |
| Formato / tamaño de archivo | PDF / 239 Kb |
| Idioma del documento | Inglés |
PIC18F2X/4XQ10. Operating Characteristics. Power-Saving Operation Modes. Digital Peripherals. Product Brief
Versión de texto del documento

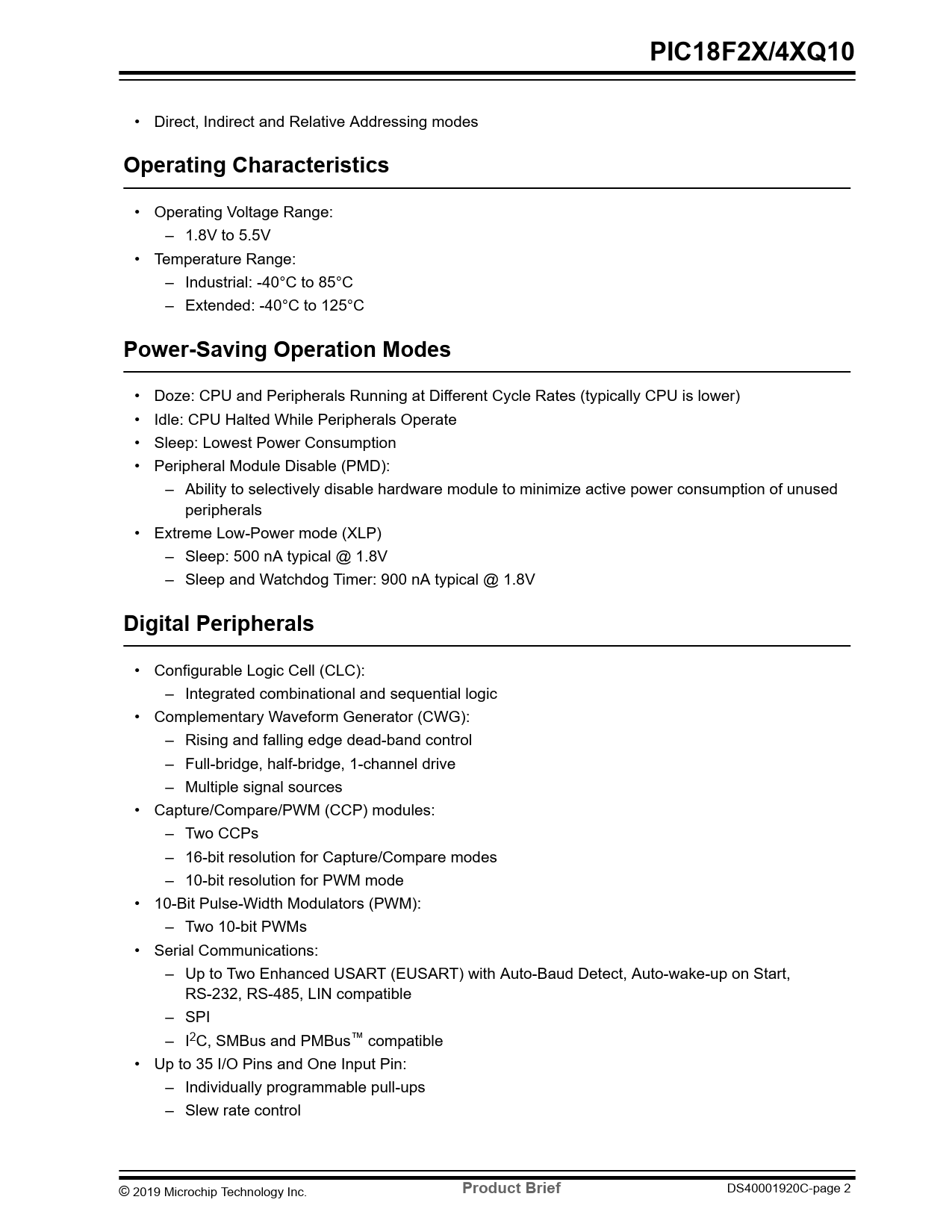

PIC18F2X/4XQ10
• Direct, Indirect and Relative Addressing modes
Operating Characteristics
• Operating Voltage Range: – 1.8V to 5.5V • Temperature Range: – Industrial: -40°C to 85°C – Extended: -40°C to 125°C
Power-Saving Operation Modes
• Doze: CPU and Peripherals Running at Different Cycle Rates (typically CPU is lower) • Idle: CPU Halted While Peripherals Operate • Sleep: Lowest Power Consumption • Peripheral Module Disable (PMD): – Ability to selectively disable hardware module to minimize active power consumption of unused peripherals • Extreme Low-Power mode (XLP) – Sleep: 500 nA typical @ 1.8V – Sleep and Watchdog Timer: 900 nA typical @ 1.8V
Digital Peripherals
• Configurable Logic Cell (CLC): – Integrated combinational and sequential logic • Complementary Waveform Generator (CWG): – Rising and falling edge dead-band control – Full-bridge, half-bridge, 1-channel drive – Multiple signal sources • Capture/Compare/PWM (CCP) modules: – Two CCPs – 16-bit resolution for Capture/Compare modes – 10-bit resolution for PWM mode • 10-Bit Pulse-Width Modulators (PWM): – Two 10-bit PWMs • Serial Communications: – Up to Two Enhanced USART (EUSART) with Auto-Baud Detect, Auto-wake-up on Start, RS-232, RS-485, LIN compatible – SPI – I2C, SMBus and PMBus™ compatible • Up to 35 I/O Pins and One Input Pin: – Individually programmable pull-ups – Slew rate control © 2019 Microchip Technology Inc.
Product Brief
DS40001920C-page 2 Document Outline PIC18F2X/4XQ10 Product Brief Description Core Features Memory Operating Characteristics Power-Saving Operation Modes Digital Peripherals Analog Peripherals Clocking Structure Programming/Debug Features PIC18F2x/4xQ10 Family Types Packages Pin Diagrams Pin Allocation Tables The Microchip Web Site Customer Change Notification Service Customer Support Microchip Devices Code Protection Feature Legal Notice Trademarks Quality Management System Certified by DNV Worldwide Sales and Service
