Datasheet PIC18F25K83, PIC18F26K83, PIC18LF25K83, PIC18LF26K83 (Microchip) - 5

link to page 6 link to page 6
PIC18(L)F25/26K83 TABLE 2: PACKAGES Device SPDIP SOIC SSOP UQFN QFN
PIC18(L)F25K83 PIC18(L)F26K83
Note 1:
Pin details are subject to change.

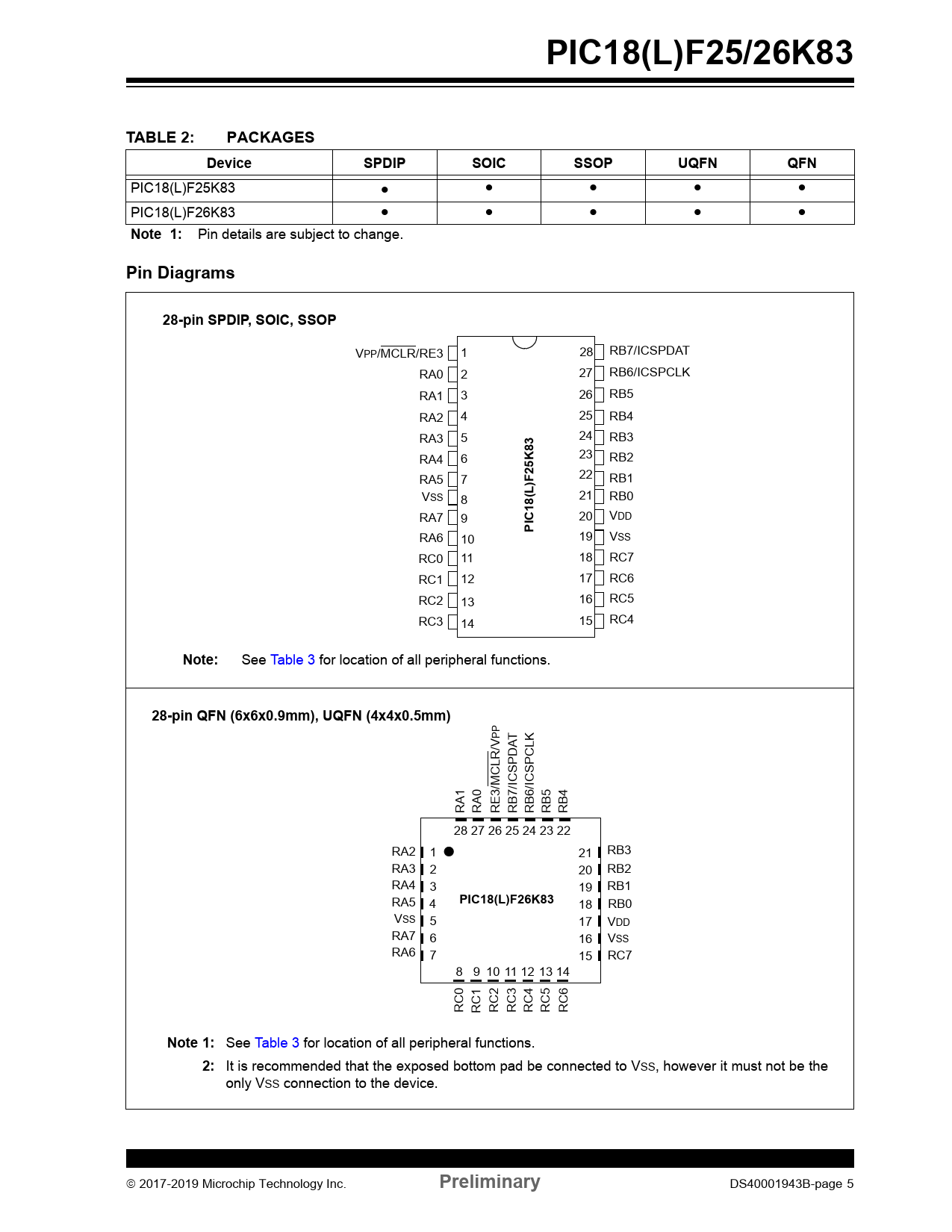

Pin Diagrams 28-pin SPDIP, SOIC, SSOP
VPP/MCLR/RE3 1 28 RB7/ICSPDAT RA0 2 27 RB6/ICSPCLK RA1 3 26 RB5 RA2 4 25 RB4 RA3 5 24 RB3 RA4 6 23 RB2
25K83
RA5 7
)F
22 RB1 VSS 8 21 RB0 RA7 9 20 VDD
PIC18(L
RA6 10 19 VSS RC0 11 18 RC7 RC1 12 17 RC6 RC2 13 16 RC5 RC3 14 15 RC4
Note:
See Table 3 for location of all peripheral functions.
28-pin QFN (6x6x0.9mm), UQFN (4x4x0.5mm)
PP T /V LR C M /ICSPDA /ICSPCLK 3/ 7 6 5 4 B B RA1 RA0 RE R R RB RB 28 27 26 25 24 23 22 RA2 1 21 RB3 RA3 2 20 RB2 RA4 3 19 RB1 RA5 4
PIC18(L)F26K83
18 RB0 VSS 5 17 VDD RA7 6 16 VSS RA6 7 15 RC7 8 9 10 11 12 13 14 1 RC0 RC RC2 RC3 RC4 RC5 RC6
Note 1:
See Table 3 for location of all peripheral functions.
2:
It is recommended that the exposed bottom pad be connected to VSS, however it must not be the only VSS connection to the device.  2017-2019 Microchip Technology Inc.
Preliminary
