Datasheet PIC16(L)F153XX (Microchip) - 6
| Fabricante | Microchip |
| Descripción | Cost-Effective 8 to 48 Pins Microcontroller Product Brief |
| Páginas / Página | 24 / 6 — PIC16(L)F153XX. FIGURE 5:. 28-PIN PDIP, SOIC, SSOP FOR PIC16(L)F15354, … |
| Formato / tamaño de archivo | PDF / 328 Kb |
| Idioma del documento | Inglés |

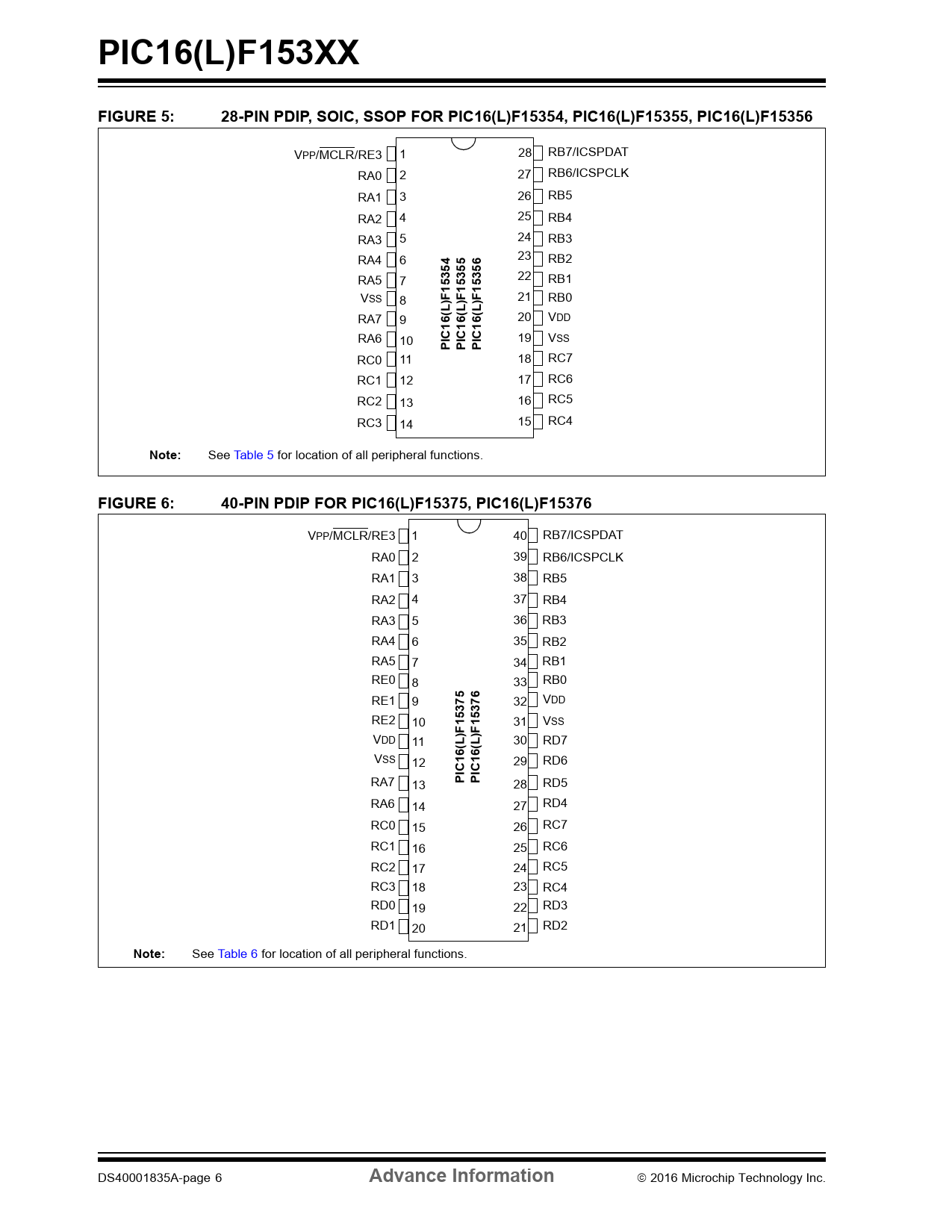

PIC16(L)F153XX. FIGURE 5:. 28-PIN PDIP, SOIC, SSOP FOR PIC16(L)F15354, PIC16(L)F15355, PIC16(L)F15356. (L). Note:. FIGURE 6:
Línea de modelo para esta hoja de datos
- PIC16F15325-E/JQ PIC16F15325-E/JQVAO PIC16F15325-E/P PIC16F15325-E/SL PIC16F15325-E/SLVAO PIC16F15325-E/ST PIC16F15325-I/JQ PIC16F15325-I/P PIC16F15325-I/SL PIC16F15325-I/SLVAO PIC16F15325-I/ST PIC16F15325T-E/7NVAO PIC16F15325T-E/JQ PIC16F15325T-E/JQVAO PIC16F15325T-E/SLVAO PIC16F15325T-E/STVAO PIC16F15325T-I/JQ PIC16F15325T-I/SL PIC16F15325T-I/ST PIC16LF15325-E/JQ PIC16LF15325-E/P PIC16LF15325-E/SL PIC16LF15325-E/ST PIC16LF15325-I/JQ PIC16LF15325-I/P PIC16LF15325-I/SL PIC16LF15325-I/ST PIC16LF15325T-E/JQVAO PIC16LF15325T-E/STVAO PIC16LF15325T-I/JQ PIC16LF15325T-I/SL PIC16LF15325T-I/ST
- ACE15345 PIC16F15345-E/GZ PIC16F15345-E/GZVAO PIC16F15345-E/P PIC16F15345-E/SO PIC16F15345-E/SS PIC16F15345-I/GZ PIC16F15345-I/P PIC16F15345-I/SO PIC16F15345-I/SS PIC16F15345-I/SSVAO PIC16F15345T-E/6NVAO PIC16F15345T-E/GZVAO PIC16F15345T-E/MLVAO PIC16F15345T-E/SSVAO PIC16F15345T-I/GZ PIC16F15345T-I/SO PIC16F15345T-I/SS PIC16F15345T-I/SSVAO PIC16LF15345-E/6NVAO PIC16LF15345-E/GZ PIC16LF15345-E/P PIC16LF15345-E/SO PIC16LF15345-E/SS PIC16LF15345-I/GZ PIC16LF15345-I/P PIC16LF15345-I/SO PIC16LF15345-I/SS PIC16LF15345-I/SSVAO PIC16LF15345T-E/6NVAO PIC16LF15345T-E/GZVAO PIC16LF15345T-E/SS PIC16LF15345T-I/GZ PIC16LF15345T-I/SO PIC16LF15345T-I/SS PIC16LF15345T-I/SSVAO
- PIC16F15385-E/MV PIC16F15385-E/PT PIC16F15385-E/PTVAO PIC16F15385-I/MV PIC16F15385-I/PT PIC16F15385-I/PTVAO PIC16F15385T-E/MV PIC16F15385T-I/MV PIC16F15385T-I/PT PIC16F15385T-I/PTVAO PIC16LF15385-E/MV PIC16LF15385-E/PT PIC16LF15385-I/MV PIC16LF15385-I/PT PIC16LF15385T-E/MV PIC16LF15385T-I/MV PIC16LF15385T-I/PT
Versión de texto del documento
link to page 15 link to page 17
PIC16(L)F153XX FIGURE 5: 28-PIN PDIP, SOIC, SSOP FOR PIC16(L)F15354, PIC16(L)F15355, PIC16(L)F15356
VPP/MCLR/RE3 1 28 RB7/ICSPDAT RA0 2 27 RB6/ICSPCLK RA1 3 26 RB5 RA2 4 25 RB4 RA3 5 24 RB3 RA4 6
4 5 6
23 RB2
5 5 5 3 3 3
RA5 7
5 5 5
22 RB1 VSS
F1 F1 F1
8 21 RB0
(L) (L) (L)
RA7 9
6 6 6
20 VDD
1 1 1
RA6
IC IC IC
10 19 VSS
P P P
RC0 11 18 RC7 RC1 12 17 RC6 RC2 13 16 RC5 RC3 14 15 RC4
Note:
See Table 5 for location of all peripheral functions.
FIGURE 6: 40-PIN PDIP FOR PIC16(L)F15375, PIC16(L)F15376
VPP/MCLR/RE3 1 40 RB7/ICSPDAT RA0 2 39 RB6/ICSPCLK RA1 3 38 RB5 RA2 4 37 RB4 RA3 5 36 RB3 RA4 6 35 RB2 RA5 7 34 RB1 RE0 8 33 RB0 RE1 9 32 VDD RE2 10
15375 15376
31 VSS V
)F )F
DD 11 30 RD7 VSS 12 29 RD6
C16(L C16(L
RA7 13
PI PI
28 RD5 RA6 14 27 RD4 RC0 15 26 RC7 RC1 16 25 RC6 RC2 17 24 RC5 RC3 18 23 RC4 RD0 19 22 RD3 RD1 21 RD2 20
Note:
See Table 6 for location of all peripheral functions. DS40001835A-page 6
